Attributes
| Group Code | 4SG-600 |
|---|---|
| Product Type | backflow-preventer |
| Brand Series | apollo-4sg-series-backflow-preventers |
| Applications | non-potable water |
| Approvals | CSA B356, FM, UL |
| Solutions | fire protection, utility |
Description
The Apollo® Model DCDA4SG Double Check Detector Assembly is designed to prevent contamination of the potable water supply due to back-siphonageor backpressure from substances that are non-health hazards. The device consists of a mainline double check valve with a by-pass line. The by-pass consistsof a water meter and an approved Apollo® double-check valve with Apollo® ball valves as shutoffs. The by-pass serves to measure water use of up to 3 gpm.Grooved connections on an epoxy-coated ductile iron body allow for easy connection to butterfly valves or gate valves. Note: Model DCDA4SG replacesModel 4S-600 (also known as Model DCDA) in all sizes except 10”.
- lightweight
- short lay length
- low pressure loss
- modular check valves
- individual access to check valves
- corrosion resistant epoxy-coated ductile iron body
- US patents: #5,711,341 and #6,343,618
- assembled and tested in the USA
Variations (1)
4SG60EG8U
| size | 8" |
|---|---|

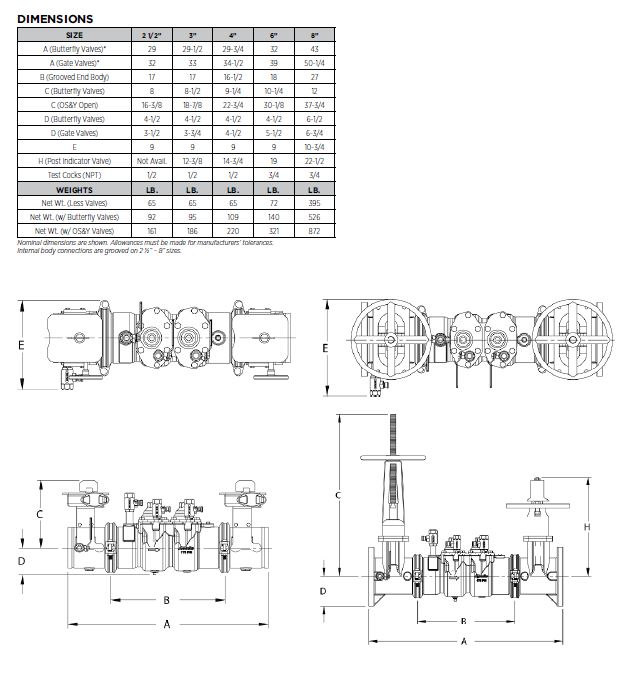

| dimensions | - |
| weight | 811 lb |
| packaging | Carton (1 pce) |
Specifications
| article | 4SG-600 |
|---|---|
| article number with gtin | 4SG-600 (00670750203190) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 8" |
| weight | 811 lb |
| materials | cast iron |
| finishing | none |
| product group | valves (backflow preventers) |
| ETIM class | EC011469 Check valve |
| country of origin | United States |
| brand | Apollo |
| series | 4SG Series Backflow Preventers |
| product type | 4SG60XG8U |
| ETIM | {"etim-class":"EC011469 Check valve","Housing material":"Cast iron","Surface protection":"Untreated","Height":"","Height (imperial)":"","FM quality mark":"Yes","UL quality mark":"Yes","ULC quality mark":"No","LPCB quality mark":"No","Suitable for central heating water":"No","Certified according to SVGW for water":"No","Certified according to SVGW for gas":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
PDF Documents
[Datasheet] 4SG-600 Submittal Sheet
Open PDF
