Attributes
| Group Code | LC149002 |
|---|---|
| Product Type | vlinderklep |
| Brand Series | apollo-lc149-series-butterfly-valves |
| Applications | potable water, heating, cooling |
| Approvals | CRN, NSF |
| Solutions | utility, industry |
Description
The Apollo International® LC149 Series Cast Iron Butterfly Valves are ideal for use in Industrial and Commercial/HVAC/Mechanical applications. The LC149 Series is a lug style valve designed to be economical yet have high pressure capabilities. Available in sizes 2” - 12”.
- Compatible with ASNI 125# & 150# Flanges
- ISO 5211 Top Plate Allows Choice of Apollo Pneumatic Actuators and Manual Operators
- "Double-D' Stem Design
- Conforms to MSS SP-67 & API 609
- Extended Neck for up to 2" of Insulation
- Suitable for bi-directional dead-end service to full rated pressure
Variations (3)
LC149082

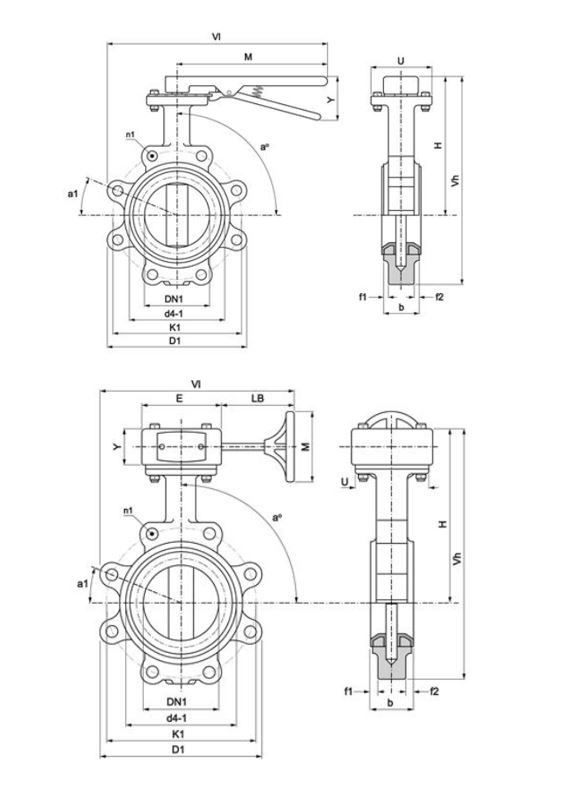

| size | 8" |
|---|---|
| dimensions | - |
| weight | 71 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
LC149102
| size | 10" |
|---|---|
| dimensions | - |
| weight | 94 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
LC149122
| size | 12" |
|---|---|
| dimensions | - |
| weight | 129 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
Specifications
| article | Apollo International Cast Iron Contractor Butterfly Valve with Gear Operator (2 x Lug Type) |
|---|---|
| article number with gtin | LC149002 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 129 lb |
| color | black, green |
| materials | cast iron (ASTM A126 Grade B) |
| finishing | none |
| connection type | lug type |
| max operating pressure liquid | 200 psi |
| product group | valves (butterfly valves) |
| ETIM class | EC010910 Butterfly valve |
| country of origin | China |
| brand | Apollo |
| series | LC149 Series Butterfly Valves |
| product type | LC149002 |
| unsps | 40141619 |
| ETIM | {"etim-class":"EC010910 Butterfly valve","Housing material":"Cast iron","Surface protection":"Untreated","Connections":"Lug type (expired)","Material spindle":"Stainless steel","Material primary spindle seal":"Ethylene-propylene diene monomer rubber (EPDM)","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","VdS quality mark":"No","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"} |
