Apollo 36 Series Pressure Reducing Valves

Apollo Water Pressure Reducing Valves with Gauge - Direct Acting (Single Union FNPT x FNPT)

Scraped SKU: 361GX00 2026-06-05 04:31:47

Attributes

Group Code361GX00
Product Typepressure-reducing-valve
Brand Seriesapollo-36-series-pressure-reducing-valves
Applicationsnon-potable water
ApprovalsASSE 1003, Build America Buy America (BABA) Act, Buy American Act (BAA), CSA B356, Made in USA
Solutionsutility, industry

Description

Apollo Valves 36 Series Water Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.
  • Corrosion Resistant Bronze Body and Bonnet
  • 100% Factory Tested, Preset to 50 psi (-01)
  • Control Pressure Ranges:
    • 10-35 psig, 25-75 psig (standard), 75-125 psig
  • Integral SS Strainer
  • Balanced Piston Design
  • Internal Thermal Expansion Bypass
  • Single Union FNPT x FNPT Connection
  • Pressure Gauge
  • 100% Manufactured in USA

Variations (11)

36103G1

size1/2"
dimensions4.88x2.75x6.25 "
weight3.5 lb
packagingCarton (1 pce)

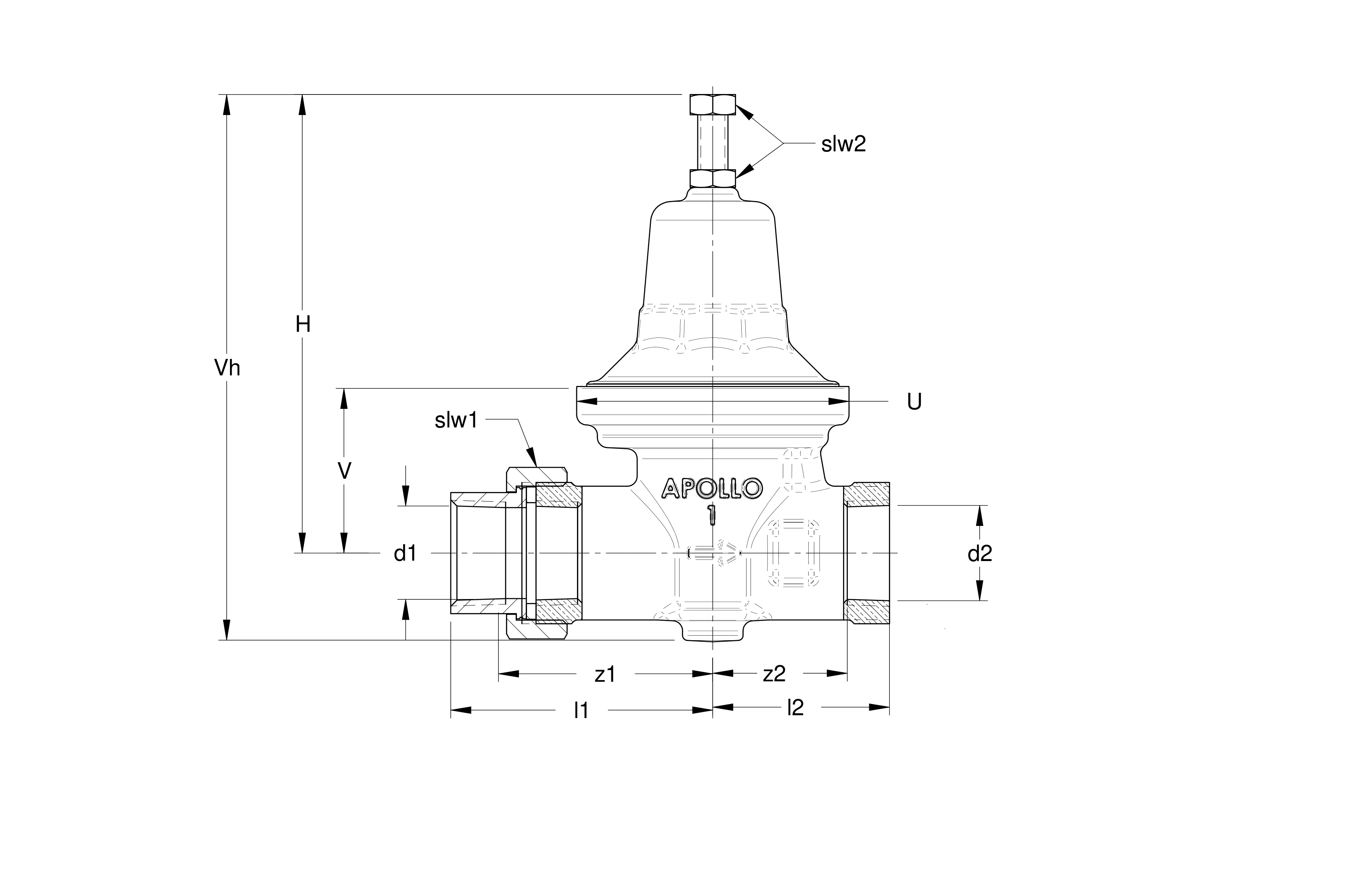

d10.84
DN1-
l12.90
z12.28
slw11.68
d20.84
DN2-
l21.97
z21.51
slw20.56
H4.87
V1.94
U2.75
a-

36103G2

size1/2"
dimensions4.88x2.75x6.25 "
weight3.5 lb
packagingCarton (1 pce)
d10.84
DN1-
l12.90
z12.28
slw11.68
d20.84
DN2-
l21.97
z21.51
slw20.56
H4.87
V1.94
U2.75
a-

36103G3

size1/2"
dimensions4.88x2.75x6.25 "
weight3.5 lb
packagingCarton (1 pce)
d10.84
DN1-
l12.90
z12.28
slw11.68
d20.84
DN2-
l21.97
z21.51
slw20.56
H4.87
V1.94
U2.75
a-

36105G1

size1"
dimensions-
weight4.5 lb
packagingCarton (1 pce)
d11.32
DN1-
l1-
z1-
slw1-
d21.32
DN2-
l2-
z2-
slw2-
H-
V-
U-
a-

36105G2

size1"
dimensions-
weight4.5 lb
packagingCarton (1 pce)
d11.32
DN1-
l1-
z1-
slw1-
d21.32
DN2-
l2-
z2-
slw2-
H-
V-
U-
a-

36106G1

size1-1/4"
dimensions-
weight10.2 lb
packagingCarton (1 pce)
d11.66
DN1-
l1-
z1-
slw1-
d21.66
DN2-
l2-
z2-
slw2-
H-
V-
U-
a-

36107G1

size1-1/2"
dimensions-
weight10.45 lb
packagingCarton (1 pce)
d11.90
DN1-
l1-
z1-
slw1-
d21.90
DN2-
l2-
z2-
slw2-
H-
V-
U-
a-

36107G2

size1-1/2"
dimensions-
weight10.45 lb
packagingCarton (1 pce)
d11.90
DN1-
l1-
z1-
slw1-
d21.90
DN2-
l2-
z2-
slw2-
H-
V-
U-
a-

36107G3

size1-1/2"
dimensions-
weight10.45 lb
packagingCarton (1 pce)
d11.90
DN1-
l1-
z1-
slw1-
d21.90
DN2-
l2-
z2-
slw2-
H-
V-
U-
a-

36108G1

size2"
dimensions-
weight22.5 lb
packagingCarton (1 pce)
d12.38
DN1-
l1-
z1-
slw1-
d22.38
DN2-
l2-
z2-
slw2-
H-
V-
U-
a-

36108G3

size2"
dimensions-
weight22.5 lb
packagingCarton (1 pce)
d12.38
DN1-
l1-
z1-
slw1-
d22.38
DN2-
l2-
z2-
slw2-
H-
V-
U-
a-

Specifications

articleApollo Water Pressure Reducing Valves with Gauge - Direct Acting (Single Union FNPT x FNPT)
article number with gtin361GX00
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight22.5 lb
coloryellow, bronze
materialsbronze (ASTM B584-C84400)
finishingnone
shapestraight
connection typeFPT - female thread conical (NPT)
sealingEPDM
max operating pressure liquid300 psi
peak medium temperature180 °F
product groupvalves (pressure reducing valves)
ETIM classEC010122 Pressure reducing valve
country of originUnited States
brandApollo
series36 Series Pressure Reducing Valves
product type361GX00
unsps40141652
ETIM
{"etim-class":"EC010122 Pressure reducing valve","Housing material":"Bronze","Surface protection":"Untreated","Connection 1":"Internal thread conical (NPT)","With coupling connection 1":"Yes","Connection 2":"Internal thread conical (NPT)","With coupling connection 2":"No","Max. inlet pressure":"20.67bar","Max. inlet pressure (imperial)":"300psi","Sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With pressure gauge":"Yes","Suitable for liquids":"No","Suitable for steam":"No","Suitable for gases":"No","Spindle angle":"90°","Spindle angle (imperial)":"3.54\""}

PDF Documents

[Datasheet] 36-100 Data Sheet Open PDF
[Certificate] Conbraco_Certification_CSA Open PDF
