Attributes
| Group Code | 3620X00PR |
|---|---|
| Product Type | pressure-reducing-valve |
| Brand Series | apollo-36-series-pressure-reducing-valves |
| Applications | non-potable water |
| Approvals | ASSE 1003, Build America Buy America (BABA) Act, Buy American Act (BAA), CSA B356, Made in USA |
| Solutions | utility, industry |
Description
Apollo Valves 36 Series Water Pressure Reducing Valves are designed to protect residential and commercial water distribution systems by controlling excessive pressures. The valves are built for long reliable service with proven ASTM grade materials including a bronze body and stainless steel strainer.
- Corrosion Resistant Bronze Body and Bonnet
- 100% Factory Tested, Preset to 50 psig (-01)
- Control Pressure Ranges:
- 10-35 psig, 25-75 psig (standard), 75-125 psig
- Integral SS Strainer
- Balanced Piston Design
- Internal Thermal Expansion Bypass
- FNPT x FNPT Connection
- 100% Manufactured in USA
Variations (2)

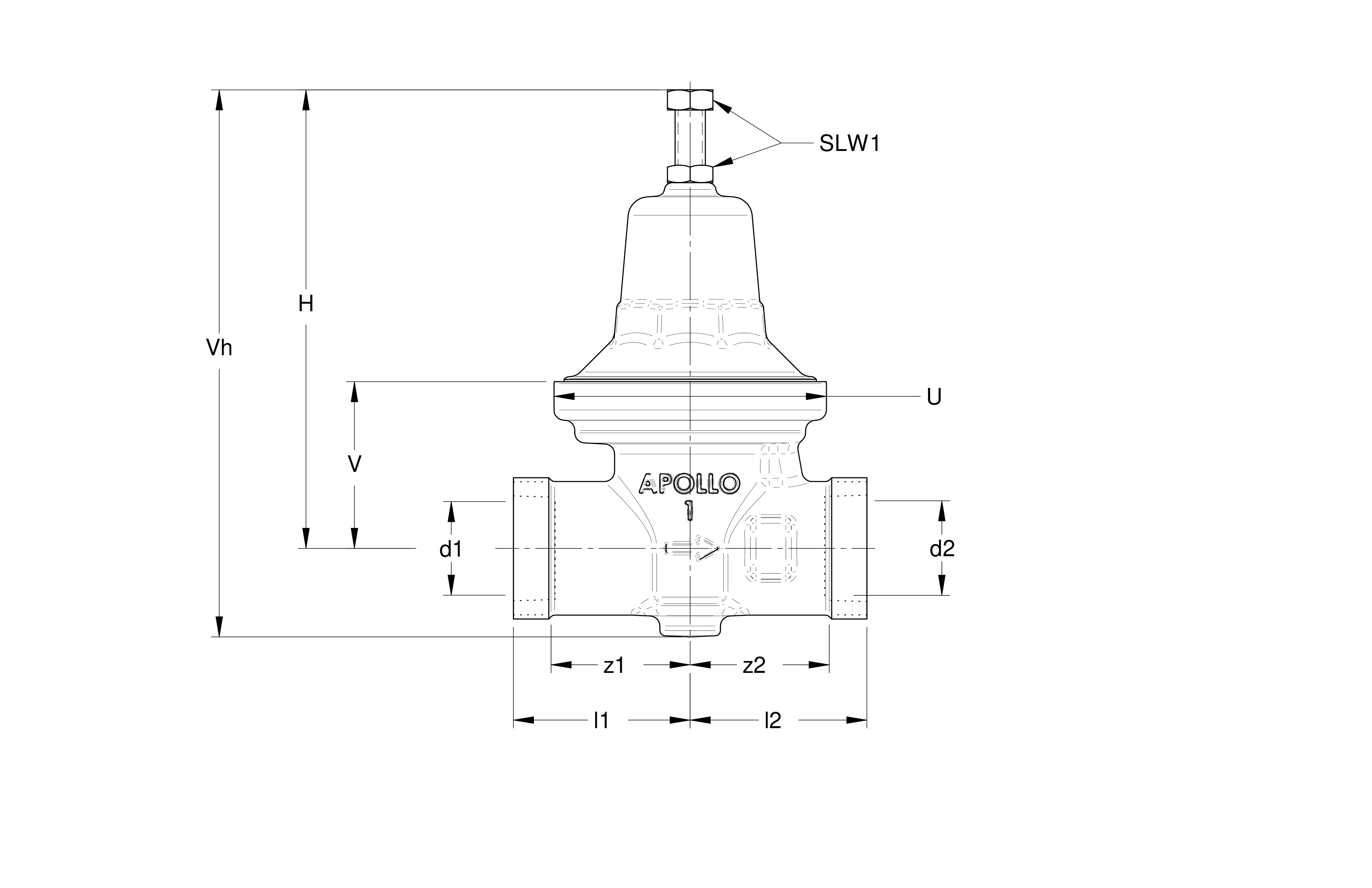

3620301PR
| size | 1/2" |
|---|---|
| dimensions | 5.53x2.75x5.88 " |
| weight | 3.3 lb |
| packaging | - |
| d1 | 0.63 |
| DN1 | - |
| d2 | 0.63 |
| DN2 | - |
| H | 4.87 |
| V | 1.94 |
| U | 2.75 |
3620701PR
| size | 1-1/2" |
|---|---|
| dimensions | 8.62x4.00x8.88 " |
| weight | 9.09 lb |
| packaging | - |
| d1 | 1.63 |
| DN1 | - |
| d2 | 1.63 |
| DN2 | - |
| H | - |
| V | - |
| U | - |
Specifications
| article | Apollo Water Pressure Reducing Valves - Direct Acting (2 x Press) |
|---|---|
| article number with gtin | 3620X00PR |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 9.09 lb |
| dimensions | 8.62x4.00x8.88 " |
| color | yellow, bronze |
| materials | bronze (ASTM B584-C84400) |
| finishing | none |
| shape | straight |
| connection type | press |
| sealing | EPDM |
| max operating pressure liquid | 250 psi |
| min. medium temperature | 33 °F |
| max medium temperature | 180 °F |
| peak medium temperature | 180 °F |
| product group | valves (pressure reducing valves) |
| ETIM class | EC010122 Pressure reducing valve |
| brand | Apollo |
| series | 36 Series Pressure Reducing Valves |
| product type | 3620X00PR |
| unsps | 40141652 |
| ETIM | {"etim-class":"EC010122 Pressure reducing valve","Housing material":"Bronze","Surface protection":"Untreated","Connection 1":"Press sleeve","With coupling connection 1":"No","Connection 2":"Press sleeve","With coupling connection 2":"No","Max. inlet pressure":"17.23bar","Max. inlet pressure (imperial)":"250psi","Sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With pressure gauge":"No","Suitable for liquids":"No","Suitable for steam":"No","Suitable for gases":"No"} |
