Attributes
| Group Code | 36E1PX00T |
|---|---|
| Product Type | pressure-reducing-valve |
| Brand Series | apollo-36-series-pressure-reducing-valves |
| Applications | heating, cooling |
| Approvals | ASSE 1003, Build America Buy America (BABA) Act, Buy American Act (BAA), CSA B356, Made in USA |
| Solutions | utility, industry |
Description
The Apollo 36E series Pressure Reducing Valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. Ideal for industrial and irrigation applications. The dezincification resistant bronze body and dielectric polymer cage provide maximum corrosion resistance. Designed for easy in-line servicing with simple cartridge removal.
- Balanced Piston Design
- SS Adjusting Screw & Nut
- Sealed Cage for Vault Installations
- Built-in Thermal Expansion Bypass
- Large Area Integral Stainless-Steel Strainer
- Modular Seat Disc and Strainer Cartridge
- Bronze Cap
- Control Pressure Ranges:
- 15-75 psi and 75-150 psi
- High Flow / High Efficiency Design
- 100% Manufactured in USA – ARRA Compliant
Variations (2)
36E108P1T
| size | 2" |
|---|---|
| dimensions | 5.50x3.38x10.00 " |
| weight | 5.6 lb |
| packaging | Carton (1 pce) |

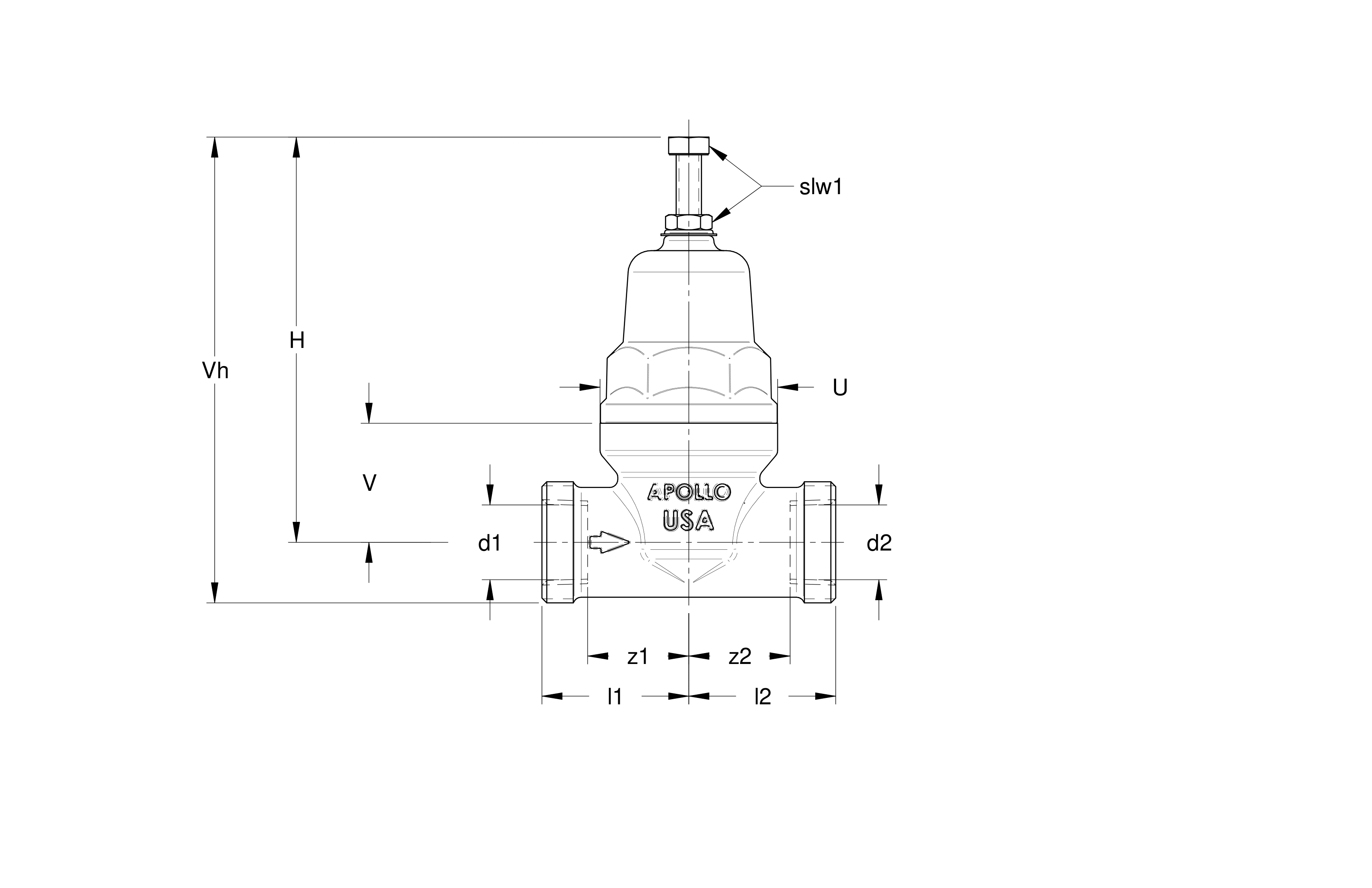

| d1 | 2.38 |
| DN1 | - |
| d2 | 2.38 |
| DN2 | - |
36E108G1T
| size | 2" |
|---|---|
| dimensions | - |
| weight | 5.6 lb |
| packaging | - |
| d1 | - |
| DN1 | - |
| d2 | - |
| DN2 | - |
Specifications
| article | Apollo Direct Acting Water Pressure Reducing Valves Tapped with Plug (2 x FNPT) |
|---|---|
| article number with gtin | 36E1PX00T |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 2" |
| weight | 5.6 lb |
| color | bronze, yellow |
| materials | bronze (ASTM B584-C84400) |
| finishing | none |
| shape | straight |
| connection type | FPT - female thread conical (NPT) |
| min. medium temperature | 33 °F |
| peak medium temperature | 180 °F |
| product group | valves (pressure reducing valves) |
| ETIM class | EC010122 Pressure reducing valve |
| brand | Apollo |
| series | 36 Series Pressure Reducing Valves |
| product type | 36E1PX00T |
| unsps | 40141652 |
| ETIM | {"etim-class":"EC010122 Pressure reducing valve","Housing material":"Bronze","Surface protection":"Untreated","Connection 1":"Internal thread conical (NPT)","Connection 2":"Internal thread conical (NPT)","Suitable for liquids":"Yes","Suitable for steam":"No","Suitable for gases":"No"} |
