Attributes
| Group Code | 36H70X00 |
|---|---|
| Product Type | pressure-reducing-valve |
| Brand Series | apollo-36-series-pressure-reducing-valves |
| Applications | heating, cooling |
| Approvals | ASSE 1003, Build America Buy America (BABA) Act, Buy American Act (BAA), CSA B356, Made in USA |
| Solutions | utility, industry |
Description
The Apollo 36H Pressure Reducing Valves are designed for commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valves are made with proven ASTM grade bronze and stainless steel materials. The PRH provides high capacity flow with low pressure drop. It is designed with an integral by-pass relief to protect against thermal expansion downstream. The bottom access enables easy in-line cleaning or seat replacement. Not for use with potable water systems.
- Sealed Spring Cage for Vault Installation
- Ultra-High Flow Capacity
- Internal Thermal Expansion Bypass
- Local Code Approvals
- Standard Factory Setting: 50 psi
- Three spring ranges cover 10-125 psi
- Stainless Steel Bolts and Spring
- 150# ANSI B16.24 Flange Connection
- 100% Made in the USA
Variations (6)
36H70901
| size | 2-1/2" |
|---|---|
| dimensions | 10.37x7.63x16.00 " |
| weight | 55 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 5.5 |
| d2-2 | 0.75 |
| D2 | 7 |
36H70902
| size | 2-1/2" |
|---|---|
| dimensions | 10.37x7.63x16.00 " |
| weight | 55 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 5.5 |
| d2-2 | 0.75 |
| D2 | 7 |
36H70903
| size | 2-1/2" |
|---|---|
| dimensions | 10.37x7.63x16.00 " |
| weight | 55 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 5.5 |
| d2-2 | 0.75 |
| D2 | 7 |
36H70001
| size | 3" |
|---|---|
| dimensions | 12.50x9.75x19.12 " |
| weight | 104 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 6 |
| d2-2 | 0.75 |
| D2 | 7.5 |
36H70002
| size | 3" |
|---|---|
| dimensions | 12.50x9.75x19.12 " |
| weight | 104 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 6 |
| d2-2 | 0.75 |
| D2 | 7.5 |
36H70003
| size | 3" |
|---|---|
| dimensions | 12.50x9.75x19.12 " |
| weight | 104 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 6 |
| d2-2 | 0.75 |
| D2 | 7.5 |

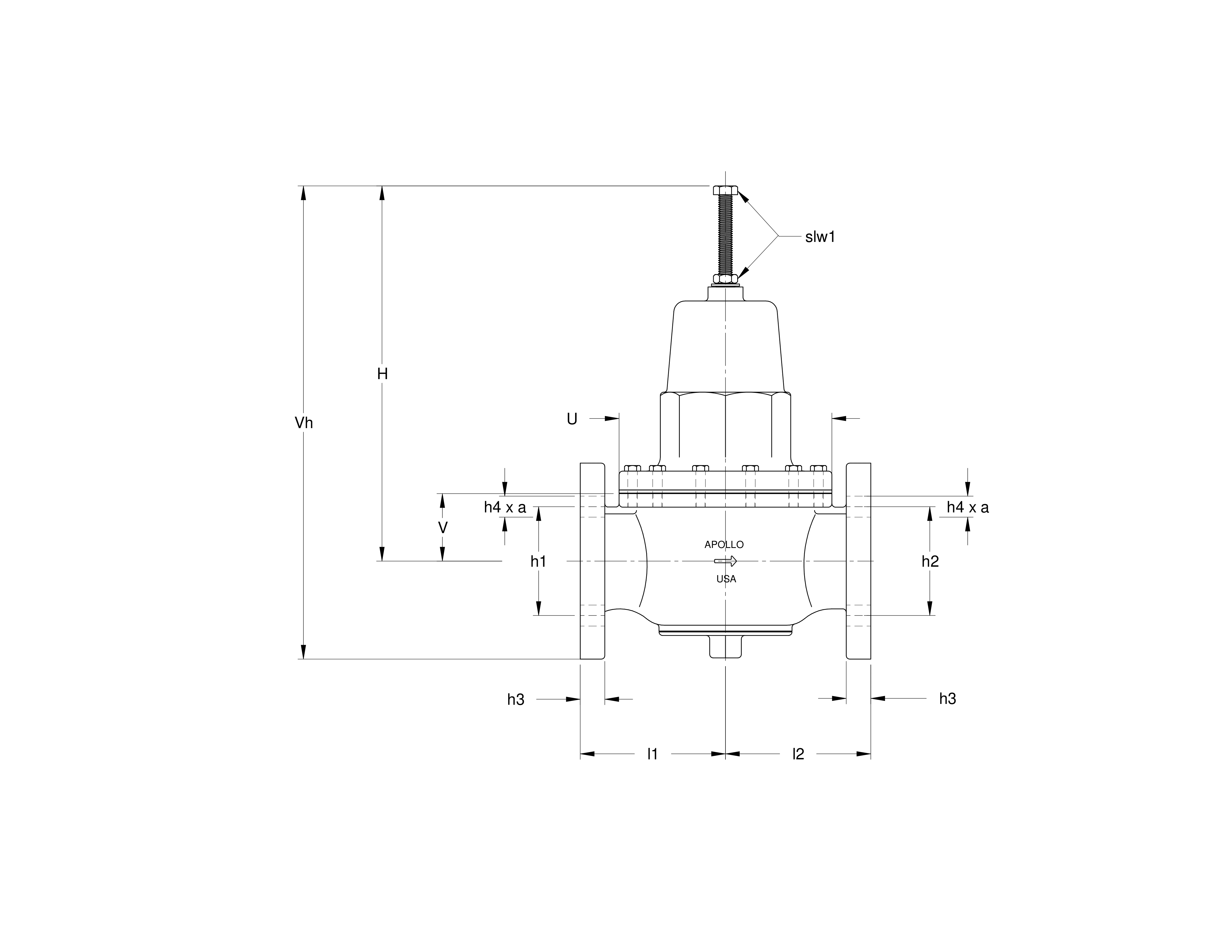

Specifications
| article | Apollo High Capacity Pressure Reducing Valves (2 x Flange) |
|---|---|
| article number with gtin | 36H70X00 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 104 lb |
| dimensions | 12.50x9.75x19.12 " |
| color | bronze, yellow |
| materials | bronze (ASTM B584-C84400) |
| finishing | none |
| shape | straight |
| connection type | flange |
| max operating pressure liquid | 400 psi |
| min. medium temperature | 33 °F |
| max medium temperature | 180 °F |
| peak medium temperature | 180 °F |
| product group | valves (pressure reducing valves) |
| ETIM class | EC010122 Pressure reducing valve |
| country of origin | United States |
| brand | Apollo |
| series | 36 Series Pressure Reducing Valves |
| product type | 36H70X00 |
| unsps | 40141652 |
| ETIM | {"etim-class":"EC010122 Pressure reducing valve","Housing material":"Bronze","Surface protection":"Untreated","Connection 1":"Flange","Connection 2":"Flange","Max. inlet pressure":"27.56bar","Max. inlet pressure (imperial)":"400psi","With pressure gauge":"No","Suitable for liquids":"Yes","Suitable for steam":"No","Suitable for gases":"No"} |
