Attributes
| Group Code | 3560XBFTT |
|---|---|
| Product Type | pressure-reducing-valve |
| Brand Series | apollo-35-series-faucets |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
Description
The Apollo® Model FFB Combination Backflow Preventer and Fast Fill Pressure Regulator is designed to protect residential and commercial potable water supply lines from back-siphonage or backpressure on Hot Water Heating Boilers. An intermediate atmospheric vent ensures positive protection from backflow conditions. The pressure regulator provides boiler make up water at the desired pressure and includes a purge/quick fill feature.
- All Brass/Bronze Construction
- Designed for continuous pressure
- Independently acting check valves
- In-line replaceable cartridge
- Purge lever / high capacity fast fill feature
- No steel cage screws
- Factory pre-set at 15 psig - Adjustable 10 to 25 psig
- Untapped vent port option (-C)
Variations (1)
35603BFTT
| size | 1/2" |
|---|---|
| dimensions | - |
| weight | 2.25 lb |
| packaging | - |
Specifications
| article | Apollo Backflow Preventor with Feedwater Regulator (Union FNPT x FNPT) |
|---|---|
| article number with gtin | 3560XBFTT (00670750493102) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1/2" |
| weight | 2.25 lb |
| materials | bronze (ASTM B584-C84400) |
| finishing | none |
| product group | valves (pressure reducing valves) |
| brand | Apollo |
| series | 35 Series Faucets |
| product type | 3560XBFTT |
PDF Documents

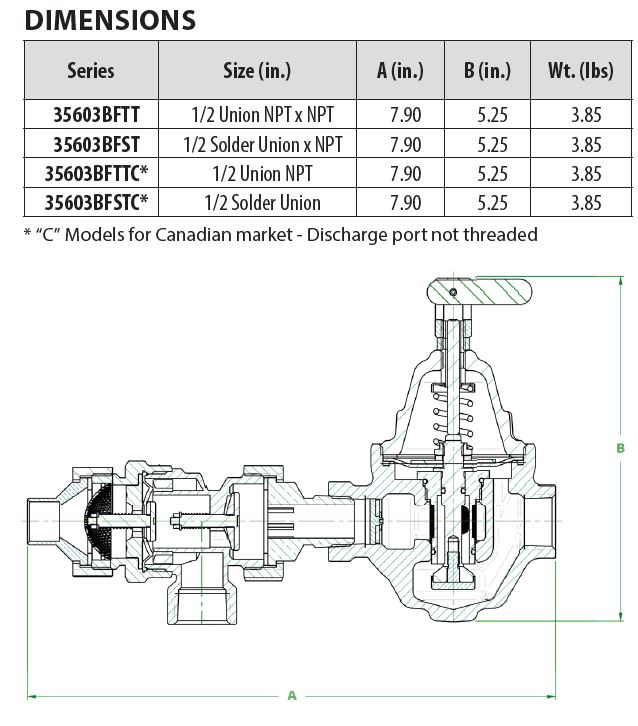

[Datasheet] 35-600 Submittal Sheet
Open PDF
