Attributes
| Group Code | T1 |
|---|---|
| Product Type | demontabel |
| Brand Series | apollo-tectite-us |
| Applications | potable water, heating |
| Solutions | utility |
Description
The VSH Tectite Classic T1 is a straight coupling with 2 push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.
- demountable
- no heat work required
- fast insulation
- provided with all relevant approvals
Variations (2)
FSBC12
| size | - |
|---|---|
| dimensions | - |
| weight | 0.07 lb |
| packaging | - |

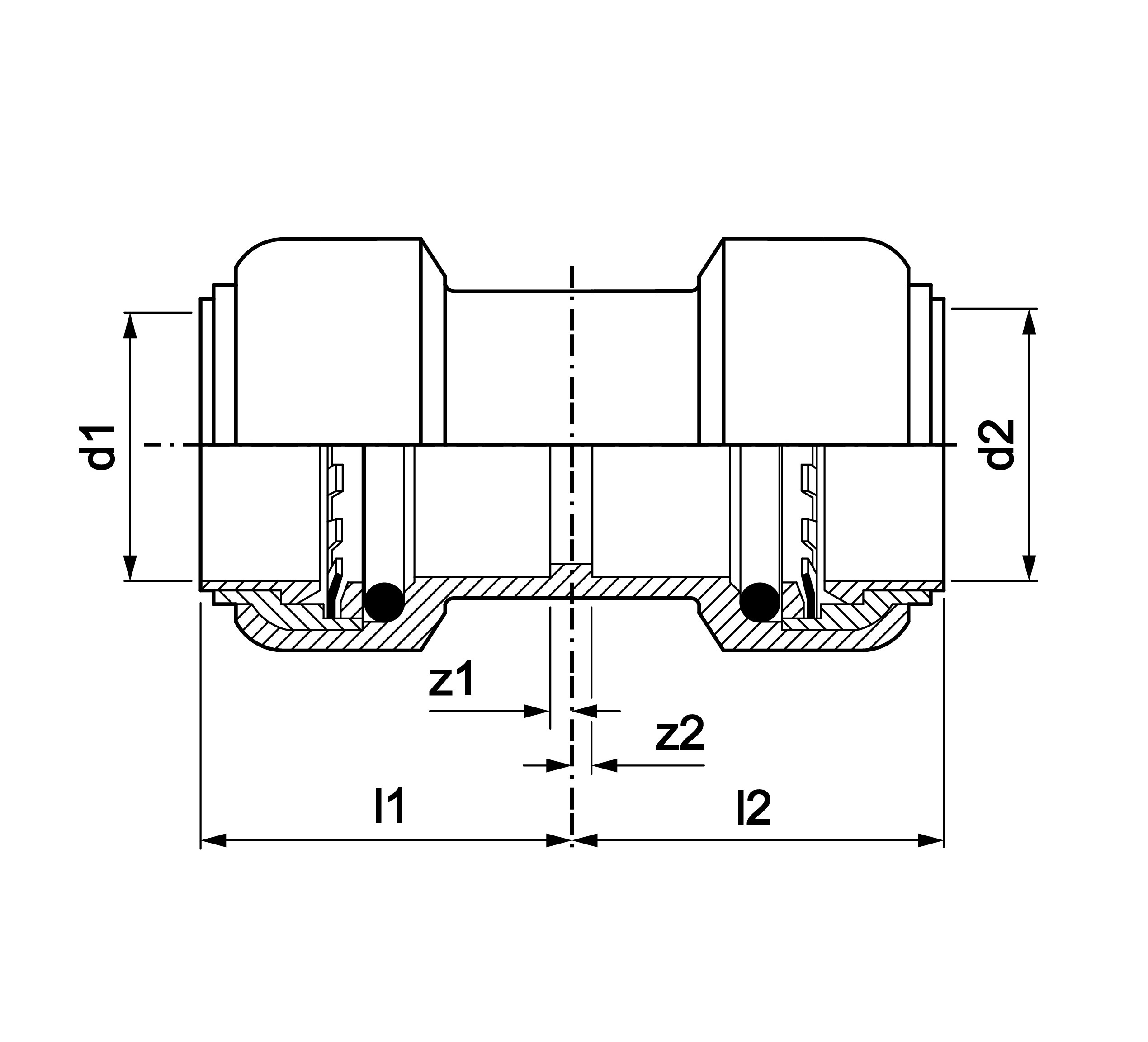

| d2 | 1.18 |
| DN2 | - |
FSBC34
| size | - |
|---|---|
| dimensions | - |
| weight | 0.14 lb |
| packaging | - |
| d2 | 0.84 |
| DN2 | - |
Specifications
| article | VSH Tectite Classic straight coupling (2 x push) |
|---|---|
| article number with gtin | T1 |
| manufacturer | Aalberts integrated piping systems Ltd (Pegler) |
| weight | 0.14 lb |
| color | brass |
| materials | brass (CW511L (lead-free)) |
| finishing | none |
| shape | straight, reducer |
| connection type | push |
| pressure rating (PN) | PN 16 |
| sealing | EPDM |
| max operating pressure liquid | 232 psi |
| min. medium temperature | -11 °F |
| max medium temperature | 203 °F |
| peak medium temperature | 203 °F |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Netherlands |
| brand | Apollo |
| series | Tectite US |
| product type | T1 |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Brass","Material quality connection 1":"CuZn38As (CW511L)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Brass","Material quality connection 2":"CuZn38As (CW511L)","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"No","System specific":"No","Connection 1":"Insert (push-fitting)","Connection 2":"Insert (push-fitting)","Main colour fitting":"Brass","Flange compression class (PN)":"PN 16","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"No","Length":"","Length (imperial)":"","Medium temperature (continuous)":"-24°C - 95°C","Medium temperature (continuous) (imperial)":"-11.2°F - 203°F","Max. operating pressure at 20 °C":"16bar","Max. operating pressure at 20 °C (imperial)":"232.06psi","With sealing rings/gaskets":"No","Capped":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
PDF Documents
[Installation- & Maintenance Document] VSH Tectite installation instructions
Open PDF
