VSH Tectite Classic elbow 90° (2 x push)

Scraped SKU: T12 2026-06-05 04:32:12

Attributes

Group CodeT12
Product Typedemontabel
Brand Seriesapollo-tectite-us
Applicationspotable water, heating
Solutionsutility

Description

The VSH Tectite Classic T12 is a 90° elbow with two push fit ends. By using VSH Tectite you are using a world class push fitting with unique technology. VSH Tectite provides a piping suitable for domestic and light commercial applications.

  • demountable
  • no heat work required
  • fast insulation
  • provided with all relevant approvals

Variations (2)

FSBE12

size-
dimensions-
weight0.12 lb
packaging-

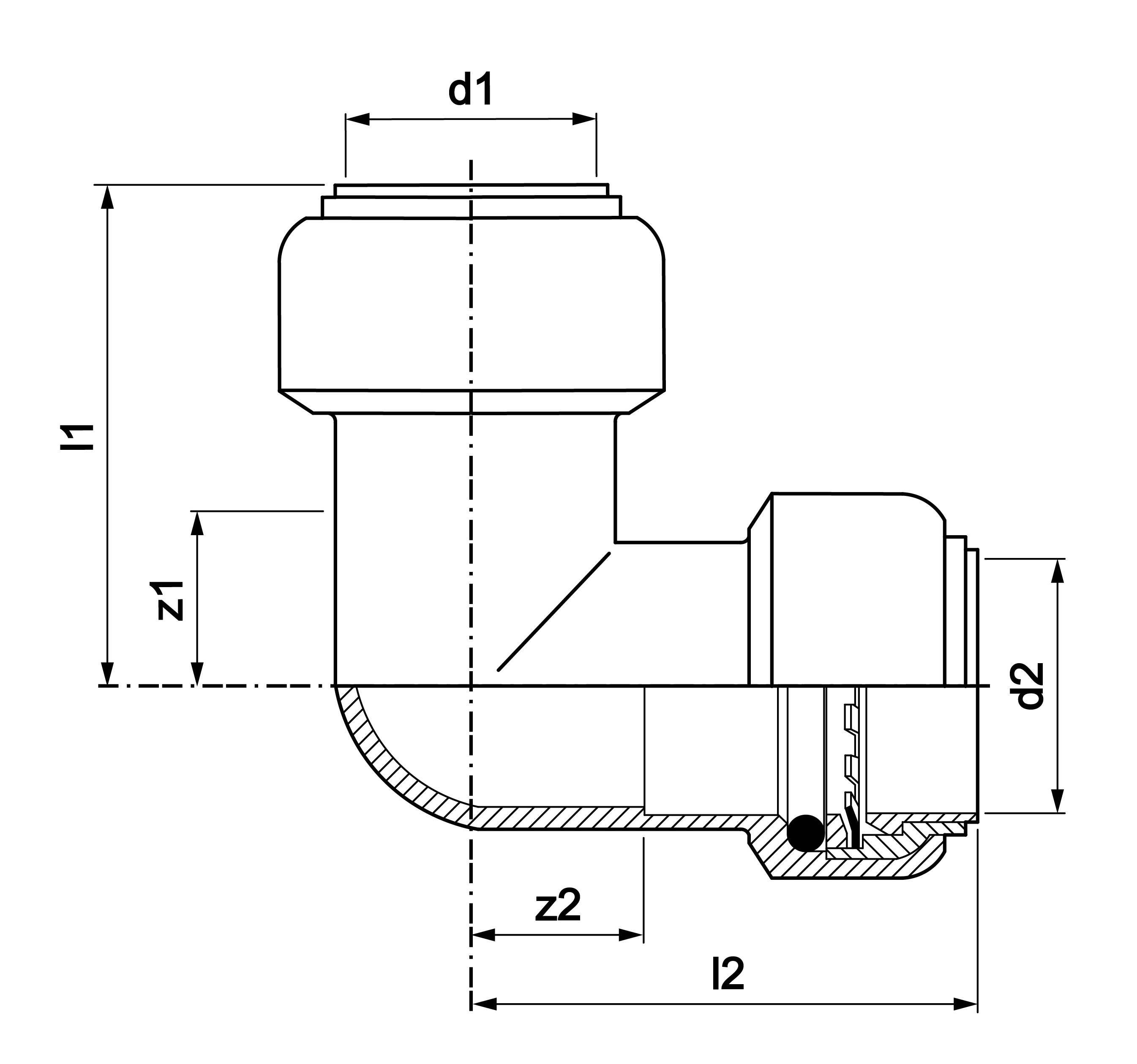

d21.18

FSBE34

size-
dimensions-
weight0.15 lb
packaging-
d21.67

Specifications

articleVSH Tectite Classic elbow 90° (2 x push)
article number with gtinT12
manufacturerAalberts integrated piping systems Ltd (Pegler)
weight0.15 lb
colorbrass
materialsbrass (CW511L (lead-free))
finishingnone
shapeElbow
connection typepush
pressure rating (PN)PN 16
sealingEPDM
max operating pressure liquid232 psi
min. medium temperature-11 °F
max medium temperature203 °F
peak medium temperature203 °F
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originNetherlands
brandApollo
seriesTectite US
product typeT12
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Brass","Material quality connection 1":"CuZn38As (CW511L)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Brass","Material quality connection 2":"CuZn38As (CW511L)","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Bend","Model":"1-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Insert (push-fitting)","Connection 2":"Insert (push-fitting)","Main colour fitting":"Brass","Flange compression class (PN)":"PN 16","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"No","Length":"","Length (imperial)":"","Medium temperature (continuous)":"-24°C - 95°C","Medium temperature (continuous) (imperial)":"-11.2°F - 203°F","Max. operating pressure at 20 °C":"16bar","Max. operating pressure at 20 °C (imperial)":"232.06psi","With sealing rings/gaskets":"No","Capped":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Installation- & Maintenance Document] VSH Tectite installation instructions Open PDF
