Attributes
| Group Code | 6SC10X01LFA |
|---|---|
| Product Type | check-valve |
| Brand Series | apollo-6sc-series-check-valves |
| Applications | potable water, heating, cooling |
| Approvals | NSF |
| Solutions | utility |
Description
The Apollo International Model 910F-LFA Flanged Cast Swing Check Valve provides full flow capabilities. It provides reliable and economical protection against reverse flow. The Model 910F-LFA Swing Check Valve can be reliably installed in plumbing and heating systems (or building service piping). Valves are MSS SP-71 compliant and include NSF lead free certifications.
- Compatible with ANSI 125# & 150# Flanges
- Full Port
- Minimal Pressure Drop
- Flanged Connection
- Bolted Bonnet
- Integral Bronze Seat
- FDA Food Grade Epoxy Powder Coat Finish
Variations (5)
6SC10E01LFA
| size | 8" |
|---|---|
| dimensions | - |
| weight | 271.2 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 11.75 |
| d2-2 | 0.88 |
| D2 | 13.5 |
6SC10G01LFA
| size | 10" |
|---|---|
| dimensions | - |
| weight | 436.5 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 14.25 |
| d2-2 | 1 |
| D2 | 16 |
6SC10H01LFA
| size | 12" |
|---|---|
| dimensions | - |
| weight | 643.7 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 17 |
| d2-2 | 1 |
| D2 | 19 |
6SC10J01LFA
| size | 14" |
|---|---|
| dimensions | - |
| weight | 948 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 18.74 |
| d2-2 | 1.14 |
| D2 | 20.98 |
6SC10K01LFA
| size | 16" |
|---|---|
| dimensions | - |
| weight | 1157.4 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
| n2 | - |
| k2 | 21.24 |
| d2-2 | 1.14 |
| D2 | 23.5 |
Specifications
| article | Apollo International Lead Free Full Port Cast Iron Class 125 Swing Check Valve (2 x Flange) |
|---|---|
| article number with gtin | 6SC10X01LFA |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 1157.4 lb |
| color | black |
| materials | cast iron (ASTM A126 Grade B) |
| finishing | none |
| shape | straight |
| connection type | flange |
| product group | valves (check valves) |
| ETIM class | EC011469 Check valve |
| country of origin | China |
| brand | Apollo |
| series | 6SC Series Check Valves |
| product type | 6SC10X01LFA |
| unsps | 40141634 |
| ETIM | {"etim-class":"EC011469 Check valve","Housing material":"Cast iron","Surface protection":"Untreated","Standard":"ANSI","Connections":"Flange","Height":"","Height (imperial)":"","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Suitable for central heating water":"Yes","Certified according to SVGW for water":"No","Certified according to SVGW for gas":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
PDF Documents

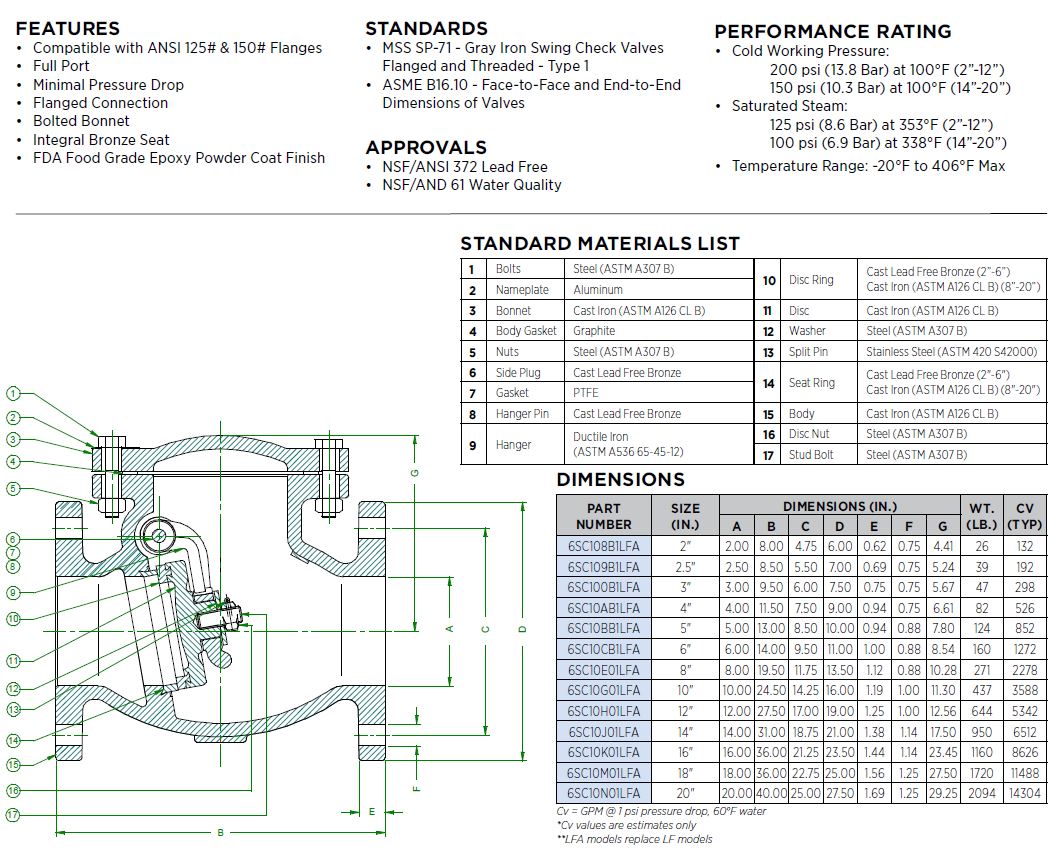

[Datasheet] 910F-LFA Submittal Sheet
Open PDF
