Attributes
| Group Code | 59V0X01 |
|---|---|
| Product Type | strainer |
| Brand Series | apollo-59-series-strainers |
| Applications | heating, cooling, steam |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
| Solutions | utility |
Description
The Apollo 59V Series “Mini” strainers are designed to protect small piping systems and process equipment from unwanted foreign particles. Using provenASTM grade material, the 59V offers in-line flow capabilities with easy bottom entry access for screen removal.
• In-Line Flow Design
• 304 Stainless Steel Screen
• Easy Maintenance
• Compact Design
• Made in USA
• In-Line Flow Design
• 304 Stainless Steel Screen
• Easy Maintenance
• Compact Design
• Made in USA
Variations (2)
59V00001
| size | 1/8" |
|---|---|
| dimensions | - |
| weight | 0.23 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
59V00101
| size | 1/4" |
|---|---|
| dimensions | - |
| weight | 0.3 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
Specifications
| article | Apollo Bronze Mini Wye Strainer with 50 Mesh Screen (2 x FNPT) |
|---|---|
| article number with gtin | 59V0X01 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 0.3 lb |
| color | yellow |
| materials | bronze (ASTM B584) |
| finishing | none |
| shape | Y-piece 45 degrees |
| connection type | FPT - female thread conical (NPT) |
| max operating pressure liquid | 400 psi |
| product group | valves (strainers) |
| ETIM class | EC010151 Pipeline strainer |
| country of origin | United States |
| brand | Apollo |
| series | 59 Series Strainers |
| product type | 59V0X01 |
| unsps | 40142506 |
| ETIM | {"etim-class":"EC010151 Pipeline strainer","Housing material":"Bronze","Surface protection":"Untreated","Connection":"Internal thread conical (NPT)","Max. operating pressure":"27.58bar","Max. operating pressure (imperial)":"400psi","Length":"","Length (imperial)":"","Height":"","Height (imperial)":"","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"} |
PDF Documents

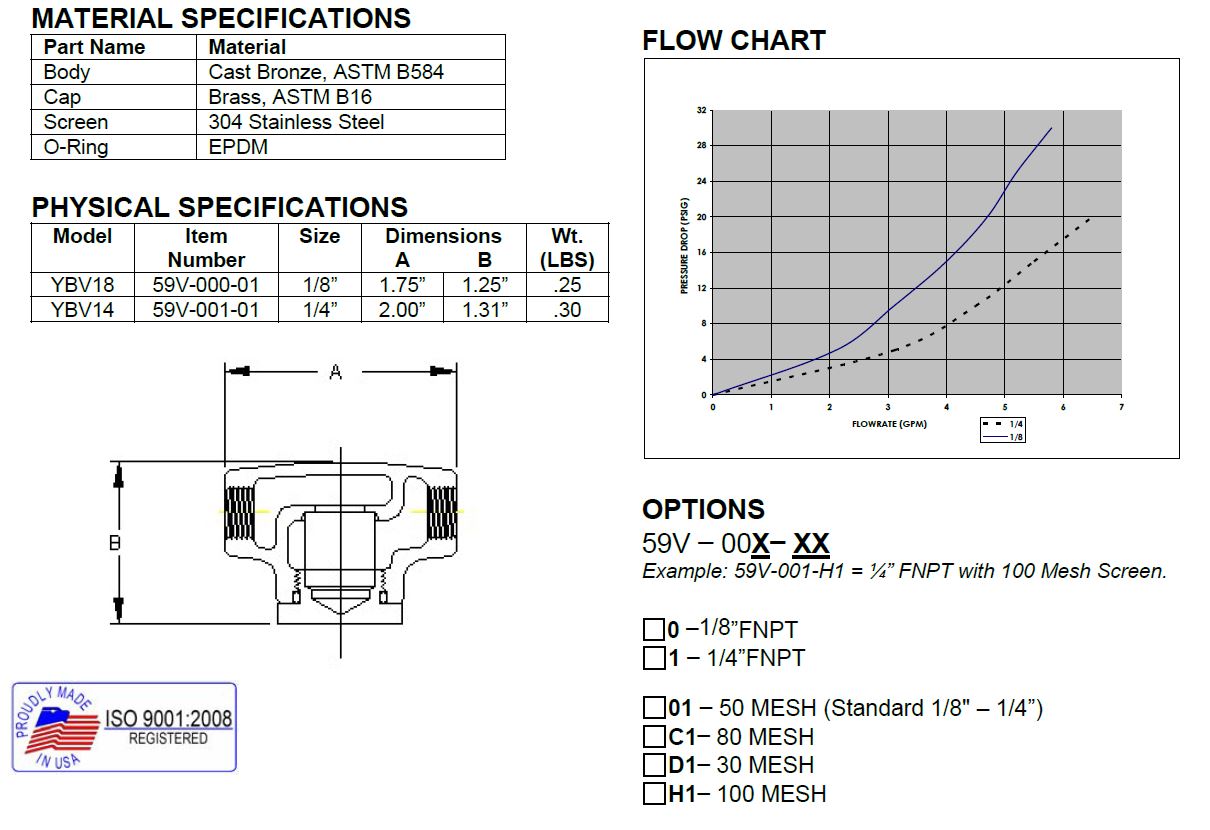

[Datasheet] 59V Submittal Sheet
Open PDF
