Apollo Ycf Series Strainers

Apollo Cast Iron Wye Strainer with Epoxy Coating, .045 Perforated Screen (2 x Flange)

Scraped SKU: YCF2XP045E 2026-06-05 04:32:48

Attributes

Group CodeYCF2XP045E
Product Typestrainer
Brand Seriesapollo-ycf-series-strainers
Applicationsheating, cooling, steam
Solutionsutility

Variations (1)

YCF25P045E

size2-1/2"
dimensions10.75x7.01x11.15 "
weight37.92 lb
packagingCarton (1 pce)
DN1-
DN2-

Specifications

articleApollo Cast Iron Wye Strainer with Epoxy Coating, .045 Perforated Screen (2 x Flange)
article number with gtinYCF2XP045E (00670750415371)
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
size2-1/2"
weight37.92 lb
dimensions10.75x7.01x11.15 "
colorblue
materialscast iron (ASTM A126 Grade B)
finishingnone
shapeY-piece 45 degrees
connection typeflange
max operating pressure liquid200 psi
product groupvalves (strainers)
ETIM classEC010151 Pipeline strainer
country of originChina
brandApollo
seriesYCF Series Strainers
product typeYCF2XP045E
unsps40142505
ETIM
{"etim-class":"EC010151 Pipeline strainer","Housing material":"Cast iron","Surface protection":"Untreated","Nominal diameter":"DN 65","Connection":"Flange","With coupling":"No","Max. operating pressure":"13.79bar","Max. operating pressure (imperial)":"200psi","With drain possibility (connection)":"Yes","Length":"273.05mm","Length (imperial)":"10.75\"","Height":"283.08mm","Height (imperial)":"11.15\"","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

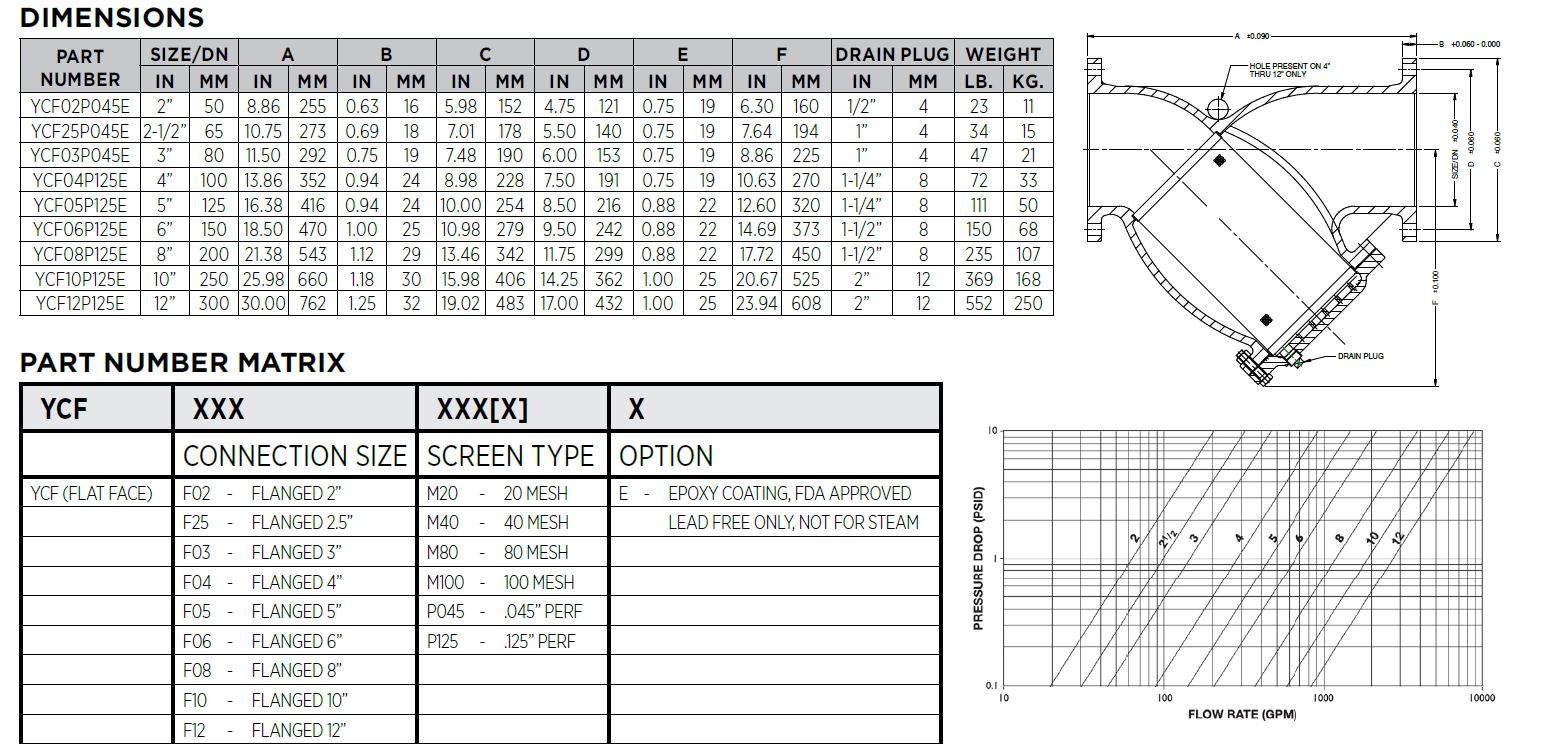

[Datasheet] YCF Submittal Sheet Open PDF
