Attributes
| Group Code | 6120X0A1 |
|---|---|
| Product Type | strainer |
| Brand Series | apollo-ycs-series-strainers |
| Applications | heating, cooling, steam |
| Approvals | CRN |
| Solutions | utility |
Description

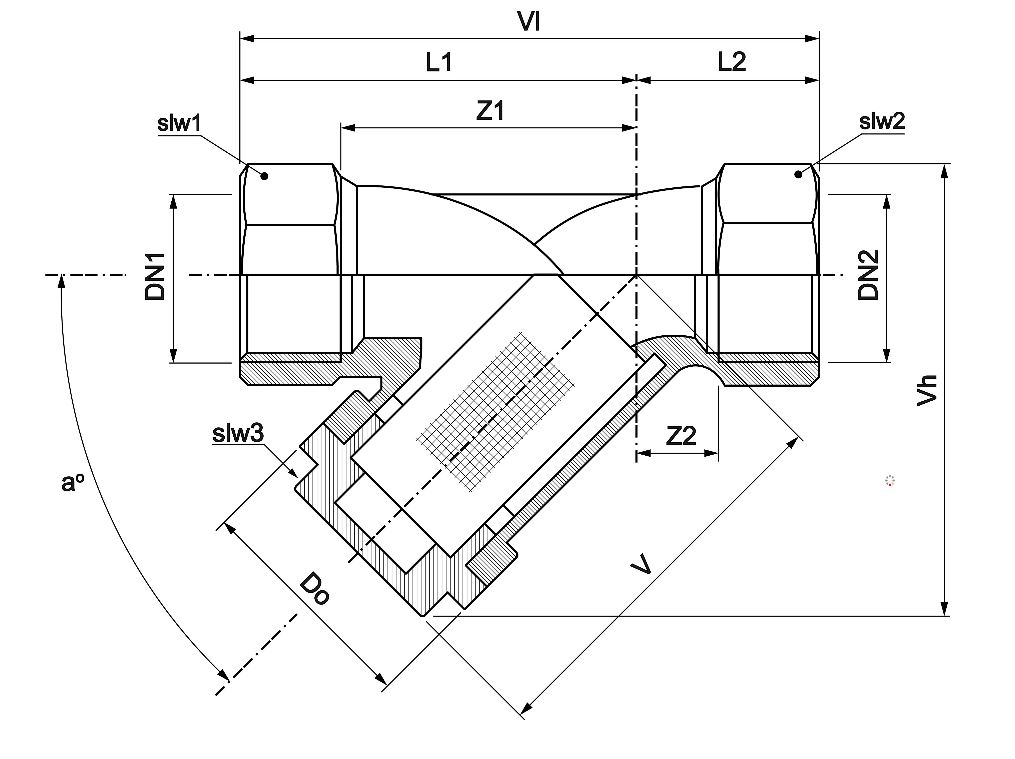

The Apollo® YCS (612) Stainless Steel Wye Strainers are designed with large area screens to protect piping systems and process equipment from unwanted foreign particles with minimum pressure loss.
- Body is ASTM A351 Stainless Steel Grade CF8M
- 20 Mesh Screen
- Gasket 304 SS/Graphite
- Screen Cover is NPT Tapped for Customer Supplied Plug or Blow-Off Valve
Variations (8)
612023A1
| size | 1/2" |
|---|---|
| dimensions | - |
| weight | 1.5 lb |
| packaging | Carton (1 pce) |
612033A1
| size | 1/2" |
|---|---|
| dimensions | - |
| weight | 1.25 lb |
| packaging | Carton (1 pce) |
612024A1
| size | 3/4" |
|---|---|
| dimensions | - |
| weight | 2.5 lb |
| packaging | Carton (1 pce) |
612034A1
| size | 3/4" |
|---|---|
| dimensions | - |
| weight | 2.25 lb |
| packaging | Carton (1 pce) |
612025A1
| size | 1" |
|---|---|
| dimensions | - |
| weight | 4.25 lb |
| packaging | Carton (1 pce) |
612035A1
| size | 1" |
|---|---|
| dimensions | - |
| weight | 4.25 lb |
| packaging | Carton (1 pce) |
612027A1
| size | 1-1/2" |
|---|---|
| dimensions | - |
| weight | 8.85 lb |
| packaging | Carton (1 pce) |
612028A1
| size | 2" |
|---|---|
| dimensions | - |
| weight | 12.5 lb |
| packaging | Carton (1 pce) |
Specifications
| article | Apollo YCS Carbon Steel Wye Strainer with Standard Configuration (2 x FNPT) |
|---|---|
| article number with gtin | 6120X0A1 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 12.5 lb |
| materials | steel, stainless steel |
| shape | Y-piece 45 degrees |
| connection type | FPT - female thread conical (NPT) |
| product group | valves (strainers) |
| ETIM class | EC010151 Pipeline strainer |
| brand | Apollo |
| series | YCS Series Strainers |
| product type | 6120X0A1 |
| unsps | 40142505 |
| ETIM | {"etim-class":"EC010151 Pipeline strainer","Shape":"Pipeline strainer","Connection":"Internal thread conical (NPT)","Length":"","Length (imperial)":"","Height":"","Height (imperial)":"","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"} |
PDF Documents
[Datasheet] YCS Submittal Sheet
Open PDF
