Attributes
| Group Code | 800 |
|---|---|
| Product Type | accessories-fittings |
| Brand Series | apollo-apollopress |
| Applications | potable water, heating, cooling, steam, compressed air, sprinkler, vacuum |
| Approvals | CRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc |
| Solutions | fire protection, utility, industry |
Description
The ApolloPress® 800 Small Diameter Press Coupling features a lead free dezincification resistant copper body and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
- Lead Free Construction
- Leak Before Press® Technology

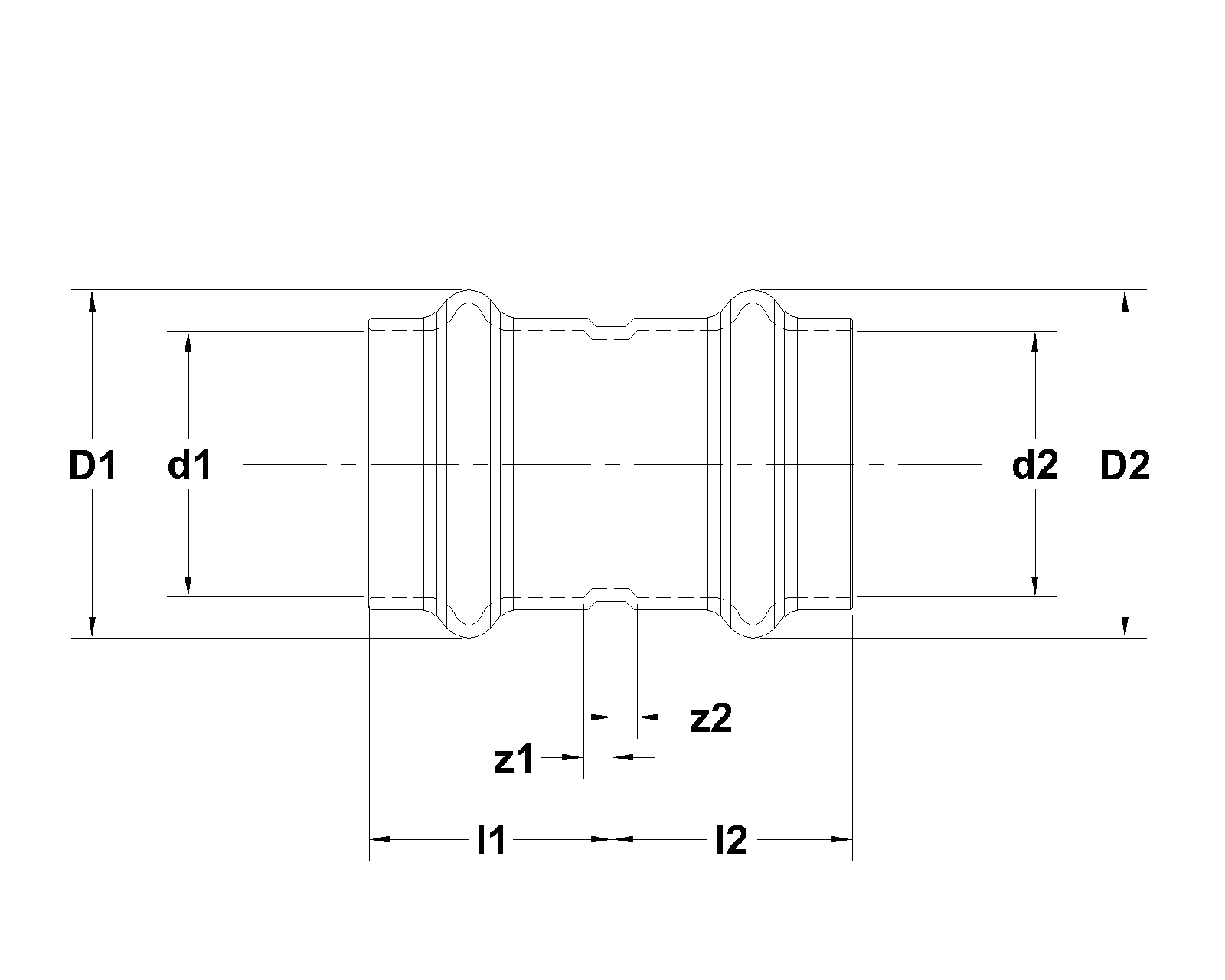

Variations (6)
10075500
| size | 1/2" |
|---|---|
| dimensions | 1.72x0.95x0.95 " |
| weight | 0.08 lb |
| packaging | - |
| d1 | 0.62 |
| DN1 | - |
| l1 | 0.81 |
| z1 | 0.05 |
| d2 | 0.62 |
| DN2 | - |
| l2 | 0.81 |
| z2 | 0.05 |
10075502
| size | 3/4" |
|---|---|
| dimensions | 1.89x1.24x1.24 " |
| weight | 0.13 lb |
| packaging | - |
| d1 | 0.88 |
| DN1 | - |
| l1 | 0.97 |
| z1 | 0.06 |
| d2 | 0.88 |
| DN2 | - |
| l2 | 0.97 |
| z2 | 0.06 |
10075504
| size | 1" |
|---|---|
| dimensions | 2.06x1.49x1.49 " |
| weight | 0.17 lb |
| packaging | - |
| d1 | 1.12 |
| DN1 | - |
| l1 | 0.97 |
| z1 | 0.05 |
| d2 | 1.12 |
| DN2 | - |
| l2 | 0.97 |
| z2 | 0.05 |
10077698
| size | 1 1/4" |
|---|---|
| dimensions | 2.34x1.75x1.75 " |
| weight | 0.25 lb |
| packaging | - |
| d1 | 1.38 |
| DN1 | - |
| l1 | 1.10 |
| z1 | 0.06 |
| d2 | 1.38 |
| DN2 | - |
| l2 | 1.10 |
| z2 | 0.06 |
10077699
| size | 1 1/2" |
|---|---|
| dimensions | 3.10x2.09x2.09 " |
| weight | 0.5 lb |
| packaging | - |
| d1 | 1.62 |
| DN1 | - |
| l1 | 1.50 |
| z1 | 0.07 |
| d2 | 1.62 |
| DN2 | - |
| l2 | 1.50 |
| z2 | 0.07 |
10077000
| size | 2" |
|---|---|
| dimensions | 3.42x2.56x2.56 " |
| weight | 0.64 lb |
| packaging | - |
| d1 | 2.12 |
| DN1 | - |
| l1 | 1.66 |
| z1 | 0.07 |
| d2 | 2.12 |
| DN2 | - |
| l2 | 1.66 |
| z2 | 0.07 |
Specifications
| article | ApolloPress coupling (P x P) |
|---|---|
| article number with gtin | 800 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 0.64 lb |
| dimensions | 3.42x2.56x2.56 " |
| color | copper |
| materials | copper (CW024A (UNS C12200)) |
| finishing | none |
| shape | straight |
| connection type | press (V) |
| sealing | EPDM |
| max operating pressure liquid | 300 psi |
| min. medium temperature | 32 °F |
| max medium temperature | 250 °F |
| product group | fittings (accessories (fittings)) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | United States |
| brand | Apollo |
| series | ApolloPress |
| product type | 800 |
| unsps | 40172612 |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Main colour fitting":"Copper","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
