Apollo Apollopress

ApolloPress coupling – reducing (P x P)

Scraped SKU: 801R 2026-06-05 04:33:14

Attributes

Group Code801R
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc
Solutionsfire protection, utility, industry

Description

The ApolloPress® 801 Small Diameter Press Coupling features a lead free dezincification resistant copper body and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
  • Lead Free Construction
  • Leak Before Press® Technology

Variations (13)

10075900

size3/4" x 1/2"
dimensions1.24x2.14x1.24 "
weight0.13 lb
packaging-

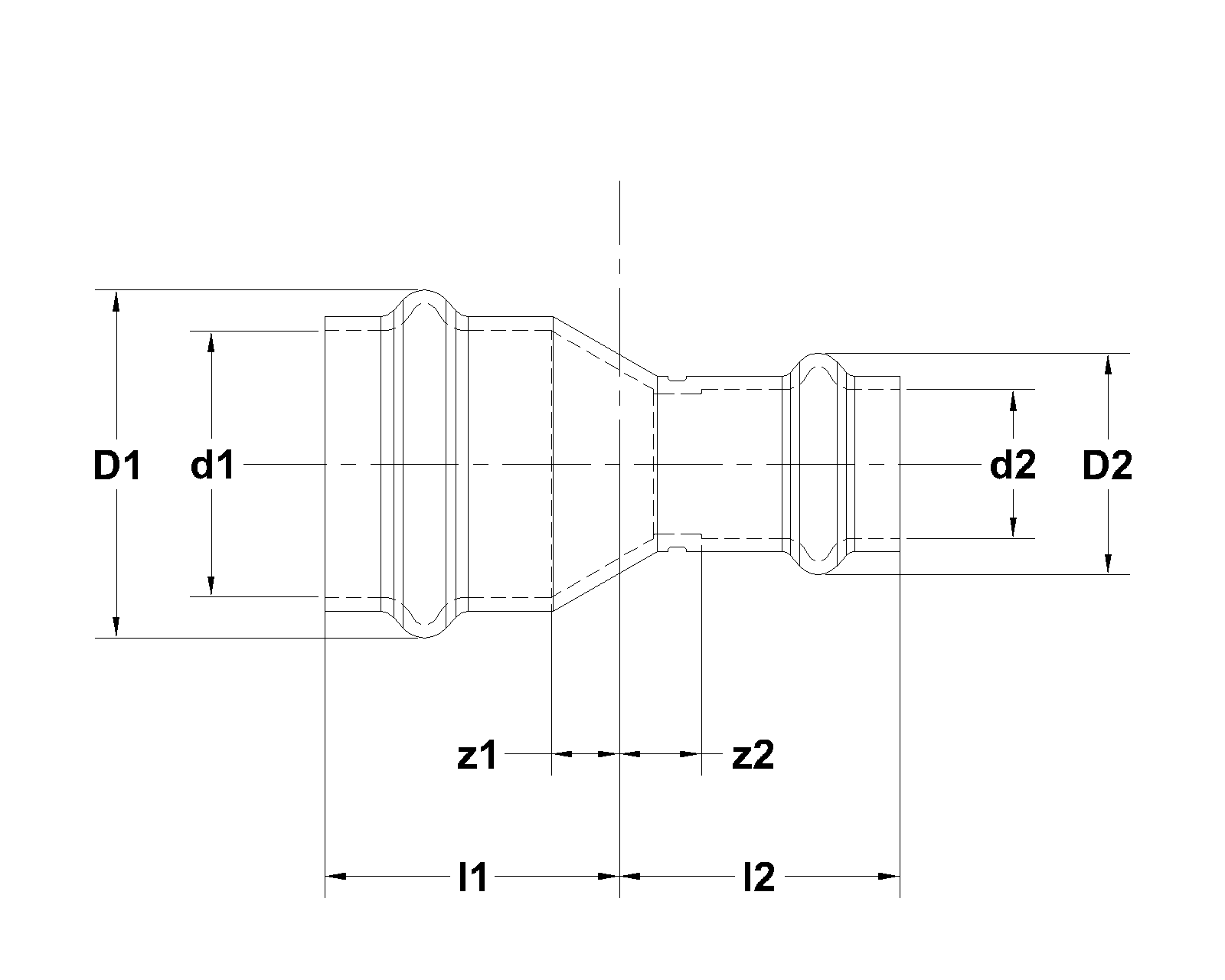

d10.88
DN1-
l11.14
z10.22
d20.62
DN2-
l21.00
z20.22

10075144

size1" x 1/2"
dimensions1.49x2.37x1.49 "
weight0.12 lb
packaging-
d11.14
DN1-
l11.41
z10.42
d20.64
DN2-
l20.90
z20.05

10075898

size1" x 3/4"
dimensions1.49x2.30x1.49 "
weight0.17 lb
packaging-
d11.14
DN1-
l11.21
z10.30
d20.89
DN2-
l21.09
z20.18

10066001

size1 1/4" x 3/4"
dimensions1.75x3.98x1.75 "
weight0.45 lb
packaging-
d11.38
DN1-
l11.98
z10.98
d20.88
DN2-
l21.96
z20.98

10075896

size1 1/4" x 1"
dimensions1.75x2.40x1.75 "
weight0.22 lb
packaging-
d11.39
DN1-
l11.30
z10.18
d21.14
DN2-
l21.13
z20.20

10066380

size1 1/2" x 1/2"
dimensions2.09x4.87x2.09 "
weight0.77 lb
packaging-
d11.65
DN1-
l12.71
z11.27
d20.63
DN2-
l22.20
z21.27

10066381

size1 1/2" x 3/4"
dimensions2.09x4.89x2.09 "
weight0.77 lb
packaging-
d11.64
DN1-
l12.65
z11.19
d20.89
DN2-
l22.17
z21.19

10066003

size1 1/2" x 1"
dimensions2.09x4.60x2.09 "
weight0.2 lb
packaging-
d11.64
DN1-
l12.62
z11.16
d21.13
DN2-
l22.16
z21.16

10075128

size1 1/2" x 1 1/4"
dimensions2.11x2.87x2.11 "
weight0.38 lb
packaging-
d11.64
DN1-
l11.65
z10.35
d21.39
DN2-
l21.31
z20.28

10066398

size2" x 3/4"
dimensions2.56x5.70x2.56 "
weight1.25 lb
packaging-
d12.14
DN1-
l13.21
z11.58
d20.89
DN2-
l22.54
z21.58

10066005

size2" x 1"
dimensions2.56x5.49x2.56 "
weight1.08 lb
packaging-
d12.14
DN1-
l13.05
z11.41
d22.14
DN2-
l22.42
z21.41

10066072

size2" x 1 1/4"
dimensions2.56x5.18x2.56 "
weight1.07 lb
packaging-
d12.14
DN1-
l12.89
z11.25
d21.39
DN2-
l22.31
z21.25

10075130

size2" x 1 1/2"
dimensions2.56x3.72x2.56 "
weight0.62 lb
packaging-
d12.13
DN1-
l11.83
z10.43
d21.64
DN2-
l21.74
z20.43

Specifications

articleApolloPress coupling – reducing (P x P)
article number with gtin801R
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight0.62 lb
dimensions2.56x3.72x2.56 "
colorcopper
materialscopper (CW024A (UNS C12200))
finishingnone
shapestraight, reducer
connection typepress (V)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003024 Fitting with 2 connections
country of originUnited States
brandApollo
seriesApolloPress
product type801R
unsps40173613
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Main colour fitting":"Copper","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
