Apollo Apollopress

ApolloPress coupling – reducing, large (P x P)

Scraped SKU: 801R.XL 2026-06-05 04:33:14

Attributes

Group Code801R.XL
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61
Solutionsfire protection, utility, industry

Description

The ApolloPress® 801 Large Diameter Press Reducing Coupling features a lead free dezincification resistant copper body, a patented stainless-steel solid cross-section grab ring, a nylon separation ring and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
  • Lead Free Construction
  • Leak Before Press® Technology
  • Visual Element, Break Away Band (Pat# 9,532.451)

Variations (6)

10066440

size2 1/2" x 1"
dimensions3.16x6.75x3.16 "
weight1.83 lb
packaging-

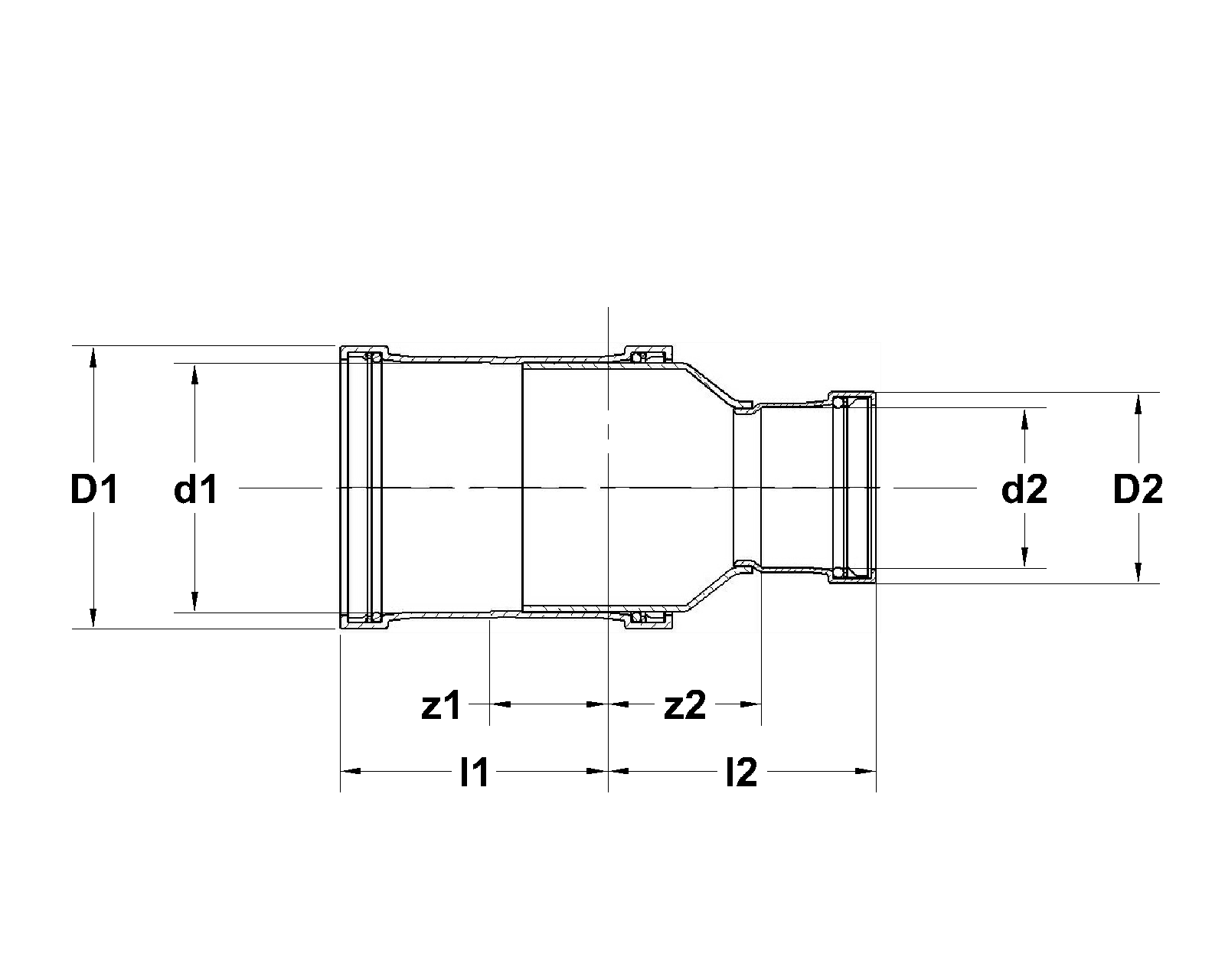

d12.68
DN1-
l14.29
z12.29
d21.13
DN2-
l23.22
z22.29

10066074

size2 1/2" x 2"
dimensions3.16x6.68x3.16 "
weight1.92 lb
packaging-
d12.67
DN1-
l13.88
z11.88
d22.14
DN2-
l23.50
z21.88

10066446

size3" x 2"
dimensions3.68x7.39x3.68 "
weight2.7 lb
packaging-
d13.21
DN1-
l14.15
z11.96
d22.15
DN2-
l23.60
z21.96

10066076

size3" x 2 1/2"
dimensions3.68x7.63x3.68 "
weight2.85 lb
packaging-
d13.22
DN1-
l14.03
z11.85
d22.67
DN2-
l23.79
z21.85

10066447

size4" x 2"
dimensions4.70x8.62x4.70 "
weight5.11 lb
packaging-
d14.22
DN1-
l15.01
z12.52
d22.15
DN2-
l24.27
z22.52

10066152

size4" x 3"
dimensions4.70x8.93x4.70 "
weight5.14 lb
packaging-
d14.26
DN1-
l14.75
z12.25
d23.23
DN2-
l24.75
z22.65

Specifications

articleApolloPress coupling – reducing, large (P x P)
article number with gtin801R.XL
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight5.14 lb
dimensions4.70x8.93x4.70 "
colorcopper
materialscopper (CW024A (UNS C12200))
finishingnone
shapestraight, reducer
connection typepress (V)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003024 Fitting with 2 connections
country of originUnited States
brandApollo
seriesApolloPress
product type801R.XL
unsps40173613
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Main colour fitting":"Copper","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
