Attributes
| Group Code | 801.XL |
|---|---|
| Product Type | accessories-fittings |
| Brand Series | apollo-apollopress |
| Applications | potable water, heating, cooling, steam, compressed air, sprinkler, vacuum |
| Approvals | CRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc |
| Solutions | fire protection, utility, industry |
Description
The ApolloPress® 801 Large Diameter Press Coupling features a lead free dezincification resistant copper body, a patented stainless-steel solid cross-section grab ring, a nylon separation ring and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
- Lead Free Construction
- Leak Before Press® Technology
- Visual Element, Break Away Band (Pat# 9,532.451)
Variations (3)

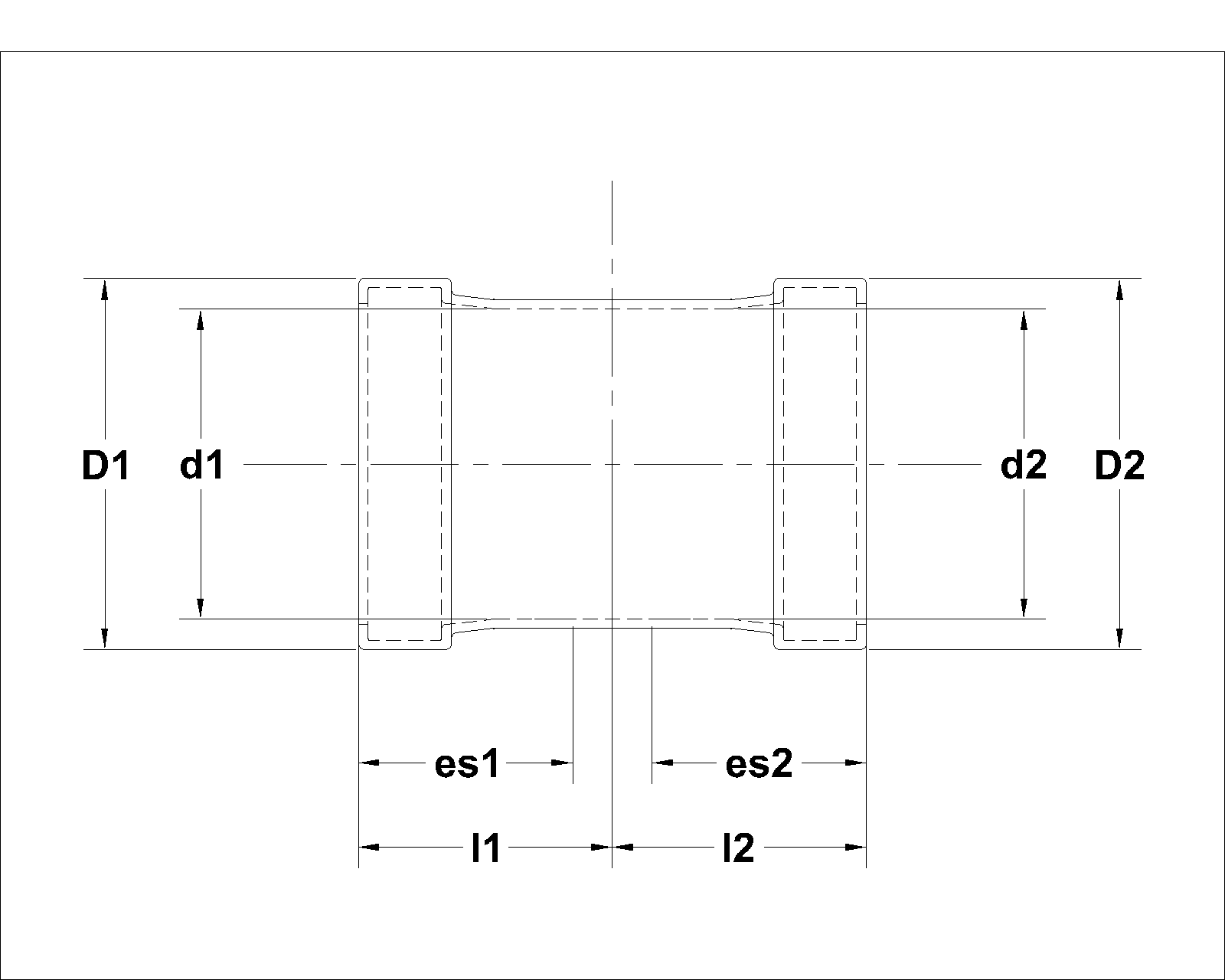

10061932
| size | 2 1/2" |
|---|---|
| dimensions | 3.16x4.65x3.16 " |
| weight | 1.23 lb |
| packaging | - |
| d1 | 2.63 |
| DN1 | - |
| l1 | 2.17 |
| z1 | 1.90 |
| d2 | 2.63 |
| DN2 | - |
| l2 | 2.17 |
| z2 | 1.90 |
10061937
| size | 3" |
|---|---|
| dimensions | 3.68x4.70x3.68 " |
| weight | 1.49 lb |
| packaging | - |
| d1 | 3.13 |
| DN1 | - |
| l1 | 2.33 |
| z1 | 1.90 |
| d2 | 3.13 |
| DN2 | - |
| l2 | 2.33 |
| z2 | 1.90 |
10061942
| size | 4" |
|---|---|
| dimensions | 4.70x5.53x4.70 " |
| weight | 2.65 lb |
| packaging | - |
| d1 | 4.13 |
| DN1 | - |
| l1 | 2.77 |
| z1 | 2.10 |
| d2 | 4.13 |
| DN2 | - |
| l2 | 2.77 |
| z2 | 2.10 |
Specifications
| article | ApolloPress coupling – no stop, large (P x P) |
|---|---|
| article number with gtin | 801.XL |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 2.65 lb |
| dimensions | 4.70x5.53x4.70 " |
| color | copper |
| materials | copper (CW024A (UNS C12200)) |
| finishing | none |
| shape | straight |
| connection type | press (V) |
| sealing | EPDM |
| max operating pressure liquid | 300 psi |
| min. medium temperature | 32 °F |
| max medium temperature | 250 °F |
| product group | fittings (accessories (fittings)) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Hungary |
| brand | Apollo |
| series | ApolloPress |
| product type | 801.XL |
| unsps | 40172612 |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Main colour fitting":"Copper","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"No","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
