Apollo Apollopress

ApolloPress street adapter – female (FTG x FPT)

Scraped SKU: 803-2 2026-06-05 04:33:14

Attributes

Group Code803-2
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc
Solutionsfire protection, utility, industry

Description

The ApolloPress® 803-2 Small Diameter Press Female Street Adapter features a lead free dezincification resistant brass body and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
  • Lead Free Construction
  • Leak Before Press® Technology

Variations (11)

10075764

size1/2" x FPT3/8"
dimensions0.87x1.56x0.87 "
weight0.08 lb
packaging-

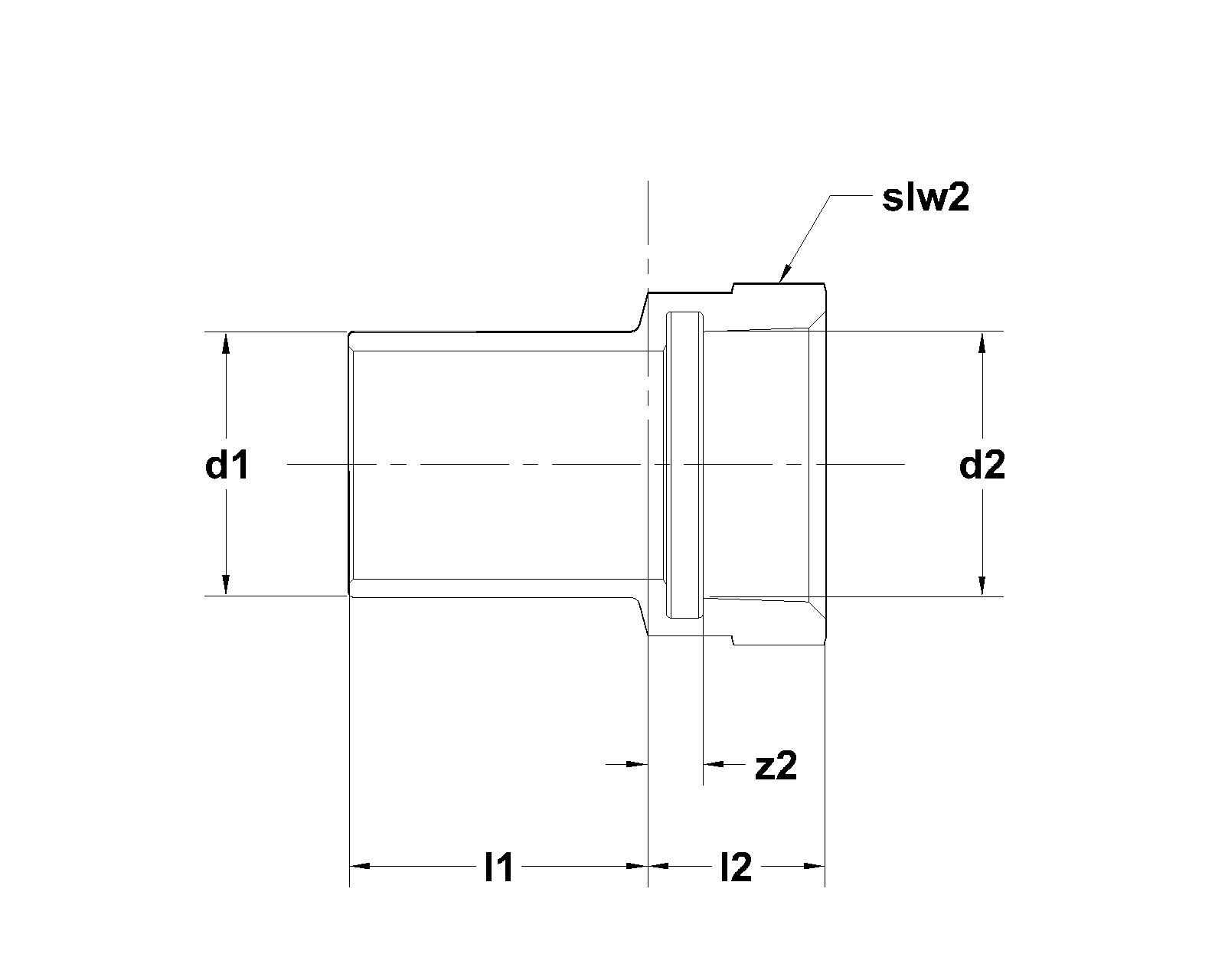

d10.62
DN1-
l11.08
z10.33
d20.68
DN2-
l20.58
slw21

10075762

size1/2" x FPT1/2"
dimensions1.71x1.02x1.02 "
weight0.1 lb
packaging-
d10.62
DN1-
l11.15
z10.40
d20.84
DN2-
l20.70
slw21.1

10075766

size1/2" x FPT3/4"
dimensions1.25x1.79x1.25 "
weight0.14 lb
packaging-
d10.62
DN1-
l11.10
z10.35
d21.05
DN2-
l20.70
slw21.26

10075770

size3/4" x FPT1/2"
dimensions1.02x1.84x1.02 "
weight0.13 lb
packaging-
d10.88
DN1-
l11.29
z10.24
d20.84
DN2-
l20.55
slw21.1

10075768

size3/4" x FPT3/4"
dimensions1.91x1.25x1.25 "
weight0.16 lb
packaging-
d10.88
DN1-
l11.35
z10.30
d21.05
DN2-
l20.65
slw21.26

10075804

size1" x FPT1/2"
dimensions1.13x1.65x1.13 "
weight0.15 lb
packaging-
d11.12
DN1-
l11.22
z10.12
d20.84
DN2-
l20.43
slw21.1

10075772

size1" x FPT1"
dimensions2.03x1.53x1.53 "
weight0.25 lb
packaging-
d11.12
DN1-
l11.37
z10.27
d21.31
DN2-
l20.66
slw21.61

10075802

size1 1/4" x FPT1/2"
dimensions1.38x1.90x1.38 "
weight0.23 lb
packaging-
d11.38
DN1-
l11.32
z10.23
d20.84
DN2-
l20.55
slw21.1

10075774

size1 1/4" x FPT1 1/4"
dimensions2.19x1.93x1.93 "
weight0.35 lb
packaging-
d11.38
DN1-
l11.43
z10.34
d21.66
DN2-
l20.77
slw21.97

10075776

size1 1/2" x FPT1 1/2"
dimensions2.57x2.20x2.20 "
weight0.5 lb
packaging-
d11.62
DN1-
l11.70
z10.48
d21.90
DN2-
l20.87
slw22.36

10075778

size2" x FPT2"
dimensions2.78x2.74x2.74 "
weight0.64 lb
packaging-
d12.12
DN1-
l11.93
z10.41
d22.38
DN2-
l20.85
slw22.76

Specifications

articleApolloPress street adapter – female (FTG x FPT)
article number with gtin803-2
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight0.64 lb
dimensions2.78x2.74x2.74 "
colorbrass
materialsbrass (C27451 (lead-free))
finishingnone
shapestraight, reducer
connection typetube end, FPT - female thread conical (NPT)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003024 Fitting with 2 connections
country of originUnited States
brandApollo
seriesApolloPress
product type803-2
unsps40172521
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Brass","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Brass","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Eccentric":"No","System specific":"No","Connection 1":"Soldered end","Connection 2":"Internal thread conical (NPT)","Main colour fitting":"Brass","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
