Apollo Apollopress

ApolloPress adapter – male (P x MPT)

Scraped SKU: 804 2026-06-05 04:33:14

Attributes

Group Code804
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc
Solutionsfire protection, utility, industry

Description

The ApolloPress® 804 Small Diameter Press Male Adapter features a lead free dezincification resistant brass body and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
  • Lead Free Construction
  • Leak Before Press® Technology

Variations (17)

10075836

size1/2" x MPT3/8"
dimensions0.93x1.79x0.93 "
weight0.11 lb
packaging-

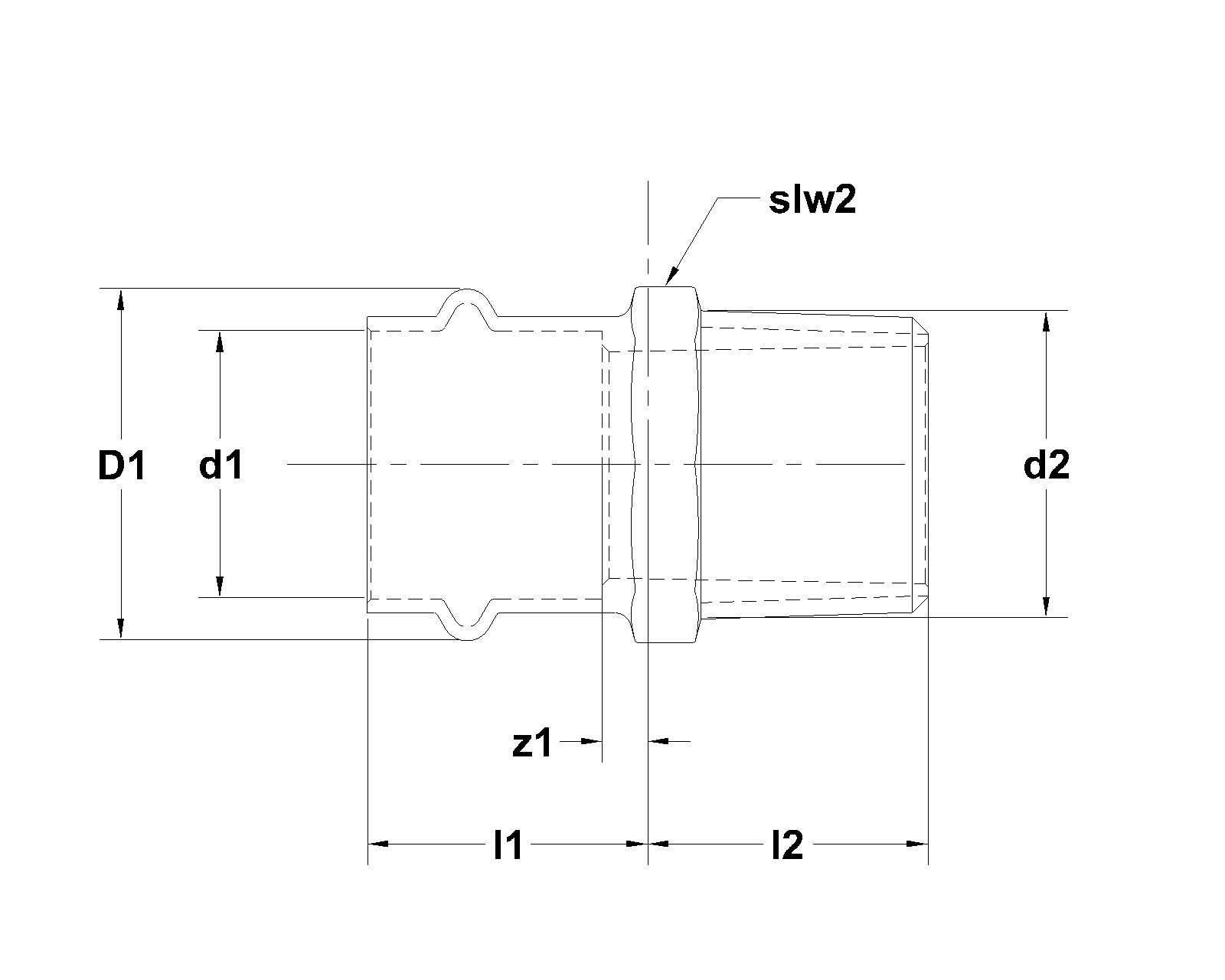

d10.62
DN1-
l11.07
z10.31
d20.68
DN2-
l20.72
slw21

10075806

size1/2" x MPT1/2"
dimensions0.93x1.92x0.93 "
weight0.13 lb
packaging-
d10.62
DN1-
l11.13
z10.25
d20.84
DN2-
l20.79
slw21.1

10075838

size1/2" x MPT3/4"
dimensions1.05x1.86x1.05 "
weight0.16 lb
packaging-
d10.62
DN1-
l11.04
z10.28
d21.05
DN2-
l20.82
slw21.26

10075840

size3/4" x MPT1/2"
dimensions1.25x2.21x1.25 "
weight0.22 lb
packaging-
d10.88
DN1-
l11.30
z10.38
d20.84
DN2-
l20.91
slw21.1

10075808

size3/4" x MPT3/4"
dimensions1.25x2.15x1.25 "
weight0.2 lb
packaging-
d10.88
DN1-
l11.40
z10.20
d21.05
DN2-
l20.75
slw21.26

10075842

size3/4" x MPT1"
dimensions1.50x2.60x1.50 "
weight0.44 lb
packaging-
d10.88
DN1-
l11.32
z10.40
d21.31
DN2-
l21.08
slw21.61

10075854

size1" x MPT3/4"
dimensions1.50x2.24x1.50 "
weight0.29 lb
packaging-
d11.12
DN1-
l11.31
z10.39
d21.05
DN2-
l20.93
slw21.26

10075844

size1" x MPT1"
dimensions1.50x2.39x1.50 "
weight0.31 lb
packaging-
d11.12
DN1-
l11.35
z10.35
d21.31
DN2-
l21.04
slw21.61

10075856

size1" x MPT1 1/4"
dimensions1.71x2.44x1.71 "
weight0.4 lb
packaging-
d11.12
DN1-
l11.33
z10.41
d21.66
DN2-
l21.11
slw21.97

10075846

size1 1/4" x MPT1"
dimensions1.71x2.42x1.71 "
weight0.43 lb
packaging-
d11.38
DN1-
l11.39
z10.35
d21.31
DN2-
l21.03
slw21.61

10075810

size1 1/4" x MPT1 1/4"
dimensions1.71x2.39x1.71 "
weight0.35 lb
packaging-
d11.38
DN1-
l11.47
z10.22
d21.66
DN2-
l20.92
slw21.97

10075848

size1 1/4" x MPT1 1/2"
dimensions1.90x2.62x1.90 "
weight0.5 lb
packaging-
d11.38
DN1-
l11.47
z10.43
d21.90
DN2-
l21.15
slw22.36

10075850

size1 1/2" x MPT1 1/4"
dimensions2.12x2.73x2.12 "
weight0.61 lb
packaging-
d11.62
DN1-
l11.73
z10.30
d21.66
DN2-
l21.00
slw21.97

10075812

size1 1/2" x MPT1 1/2"
dimensions2.13x2.68x2.13 "
weight0.54 lb
packaging-
d11.62
DN1-
l11.69
z10.26
d21.90
DN2-
l20.99
slw22.36

10075852

size1 1/2" x MPT2"
dimensions2.59x2.82x2.59 "
weight0.95 lb
packaging-
d11.62
DN1-
l11.76
z10.33
d22.38
DN2-
l21.09
slw22.76

10075858

size2" x MPT1 1/2"
dimensions2.57x3.10x2.57 "
weight0.83 lb
packaging-
d12.12
DN1-
l11.98
z10.39
d21.90
DN2-
l21.12
slw22.36

10075814

size2" x MPT2"
dimensions2.60x2.97x2.60 "
weight0.78 lb
packaging-
d12.12
DN1-
l11.92
z10.29
d22.38
DN2-
l21.05
slw22.76

Specifications

articleApolloPress adapter – male (P x MPT)
article number with gtin804
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight0.78 lb
dimensions2.60x2.97x2.60 "
colorbrass
materialsbrass (C27451 (lead-free))
finishingnone
shapestraight, reducer
connection typepress (V), MPT - male thread conical (NPT)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003024 Fitting with 2 connections
country of originUnited States
brandApollo
seriesApolloPress
product type804
unsps40172521
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Brass","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Brass","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"External thread conical (NPT)","Main colour fitting":"Brass","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
