ApolloPress adapter – male, large (P x MPT)

Scraped SKU: 804.XL 2026-06-05 04:33:14

Attributes

Group Code804.XL
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc
Solutionsfire protection, utility, industry

Description

The ApolloPress® 804 Large Diameter Press Adapter features a lead free dezincification resistant copper body, a patented stainless-steel solid cross-section grab ring, a nylon separation ring and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
  • Lead Free Construction
  • Leak Before Press® Technology
  • Visual Element, Break Away Band (Pat# 9,532.451)

Variations (3)

10061982

size2 1/2" x MPT2 1/2"
dimensions3.16x4.11x3.16 "
weight1.5 lb
packaging-

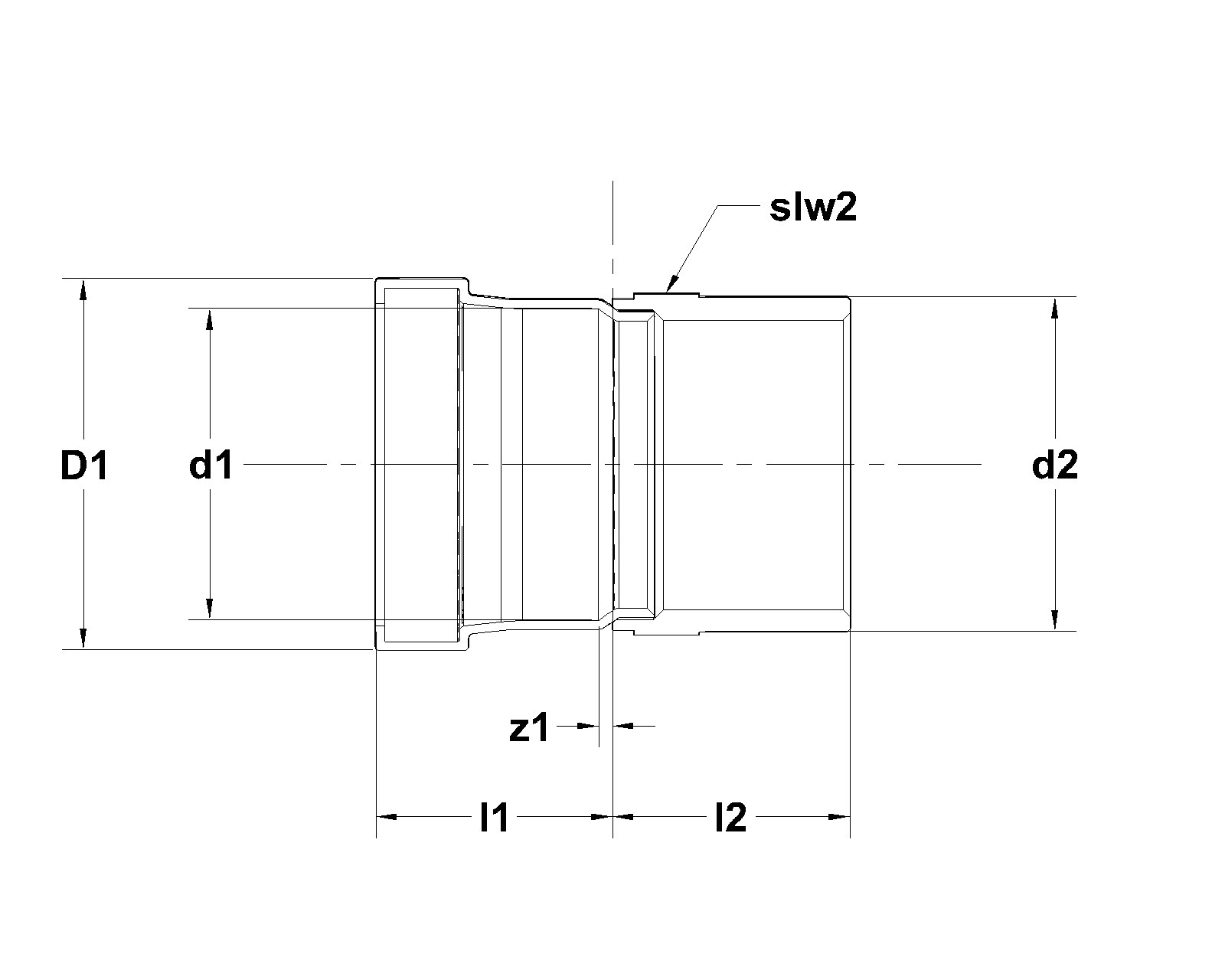

d12.62
DN1-
l12.40
z10.50
d22.88
DN2-
l21.64
slw23.16

10061987

size3" x MPT3"
dimensions3.56x4.35x3.16 "
weight2.1 lb
packaging-
d13.12
DN1-
l12.60
z10.49
d23.50
DN2-
l21.70
slw23.68

10061992

size4" x MPT4"
dimensions4.70x5.43x3.16 "
weight3.4 lb
packaging-
d14.12
DN1-
l13.31
z10.81
d24.50
DN2-
l22.10
slw24.7

Specifications

articleApolloPress adapter – male, large (P x MPT)
article number with gtin804.XL
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight3.4 lb
dimensions4.70x5.43x3.16 "
colorcopper
materialscopper (CW024A (UNS C12200))
finishingnone
shapestraight
connection typepress (V), MPT - male thread conical (NPT)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003024 Fitting with 2 connections
country of originHungary
brandApollo
seriesApolloPress
product type804.XL
unsps40172521
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"External thread conical (NPT)","Main colour fitting":"Copper","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
