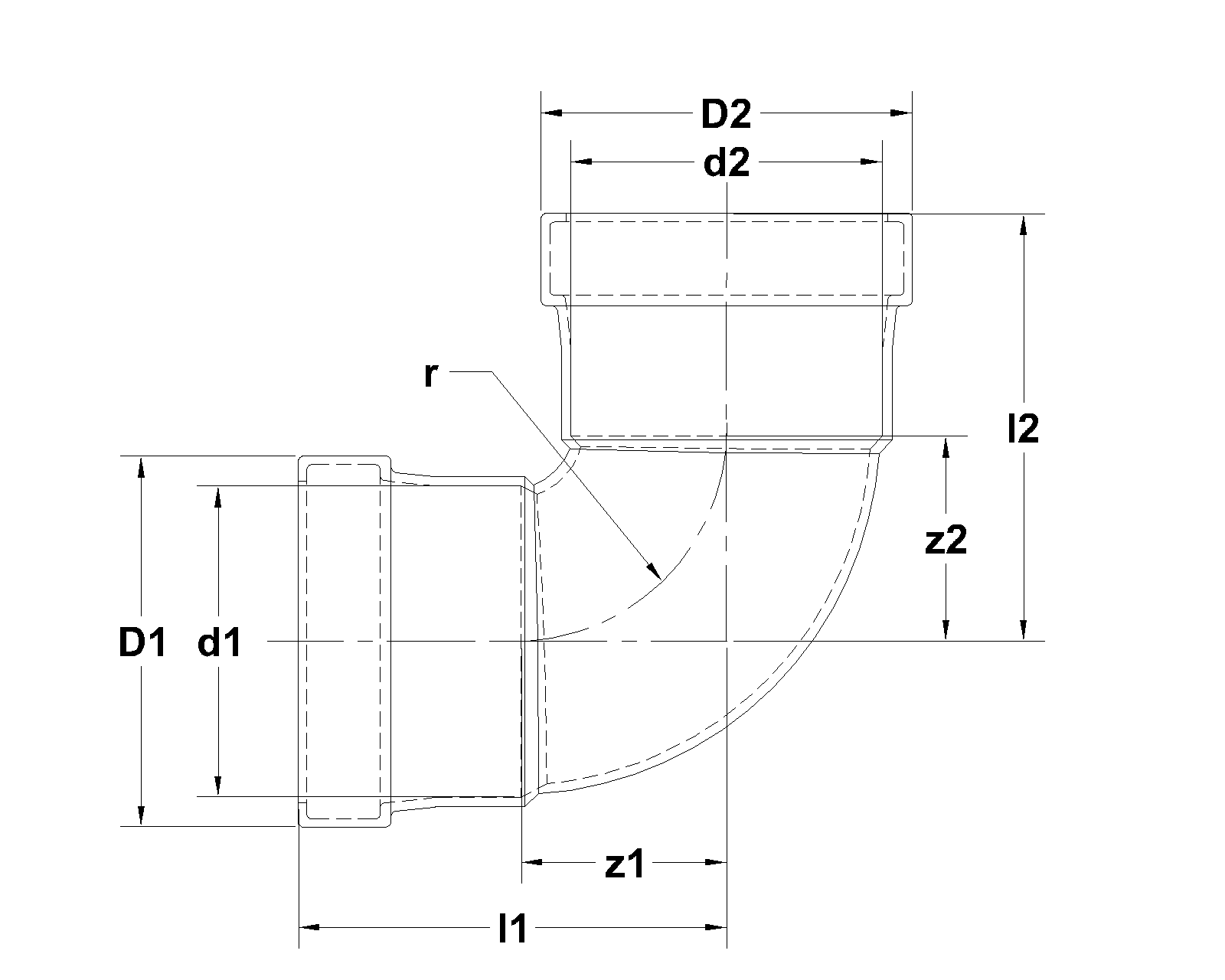

ApolloPress 90° elbow – short radius, large (P x P)

{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Bend","Model":"1-part","Bend angle":"90°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Main colour fitting":"Copper","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
