Attributes
| Group Code | 811 |
|---|---|
| Product Type | accessories-fittings |
| Brand Series | apollo-apollopress |
| Applications | potable water, heating, cooling, steam, compressed air, sprinkler, vacuum |
| Approvals | CRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc |
| Solutions | fire protection, utility, industry |
Description
The ApolloPress® 811 Small Diameter Press Tee features a lead free dezincification resistant copper body and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
- Lead Free Construction
- Leak Before Press® Technology
Variations (5)

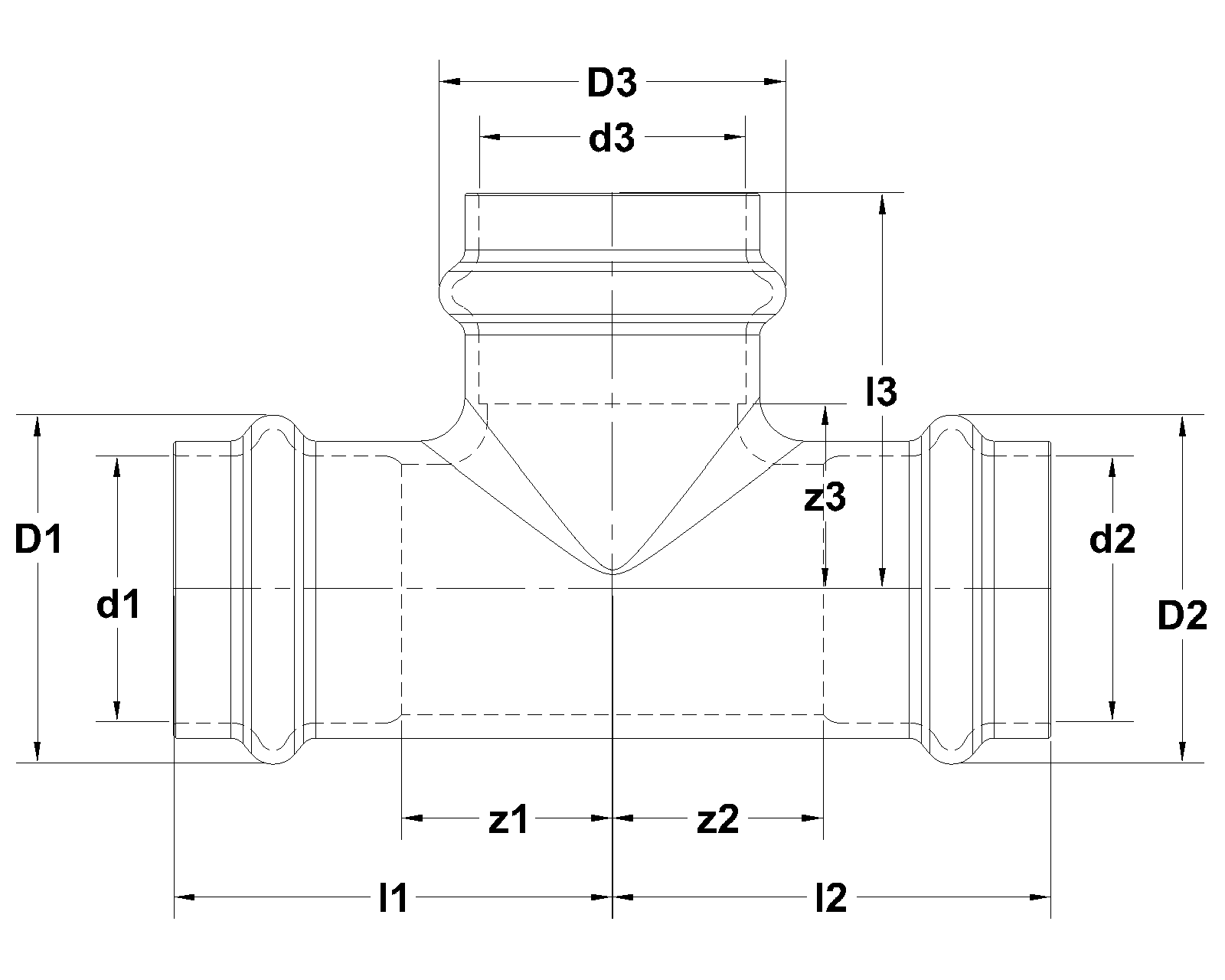

10077739
| size | 1/2" |
|---|---|
| dimensions | 1.78x3.04x0.95 " |
| weight | 0.2 lb |
| packaging | - |
| d1 | 0.63 |
| DN1 | - |
| l1 | 1.49 |
| z1 | 0.71 |
| d2 | 0.63 |
| DN2 | - |
| l2 | 1.35 |
| z2 | 0.57 |
| d3 | 0.63 |
| DN3 | - |
| l3 | 1.49 |
| z3 | 0.71 |
10077740
| size | 3/4" |
|---|---|
| dimensions | 2.17x3.47x1.24 " |
| weight | 0.39 lb |
| packaging | - |
| d1 | 0.88 |
| DN1 | - |
| l1 | 1.73 |
| z1 | 0.78 |
| d2 | 0.88 |
| DN2 | - |
| l2 | 1.61 |
| z2 | 0.62 |
| d3 | 0.88 |
| DN3 | - |
| l3 | 1.73 |
| z3 | 0.78 |
10077742
| size | 1 1/4" |
|---|---|
| dimensions | 2.94x4.12x1.75 " |
| weight | 0.62 lb |
| packaging | - |
| d1 | 1.38 |
| DN1 | - |
| l1 | 2.06 |
| z1 | 1.00 |
| d2 | 1.38 |
| DN2 | - |
| l2 | 1.96 |
| z2 | 0.89 |
| d3 | 1.38 |
| DN3 | - |
| l3 | 2.06 |
| z3 | 1.00 |
10017743
| size | 1 1/2" |
|---|---|
| dimensions | - |
| weight | 1.14 lb |
| packaging | - |
| d1 | 1.62 |
| DN1 | - |
| l1 | 2.58 |
| z1 | 1.11 |
| d2 | 1.62 |
| DN2 | - |
| l2 | 2.57 |
| z2 | 1.10 |
| d3 | 1.62 |
| DN3 | - |
| l3 | 2.58 |
| z3 | 1.11 |
10077744
| size | 2" |
|---|---|
| dimensions | 4.17x5.75x2.58 " |
| weight | 1.86 lb |
| packaging | - |
| d1 | 2.13 |
| DN1 | - |
| l1 | 2.98 |
| z1 | 1.33 |
| d2 | 2.13 |
| DN2 | - |
| l2 | 3.01 |
| z2 | 1.41 |
| d3 | 2.13 |
| DN3 | - |
| l3 | 2.98 |
| z3 | 1.33 |
Specifications
| article | ApolloPress tee (P x P x P) |
|---|---|
| article number with gtin | 811 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 1.86 lb |
| dimensions | 4.17x5.75x2.58 " |
| color | copper |
| materials | copper (CW024A (UNS C12200)) |
| finishing | none |
| shape | T-piece, 90º |
| connection type | press (V) |
| sealing | EPDM |
| max operating pressure liquid | 300 psi |
| min. medium temperature | 32 °F |
| max medium temperature | 250 °F |
| product group | fittings (accessories (fittings)) |
| ETIM class | EC003025 Fitting with 3 connections |
| brand | Apollo |
| series | ApolloPress |
| product type | 811 |
| unsps | 40174612 |
| ETIM | {"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Material connection 3":"Copper","Material quality connection 3":"Cu-DHP (CW024A)","Surface protection connection 3":"Untreated","Surface treatment connection 3":"Untreated","Model":"T-piece","Angle":"90°","Reducing":"No","Multi-part":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Connection 3":"Press sleeve","Contour code connection 3":"V","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","Main colour fitting":"Copper","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With thermal insulation":"No","With buffer stud":"Yes","Capped":"No","With connection indicator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
