Apollo Apollopress

ApolloPress tee – reducing (P x P x P)

Scraped SKU: 811R 2026-06-05 04:33:14

Attributes

Group Code	811R
Product Type	accessories-fittings
Brand Series	apollo-apollopress
Applications	potable water, heating, cooling, steam, compressed air, sprinkler, vacuum
Approvals	CRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc
Solutions	fire protection, utility, industry

Description

The ApolloPress^® 811R Small Diameter Press Reducing Outlet Tee features a lead free dezincification resistant copper body and an EPDM o-ring. ApolloPress^® products are manufactured utilizing proven ASTM materials and standards.

Lead Free Construction
Leak Before Press^® Technology

Variations (53)

10077810

size	1/2" x 1/2" x 3/4"
dimensions	2.17x5.70x1.24 "
weight	0.33 lb
packaging	-

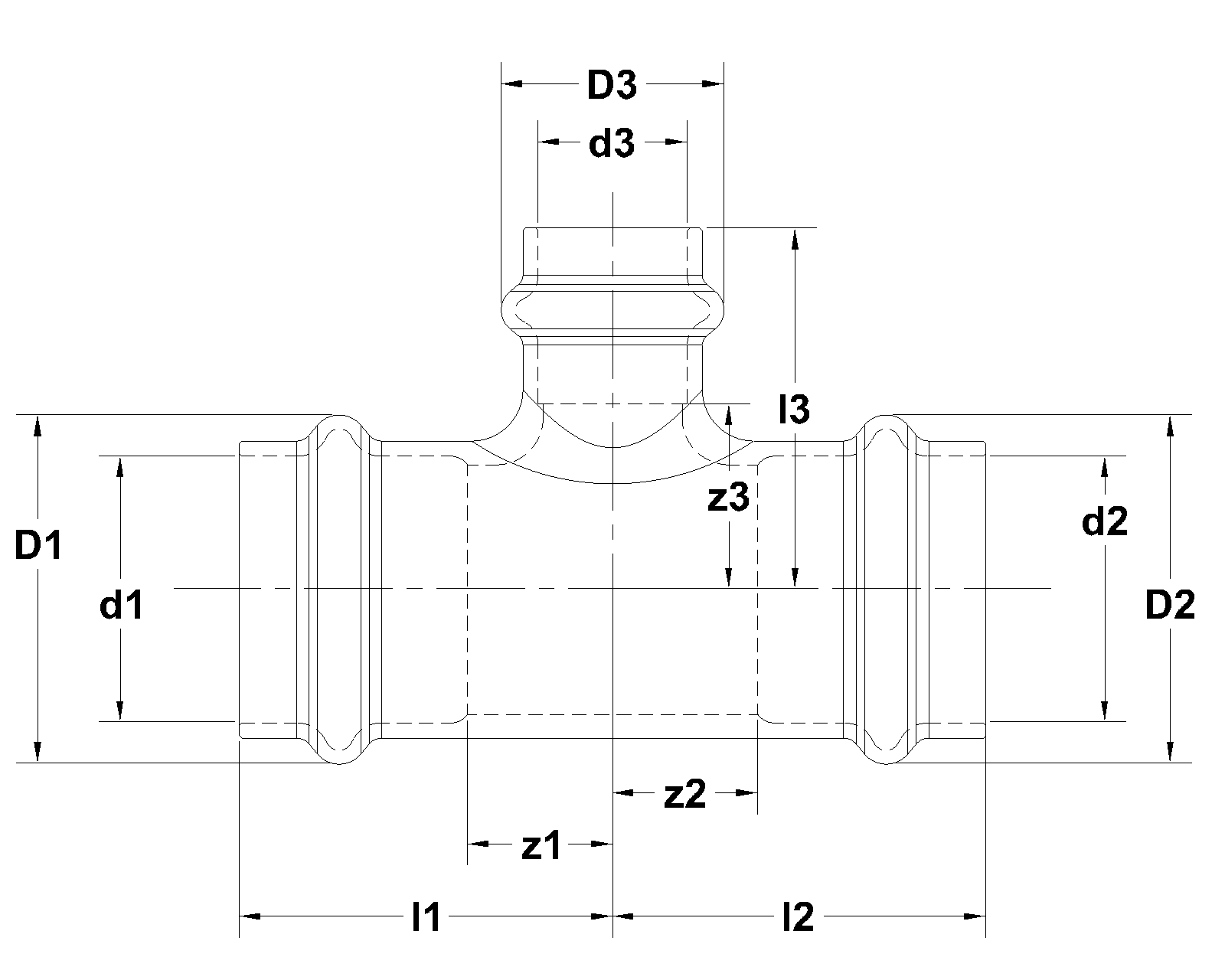

d1	0.64
DN1	-
l1	1.69
z1	0.97
d2	0.64
DN2	-
l2	1.50
z2	0.62
d3	0.89
DN3	-
l3	1.69
z3	0.97

10017784

size	3/4" x 1/2" x 1/2"
dimensions	-
weight	0.3 lb
packaging	-
d1	0.88
DN1	-
l1	1.58
z1	0.62
d2	0.63
DN2	-
l2	1.39
z2	0.62
d3	0.64
DN3	-
l3	1.75
z3	0.98

10077784

size	3/4" x 1/2" x 1/2"
dimensions	2.07x4.25x1.24 "
weight	0.3 lb
packaging	-
d1	0.88
DN1	-
l1	1.58
z1	0.62
d2	0.62
DN2	-
l2	1.39
z2	0.62
d3	0.62
DN3	-
l3	1.75
z3	0.97

10077785

size	3/4" x 1/2" x 3/4"
dimensions	7.66x9.84x4.70 "
weight	0.32 lb
packaging	-
d1	0.90
DN1	-
l1	1.77
z1	0.81
d2	0.64
DN2	-
l2	1.52
z2	0.54
d3	0.90
DN3	-
l3	1.89
z3	1.12

10017745

size	3/4"x3/4"x1/2"
dimensions	-
weight	0.29 lb
packaging	-
d1	0.88
DN1	-
l1	1.60
z1	0.65
d2	0.88
DN2	-
l2	1.38
z2	0.59
d3	0.62
DN3	-
l3	1.60
z3	0.65

10077745

size	3/4" x 3/4" x 1/2"
dimensions	2.07x3.13x1.24 "
weight	0.29 lb
packaging	-
d1	0.89
DN1	-
l1	1.59
z1	0.69
d2	0.89
DN2	-
l2	1.38
z2	0.63
d3	0.64
DN3	-
l3	1.59
z3	0.69

10066071

size	3/4" x 3/4" x 1"
dimensions	-
weight	0.76 lb
packaging	-
d1	0.88
DN1	-
l1	3.33
z1	2.39
d2	0.88
DN2	-
l2	1.75
z2	0.80
d3	1.13
DN3	-
l3	3.33
z3	2.39

10077786

size	1" x 1/2" x 3/4"
dimensions	2.44x5.07x1.50 "
weight	0.49 lb
packaging	-
d1	1.14
DN1	-
l1	1.75
z1	0.78
d2	0.65
DN2	-
l2	1.64
z2	0.70
d3	0.91
DN3	-
l3	2.00
z3	1.21

10077787

size	1" x 1/2" x 1"
dimensions	2.51x5.30x1.50 "
weight	0.37 lb
packaging	-
d1	1.14
DN1	-
l1	1.85
z1	0.91
d2	0.64
DN2	-
l2	1.71
z2	0.77
d3	1.15
DN3	-
l3	2.31
z3	1.55

10077788

size	1" x 3/4" x 1/2"
dimensions	2.32x4.59x1.50 "
weight	0.37 lb
packaging	-
d1	1.14
DN1	-
l1	1.59
z1	0.59
d2	0.89
DN2	-
l2	1.56
z2	0.79
d3	0.65
DN3	-
l3	1.85
z3	1.07

10077789

size	1" x 3/4" x 3/4"
dimensions	2.44x4.91x1.50 "
weight	0.51 lb
packaging	-
d1	1.14
DN1	-
l1	1.72
z1	0.71
d2	0.89
DN2	-
l2	1.66
z2	0.75
d3	0.89
DN3	-
l3	2.00
z3	1.00

10077790

size	1" x 3/4" x 1"
dimensions	2.51x5.14x1.50 "
weight	0.47 lb
packaging	-
d1	1.14
DN1	-
l1	1.82
z1	0.85
d2	0.89
DN2	-
l2	1.70
z2	0.79
d3	1.14
DN3	-
l3	1.14
z3	0.22

10077746

size	1" x 1" x 1/2"
dimensions	2.32x3.30x1.49 "
weight	0.37 lb
packaging	-
d1	1.14
DN1	-
l1	1.59
z1	0.69
d2	1.14
DN2	-
l2	1.54
z2	0.79
d3	0.64
DN3	-
l3	1.59
z3	0.69

10017747

size	1" x 1" x 3/4"
dimensions	-
weight	0.47 lb
packaging	-
d1	1.12
DN1	-
l1	1.80
z1	0.89
d2	1.12
DN2	-
l2	1.66
z2	0.70
d3	0.88
DN3	-
l3	1.80
z3	0.88

10077747

size	1" x 1" x 3/4"
dimensions	2.44x3.67x1.50 "
weight	0.47 lb
packaging	-
d1	1.14
DN1	-
l1	1.74
z1	0.79
d2	1.14
DN2	-
l2	1.65
z2	0.71
d3	0.89
DN3	-
l3	1.74
z3	0.79

10077791

size	1 1/4" x 1/2" x 1 1/4"
dimensions	2.94x5.86x1.75 "
weight	0.63 lb
packaging	-
d1	1.40
DN1	-
l1	2.05
z1	0.98
d2	0.64
DN2	-
l2	1.89
z2	0.82
d3	1.14
DN3	-
l3	2.49
z3	1.77

10077792

size	1 1/4" x 3/4" x 3/4"
dimensions	3.10x5.73x1.75 "
weight	0.72 lb
packaging	-
d1	1.40
DN1	-
l1	1.75
z1	0.64
d2	0.89
DN2	-
l2	1.76
z2	0.87
d3	0.90
DN3	-
l3	2.20
z3	1.29

10077793

size	1 1/4" x 3/4" x 1"
dimensions	3.04x5.73x1.75 "
weight	0.8 lb
packaging	-
d1	1.39
DN1	-
l1	1.91
z1	0.88
d2	0.89
DN2	-
l2	1.80
z2	0.90
d3	1.14
DN3	-
l3	2.30
z3	1.40

10077794

size	1 1/4" x 3/4" x 1 1/4"
dimensions	2.94x5.73x1.75 "
weight	0.61 lb
packaging	-
d1	1.39
DN1	-
l1	2.01
z1	0.93
d2	0.89
DN2	-
l2	1.91
z2	0.82
d3	1.39
DN3	-
l3	2.46
z3	1.54

10077795

size	1 1/4" x 1" x 1/2"
dimensions	3.04x5.44x1.75 "
weight	0.44 lb
packaging	-
d1	1.38
DN1	-
l1	1.67
z1	0.59
d2	1.14
DN2	-
l2	1.68
z2	0.87
d3	0.65
DN3	-
l3	1.77
z3	0.86

10077796

size	1 1/4" x 1" x 3/4"
dimensions	3.10x4.10x1.75 "
weight	0.5 lb
packaging	-
d1	1.40
DN1	-
l1	1.81
z1	0.78
d2	1.14
DN2	-
l2	1.76
z2	0.81
d3	0.90
DN3	-
l3	2.00
z3	1.12

10077797

size	1 1/4" x 1" x 1"
dimensions	3.04x4.10x1.75 "
weight	0.56 lb
packaging	-
d1	1.39
DN1	-
l1	1.93
z1	0.90
d2	1.14
DN2	-
l2	1.81
z2	0.91
d3	1.14
DN3	-
l3	2.13
z3	1.23

10077748

size	1 1/4" x 1 1/4" x 1/2"
dimensions	3.04x4.12x1.75 "
weight	0.48 lb
packaging	-
d1	1.39
DN1	-
l1	1.69
z1	0.60
d2	1.39
DN2	-
l2	1.70
z2	0.87
d3	0.64
DN3	-
l3	1.69
z3	0.60

10077749

size	1 1/4" x 1 1/4" x 3/4"
dimensions	3.10x4.12x1.75 "
weight	0.52 lb
packaging	-
d1	1.38
DN1	-
l1	1.80
z1	0.74
d2	1.38
DN2	-
l2	1.81
z2	0.85
d3	0.88
DN3	-
l3	1.80
z3	0.74

10077750

size	1 1/4" x 1 1/4" x 1"
dimensions	3.04x4.12x1.75 "
weight	0.56 lb
packaging	-
d1	1.39
DN1	-
l1	1.91
z1	0.81
d2	1.39
DN2	-
l2	1.80
z2	0.90
d3	1.14
DN3	-
l3	1.91
z3	0.81

10066397

size	1 1/2" x 3/4" x 1"
dimensions	3.16x6.16x2.11 "
weight	1.14 lb
packaging	-
d1	1.64
DN1	-
l1	2.21
z1	0.77
d2	0.88
DN2	-
l2	2.13
z2	1.19
d3	1.14
DN3	-
l3	3.93
z3	3.00

10077798

size	1 1/2" x 1" x 3/4"
dimensions	3.07x5.62x2.11 "
weight	0.8 lb
packaging	-
d1	1.64
DN1	-
l1	2.11
z1	0.58
d2	1.14
DN2	-
l2	2.06
z2	1.07
d3	0.88
DN3	-
l3	2.28
z3	1.35

10077799

size	1 1/2" x 1" x 1"
dimensions	3.16x5.87x2.11 "
weight	0.78 lb
packaging	-
d1	1.65
DN1	-
l1	2.22
z1	0.81
d2	1.15
DN2	-
l2	1.96
z2	1.05
d3	1.14
DN3	-
l3	2.38
z3	1.46

10077800

size	1 1/2" x 1" x 1 1/2"
dimensions	3.43x6.37x2.11 "
weight	1.08 lb
packaging	-
d1	1.64
DN1	-
l1	2.54
z1	0.91
d2	1.14
DN2	-
l2	2.54
z2	0.90
d3	1.64
DN3	-
l3	2.69
z3	1.55

10066081

size	1 1/2" x 1" x 1 1/4"
dimensions	3.28x6.12x2.11 "
weight	0.69 lb
packaging	-
d1	1.65
DN1	-
l1	3.12
z1	1.64
d2	1.14
DN2	-
l2	2.13
z2	0.83
d3	1.38
DN3	-
l3	3.34
z3	2.35

10077801

size	1 1/2" x 1 1/4" x 3/4"
dimensions	3.07x5.38x2.11 "
weight	0.75 lb
packaging	-
d1	1.65
DN1	-
l1	2.10
z1	0.62
d2	1.39
DN2	-
l2	2.06
z2	1.16
d3	0.89
DN3	-
l3	2.12
z3	1.09

10077802

size	1 1/2" x 1 1/4" x 1"
dimensions	3.16x5.63x2.11 "
weight	1.22 lb
packaging	-
d1	1.64
DN1	-
l1	2.23
z1	0.81
d2	1.40
DN2	-
l2	2.09
z2	1.08
d3	1.14
DN3	-
l3	2.33
z3	1.31

10077803

size	1 1/2" x 1 1/4" x 1 1/4"
dimensions	3.26x4.37x2.11 "
weight	0.88 lb
packaging	-
d1	1.64
DN1	-
l1	2.30
z1	0.83
d2	1.40
DN2	-
l2	2.18
z2	1.09
d3	1.40
DN3	-
l3	2.38
z3	1.33

10077751

size	1 1/2" x 1 1/2" x 1/2"
dimensions	4.22x4.00x2.11 "
weight	0.89 lb
packaging	-
d1	1.65
DN1	-
l1	1.92
z1	0.40
d2	1.65
DN2	-
l2	1.86
z2	1.08
d3	0.64
DN3	-
l3	1.92
z3	0.40

10077752

size	1 1/2" x 1 1/2" x 3/4"
dimensions	3.07x4.00x2.11 "
weight	0.81 lb
packaging	-
d1	1.65
DN1	-
l1	2.10
z1	0.64
d2	1.65
DN2	-
l2	2.06
z2	1.13
d3	0.90
DN3	-
l3	2.10
z3	0.64

10077753

size	1 1/2" x 1 1/2" x 1"
dimensions	3.16x4.25x2.11 "
weight	0.84 lb
packaging	-
d1	1.65
DN1	-
l1	2.19
z1	0.77
d2	1.65
DN2	-
l2	2.15
z2	1.20
d3	1.14
DN3	-
l3	2.19
z3	0.77

10077754

size	1 1/2" x 1 1/2" x 1 1/4"
dimensions	3.28x4.50x2.11 "
weight	0.88 lb
packaging	-
d1	1.62
DN1	-
l1	2.29
z1	0.91
d2	1.62
DN2	-
l2	2.14
z2	1.27
d3	1.38
DN3	-
l3	2.29
z3	0.91

10066090

size	1 1/2" x 1 1/2" x 2"
dimensions	4.16x9.75x2.58 "
weight	2.56 lb
packaging	-
d1	1.64
DN1	-
l1	5.10
z1	3.71
d2	1.64
DN2	-
l2	3.01
z2	1.34
d3	2.16
DN3	-
l3	5.10
z3	3.71

10066197

size	2" x 1" x 1 1/2"
dimensions	4.35x7.90x2.58 "
weight	1.77 lb
packaging	-
d1	2.14
DN1	-
l1	2.71
z1	1.06
d2	1.13
DN2	-
l2	2.81
z2	1.27
d3	1.65
DN3	-
l3	4.85
z3	3.90

10066018

size	2" x 1" x 2"
dimensions	4.17x7.90x2.58 "
weight	1.9 lb
packaging	-
d1	2.14
DN1	-
l1	2.99
z1	1.38
d2	1.14
DN2	-
l2	3.00
z2	1.37
d3	2.14
DN3	-
l3	5.10
z3	4.11

10077804

size	2" x 1 1/4" x 1 1/4"
dimensions	3.84x6.84x2.58 "
weight	1.05 lb
packaging	-
d1	2.15
DN1	-
l1	2.52
z1	0.94
d2	1.39
DN2	-
l2	2.35
z2	1.33
d3	1.39
DN3	-
l3	2.87
z3	1.84

10066125

size	2" x 1 1/4" x 1 1/2"
dimensions	4.35x7.59x2.58 "
weight	1.82 lb
packaging	-
d1	2.14
DN1	-
l1	2.72
z1	1.09
d2	1.39
DN2	-
l2	2.75
z2	1.24
d3	1.65
DN3	-
l3	4.56
z3	3.50

10066064

size	2" x 1 1/4" x 2"
dimensions	4.17x7.59x2.58 "
weight	1.9 lb
packaging	-
d1	2.14
DN1	-
l1	2.95
z1	1.37
d2	1.39
DN2	-
l2	2.95
z2	1.37
d3	2.14
DN3	-
l3	4.71
z3	3.67

10077805

size	2" x 1 1/2" x 3/4"
dimensions	3.65x6.31x2.58 "
weight	1.05 lb
packaging	-
d1	2.15
DN1	-
l1	2.29
z1	0.69
d2	1.65
DN2	-
l2	2.29
z2	1.35
d3	0.89
DN3	-
l3	2.75
z3	1.36

10077806

size	2" x 1 1/2" x 1"
dimensions	3.71x6.75x2.58 "
weight	1.13 lb
packaging	-
d1	2.14
DN1	-
l1	2.40
z1	0.77
d2	1.64
DN2	-
l2	2.28
z2	1.32
d3	1.63
DN3	-
l3	2.91
z3	1.47

10077807

size	2" x 1 1/2" x 1 1/4"
dimensions	3.84x7.00x2.58 "
weight	2.63 lb
packaging	-
d1	2.14
DN1	-
l1	2.52
z1	0.92
d2	1.68
DN2	-
l2	2.50
z2	1.41
d3	1.40
DN3	-
l3	2.94
z3	1.49

10077808

size	2" x 1 1/2" x 1 1/2"
dimensions	4.35x7.75x2.58 "
weight	1.56 lb
packaging	-
d1	2.15
DN1	-
l1	2.67
z1	1.10
d2	1.65
DN2	-
l2	2.76
z2	1.33
d3	1.65
DN3	-
l3	3.08
z3	1.68

10077809

size	2" x 1 1/2" x 2"
dimensions	4.17x7.75x2.58 "
weight	1.61 lb
packaging	-
d1	2.14
DN1	-
l1	3.53
z1	1.96
d2	1.65
DN2	-
l2	2.94
z2	1.35
d3	2.14
DN3	-
l3	2.94
z3	1.46

10077755

size	2" x 2" x 1/2"
dimensions	6.69x5.75x2.58 "
weight	1.05 lb
packaging	-
d1	2.14
DN1	-
l1	2.12
z1	0.53
d2	2.14
DN2	-
l2	2.07
z2	1.24
d3	0.65
DN3	-
l3	2.12
z3	0.53

10077756

size	2" x 2" x 3/4"
dimensions	3.65x4.39x2.58 "
weight	1.22 lb
packaging	-
d1	2.14
DN1	-
l1	2.38
z1	0.75
d2	2.14
DN2	-
l2	2.19
z2	1.30
d3	0.89
DN3	-
l3	2.38
z3	0.75

10077757

size	2" x 2" x 1"
dimensions	3.72x4.75x2.58 "
weight	1.61 lb
packaging	-
d1	2.12
DN1	-
l1	2.45
z1	0.90
d2	2.12
DN2	-
l2	2.28
z2	1.44
d3	1.12
DN3	-
l3	2.45
z3	0.90

10077758

size	2" x 2" x 1 1/4"
dimensions	3.84x5.00x2.58 "
weight	1.41 lb
packaging	-
d1	2.14
DN1	-
l1	2.64
z1	1.07
d2	3.14
DN2	-
l2	2.44
z2	1.41
d3	1.39
DN3	-
l3	2.64
z3	1.07

10077759

size	2" x 2" x 1 1/2"
dimensions	4.35x5.75x2.58 "
weight	1.58 lb
packaging	-
d1	2.14
DN1	-
l1	2.70
z1	1.16
d2	2.14
DN2	-
l2	2.79
z2	1.33
d3	1.65
DN3	-
l3	2.70
z3	1.15

Specifications

article	ApolloPress tee – reducing (P x P x P)
article number with gtin	811R
manufacturer	Aalberts integrated piping systems Americas, Inc. (Apollo)
weight	1.58 lb
dimensions	4.35x5.75x2.58 "
color	copper
materials	copper (CW024A (UNS C12200))
finishing	none
shape	T-piece, reducer, 90º
connection type	press (V)
sealing	EPDM
max operating pressure liquid	300 psi
min. medium temperature	32 °F
max medium temperature	250 °F
product group	fittings (accessories (fittings))
ETIM class	EC003025 Fitting with 3 connections
brand	Apollo
series	ApolloPress
product type	811R
unsps	40174612
ETIM	{"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Material connection 3":"Copper","Material quality connection 3":"Cu-DHP (CW024A)","Surface protection connection 3":"Untreated","Surface treatment connection 3":"Untreated","Model":"T-piece","Angle":"90°","Reducing":"Yes","Multi-part":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Connection 3":"Press sleeve","Contour code connection 3":"V","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","Main colour fitting":"Copper","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With thermal insulation":"No","With buffer stud":"Yes","Capped":"No","With connection indicator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Certificate] Apollo SmartPress IAPMO NSF ANSI 372-2022 Open PDF

[Certificate] Apollo SmartPress IAPMO UPC Open PDF

[Certificate] CRN_0A15729 Open PDF

[Installation- & Maintenance Document] ApolloPress Installation Instructions Open PDF

[Other Document] ApolloPress Catalog Open PDF

[Other Document] ApolloPress Brochure Open PDF

Links

Source product page API JSON for this product

Images

Raw

ID	11468
Code	811R
Categories	Apollo Apollopress
