ApolloPress tee – reducing, large (P x P x P)

Scraped SKU: 811R.XL 2026-06-05 04:33:14

Attributes

Group Code	811R.XL
Product Type	accessories-fittings
Brand Series	apollo-apollopress
Applications	potable water, heating, cooling, steam, compressed air, sprinkler, vacuum
Approvals	CRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc
Solutions	fire protection, utility, industry

Description

The ApolloPress^® 811R Large Diameter Press Reducing Outlet Tee features a lead free dezincification resistant copper body, a patented stainless-steel solid cross-section grab ring, a nylon separation ring and an EPDM o-ring. ApolloPress^® products are manufactured utilizing proven ASTM materials and standards.

Lead Free Construction
Leak Before Press^® Technology
Visual Element, Break Away Band (Pat# 9,532.451)

Variations (23)

10077763

size	2 1/2" x 2 1/2" x 1/2"
dimensions	5.58x7.15x3.16 "
weight	1.7 lb
packaging	-

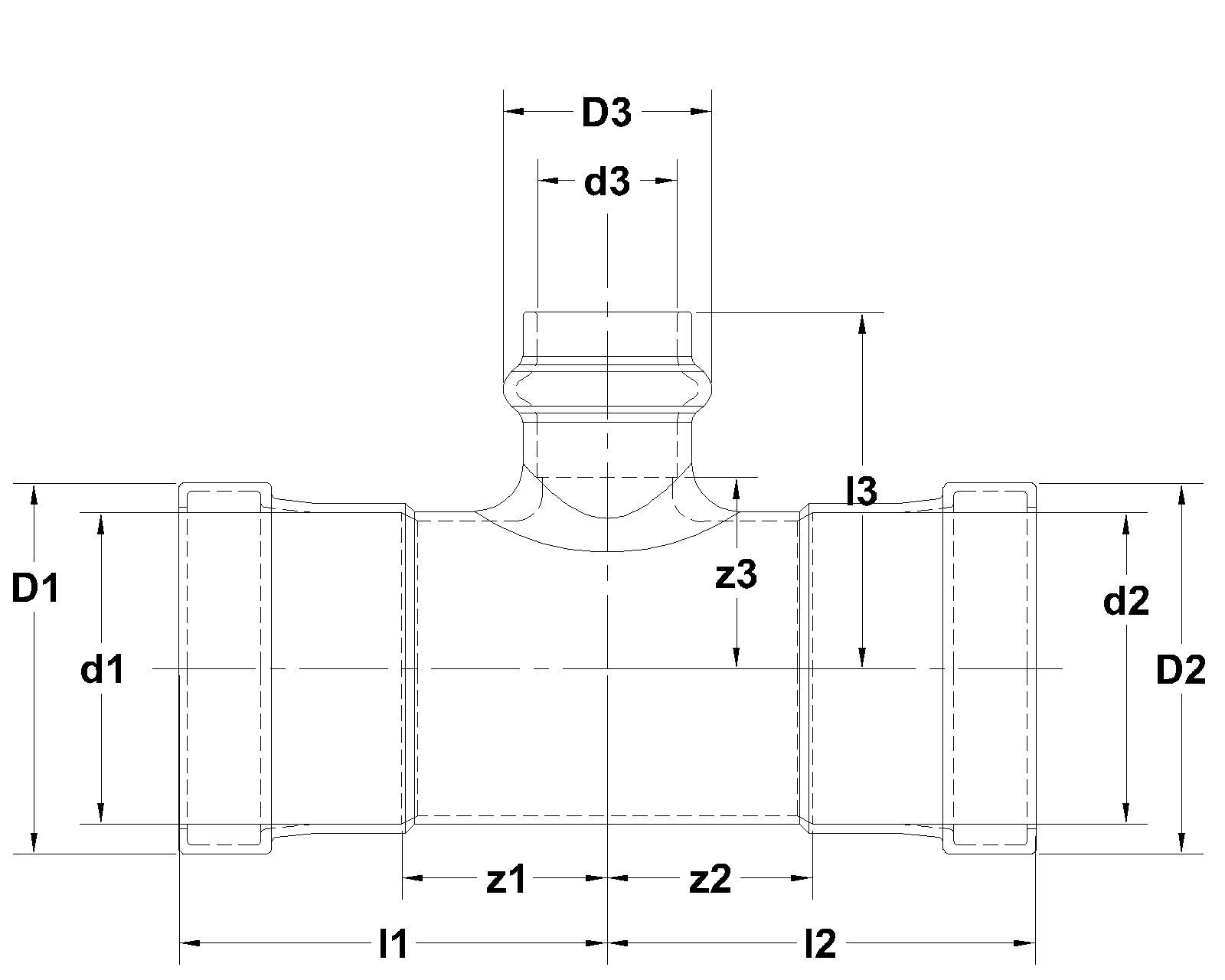

d1	2.62
DN1	-
l1	2.81
z1	0.91
d2	0.62
DN2	-
l2	2.37
z2	1.52
d3	2.62
DN3	-
l3	2.81
z3	0.91

10077764

size	2 1/2" x 2 1/2" x 3/4"
dimensions	5.42x7.15x3.16 "
weight	1.7 lb
packaging	-
d1	2.62
DN1	-
l1	3.02
z1	1.12
d2	0.88
DN2	-
l2	3.02
z2	1.12
d3	2.62
DN3	-
l3	2.47
z3	1.58

10077765

size	2 1/2" x 2 1/2" x 1"
dimensions	5.21x7.15x3.16 "
weight	1.7 lb
packaging	-
d1	2.63
DN1	-
l1	2.94
z1	1.04
d2	2.63
DN2	-
l2	2.94
z2	1.04
d3	1.13
DN3	-
l3	2.74
z3	1.77

10077766

size	2 1/2" x 2 1/2" x 1 1/4"
dimensions	4.58x7.15x3.16 "
weight	1.9 lb
packaging	-
d1	2.63
DN1	-
l1	3.06
z1	1.16
d2	2.63
DN2	-
l2	3.06
z2	1.16
d3	1.38
DN3	-
l3	2.85
z3	1.76

10077767

size	2 1/2" x 2 1/2" x 1 1/2"
dimensions	4.83x7.15x3.16 "
weight	2.05 lb
packaging	-
d1	2.62
DN1	-
l1	3.20
z1	1.30
d2	1.62
DN2	-
l2	3.09
z2	1.78
d3	2.62
DN3	-
l3	3.20
z3	1.30

10077768

size	2 1/2" x 2 1/2" x 2"
dimensions	-
weight	2.11 lb
packaging	-
d1	2.62
DN1	-
l1	3.44
z1	1.54
d2	2.12
DN2	-
l2	3.34
z2	1.75
d3	2.62
DN3	-
l3	3.44
z3	1.54

10066604

size	3" x 2" x 2"
dimensions	-
weight	5.08 lb
packaging	-
d1	3.23
DN1	-
l1	3.66
z1	1.56
d2	2.14
DN2	-
l2	3.58
z2	2.00
d3	2.14
DN3	-
l3	6.16
z3	4.65

10066136

size	3" x 2 1/2" x 2 1/2"
dimensions	5.90x10.93x3.68 "
weight	10.2 lb
packaging	-
d1	3.21
DN1	-
l1	4.03
z1	1.92
d2	3.19
DN2	-
l2	4.31
z2	2.33
d3	2.68
DN3	-
l3	6.93
z3	4.98

10077769

size	3" x 3" x 1/2"
dimensions	6.21x7.95x3.68 "
weight	1.7 lb
packaging	-
d1	3.12
DN1	-
l1	3.03
z1	0.93
d2	0.62
DN2	-
l2	2.61
z2	1.76
d3	3.12
DN3	-
l3	3.03
z3	0.93

10077770

size	3" x 3" x 3/4"
dimensions	6.05x7.95x3.68 "
weight	1.7 lb
packaging	-
d1	3.12
DN1	-
l1	3.03
z1	0.93
d2	0.88
DN2	-
l2	2.69
z2	1.80
d3	3.12
DN3	-
l3	3.03
z3	0.93

10077771

size	3" x 3" x 1"
dimensions	5.84x7.95x3.68 "
weight	1.7 lb
packaging	-
d1	3.13
DN1	-
l1	3.16
z1	1.06
d2	3.13
DN2	-
l2	3.16
z2	1.06
d3	1.13
DN3	-
l3	2.99
z3	2.02

10077772

size	3" x 3" x 1 1/4"
dimensions	5.09x7.95x3.68 "
weight	2.68 lb
packaging	-
d1	3.13
DN1	-
l1	3.28
z1	1.18
d2	3.13
DN2	-
l2	3.28
z2	1.18
d3	1.38
DN3	-
l3	3.10
z3	2.01

10077773

size	3" x 3" x 1 1/2"
dimensions	5.34x7.95x3.68 "
weight	2.82 lb
packaging	-
d1	3.12
DN1	-
l1	3.42
z1	1.32
d2	1.62
DN2	-
l2	3.34
z2	2.03
d3	3.12
DN3	-
l3	3.42
z3	1.32

10077774

size	3" x 3" x 2"
dimensions	5.59x7.95x3.68 "
weight	2.87 lb
packaging	-
d1	3.12
DN1	-
l1	3.66
z1	1.56
d2	2.12
DN2	-
l2	3.59
z2	2.00
d3	3.12
DN3	-
l3	3.66
z3	1.56

10077775

size	3" x 3" x 2 1/2"
dimensions	5.90x7.95x3.68 "
weight	3.13 lb
packaging	-
d1	3.13
DN1	-
l1	3.95
z1	1.85
d2	3.13
DN2	-
l2	3.95
z2	1.85
d3	2.63
DN3	-
l3	4.05
z3	2.15

10077776

size	4" x 4" x 1/2"
dimensions	7.33x9.84x4.70 "
weight	1.7 lb
packaging	-
d1	4.12
DN1	-
l1	3.58
z1	1.08
d2	0.62
DN2	-
l2	3.09
z2	2.24
d3	4.12
DN3	-
l3	3.58
z3	1.08

10077777

size	4" x 4" x 3/4"
dimensions	7.17x9.84x4.70 "
weight	1.7 lb
packaging	-
d1	4.12
DN1	-
l1	3.58
z1	1.08
d2	0.88
DN2	-
l2	3.21
z2	2.32
d3	4.12
DN3	-
l3	3.58
z3	1.08

10077778

size	4" x 4" x 1"
dimensions	6.96x9.84x4.70 "
weight	1.7 lb
packaging	-
d1	4.13
DN1	-
l1	3.86
z1	1.36
d2	4.13
DN2	-
l2	3.86
z2	1.36
d3	1.13
DN3	-
l3	3.49
z3	2.52

10077779

size	4" x 4" x 1 1/4"
dimensions	6.10x9.84x4.70 "
weight	4.97 lb
packaging	-
d1	4.13
DN1	-
l1	3.86
z1	1.36
d2	4.13
DN2	-
l2	3.86
z2	1.36
d3	1.38
DN3	-
l3	3.59
z3	2.50

10077780

size	4" x 4" x 1 1/2"
dimensions	6.35x9.84x4.70 "
weight	5.1 lb
packaging	-
d1	4.12
DN1	-
l1	3.86
z1	1.36
d2	1.62
DN2	-
l2	3.83
z2	2.52
d3	4.12
DN3	-
l3	3.86
z3	1.36

10077781

size	4" x 4" x 2"
dimensions	-
weight	5.14 lb
packaging	-
d1	4.13
DN1	-
l1	4.09
z1	1.59
d2	4.13
DN2	-
l2	4.09
z2	1.59
d3	2.13
DN3	-
l3	4.12
z3	2.53

10077782

size	4" x 4" x 2 1/2"
dimensions	6.91x9.84x4.70 "
weight	5.26 lb
packaging	-
d1	4.13
DN1	-
l1	4.39
z1	1.89
d2	4.13
DN2	-
l2	4.39
z2	1.89
d3	2.63
DN3	-
l3	4.55
z3	2.65

10077783

size	4" x 4" x 3"
dimensions	7.28x9.84x4.70 "
weight	8.55 lb
packaging	-
d1	4.12
DN1	-
l1	4.61
z1	2.11
d2	3.12
DN2	-
l2	4.79
z2	2.69
d3	4.12
DN3	-
l3	4.61
z3	2.11

Specifications

article	ApolloPress tee – reducing, large (P x P x P)
article number with gtin	811R.XL
manufacturer	Aalberts integrated piping systems Americas, Inc. (Apollo)
weight	8.55 lb
dimensions	7.28x9.84x4.70 "
color	copper
materials	copper (CW024A (UNS C12200))
finishing	none
shape	T-piece, reducer, 90º
connection type	press (V)
sealing	EPDM
max operating pressure liquid	300 psi
min. medium temperature	32 °F
max medium temperature	250 °F
product group	fittings (accessories (fittings))
ETIM class	EC003025 Fitting with 3 connections
brand	Apollo
series	ApolloPress
product type	811R.XL
unsps	40174612
ETIM	{"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Material connection 3":"Copper","Material quality connection 3":"Cu-DHP (CW024A)","Surface protection connection 3":"Untreated","Surface treatment connection 3":"Untreated","Model":"T-piece","Angle":"90°","Reducing":"Yes","Multi-part":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Connection 3":"Press sleeve","Contour code connection 3":"V","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","Main colour fitting":"Copper","Max. operating pressure at 20 °C (imperial)":"300psi","Medium temperature (continuous) (imperial)":"32°F - 250°F","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With thermal insulation":"No","With buffer stud":"Yes","Capped":"No","With connection indicator":"Yes","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
