Attributes
| Group Code | 811.XL |
|---|---|
| Product Type | accessories-fittings |
| Brand Series | apollo-apollopress |
| Applications | potable water, heating, cooling, steam, compressed air, sprinkler, vacuum |
| Approvals | CRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc |
| Solutions | fire protection, utility, industry |
Description
The ApolloPress® 811 Large Diameter Press Tee features a lead free dezincification resistant copper body, a patented stainless-steel solid cross-section grab ring, a nylon separation ring and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
- Lead Free Construction
- Leak Before Press® Technology
- Visual Element, Break Away Band (Pat# 9,532.451)
Variations (3)
10077760
| size | 2 1/2" |
|---|---|
| dimensions | 5.33x7.15x3.16 " |
| weight | 2.12 lb |
| packaging | - |

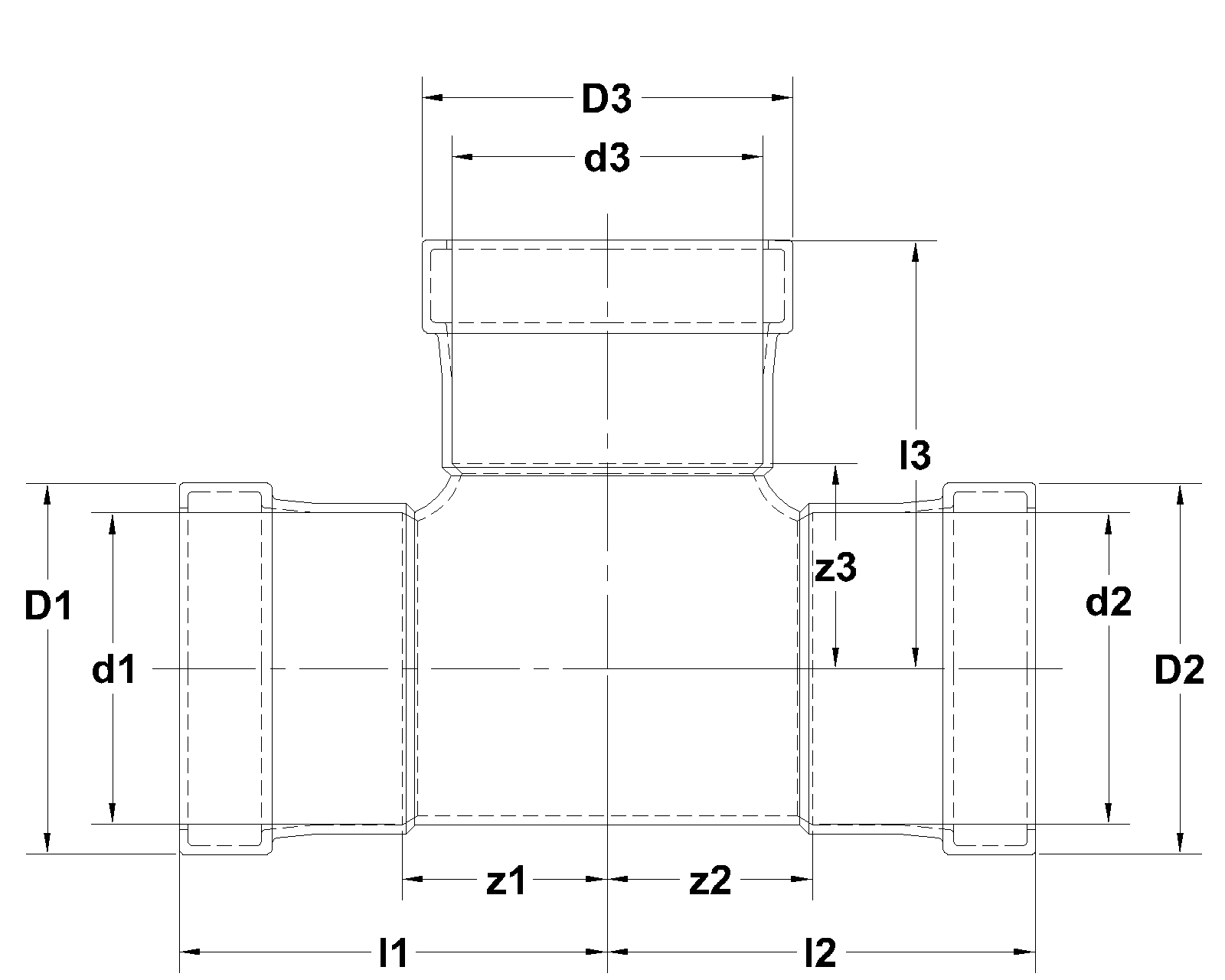

| d1 | 2.62 |
| DN1 | - |
| l1 | 3.73 |
| z1 | 1.83 |
| d2 | 2.62 |
| DN2 | - |
| l2 | 3.84 |
| z2 | 1.94 |
| d3 | 2.62 |
| DN3 | - |
| l3 | 3.73 |
| z3 | 1.83 |
10077761
| size | 3" |
|---|---|
| dimensions | 6.40x7.95x3.68 " |
| weight | 3.3 lb |
| packaging | - |
| d1 | 3.12 |
| DN1 | - |
| l1 | 4.07 |
| z1 | 1.97 |
| d2 | 3.12 |
| DN2 | - |
| l2 | 4.07 |
| z2 | 1.97 |
| d3 | 3.12 |
| DN3 | - |
| l3 | 4.31 |
| z3 | 2.21 |
10077762
| size | 4" |
|---|---|
| dimensions | - |
| weight | 6.13 lb |
| packaging | - |
| d1 | 4.12 |
| DN1 | - |
| l1 | 5.10 |
| z1 | 2.60 |
| d2 | 4.12 |
| DN2 | - |
| l2 | 5.22 |
| z2 | 2.72 |
| d3 | 4.12 |
| DN3 | - |
| l3 | 5.10 |
| z3 | 2.60 |
Specifications
| article | ApolloPress tee, large (P x P x P) |
|---|---|
| article number with gtin | 811.XL |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 6.13 lb |
| color | copper |
| materials | copper (CW024A (UNS C12200)) |
| finishing | none |
| shape | T-piece, 90º |
| connection type | press (V) |
| sealing | EPDM |
| max operating pressure liquid | 300 psi |
| min. medium temperature | 32 °F |
| max medium temperature | 250 °F |
| product group | fittings (accessories (fittings)) |
| ETIM class | EC003025 Fitting with 3 connections |
| country of origin | Hungary |
| brand | Apollo |
| series | ApolloPress |
| product type | 811.XL |
| unsps | 40174612 |
| ETIM | {"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Material connection 3":"Copper","Material quality connection 3":"Cu-DHP (CW024A)","Surface protection connection 3":"Untreated","Surface treatment connection 3":"Untreated","Model":"T-piece","Angle":"90°","Reducing":"No","Multi-part":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Connection 3":"Press sleeve","Contour code connection 3":"V","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","Main colour fitting":"Copper","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With thermal insulation":"No","With buffer stud":"Yes","Capped":"No","With connection indicator":"Yes","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
