Apollo Apollopress

ApolloPress fitting reducer, large (FTG x P)

Scraped SKU: 818.XL 2026-06-05 04:33:14

Attributes

Group Code818.XL
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc
Solutionsfire protection, utility, industry

Description

The ApolloPress® 818 Large Diameter Press Reducer features a lead free dezincification resistant copper body, a patented stainless-steel solid cross-section grab ring, a nylon separation ring and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
  • Lead Free Construction
  • Leak Before Press® Technology
  • Visual Element, Break Away Band (Pat# 9,532.451)

Variations (14)

10068001

sizeØ2 1/2" x 3/4"
dimensions2.63x4.50x2.63 "
weight0.68 lb
packaging-

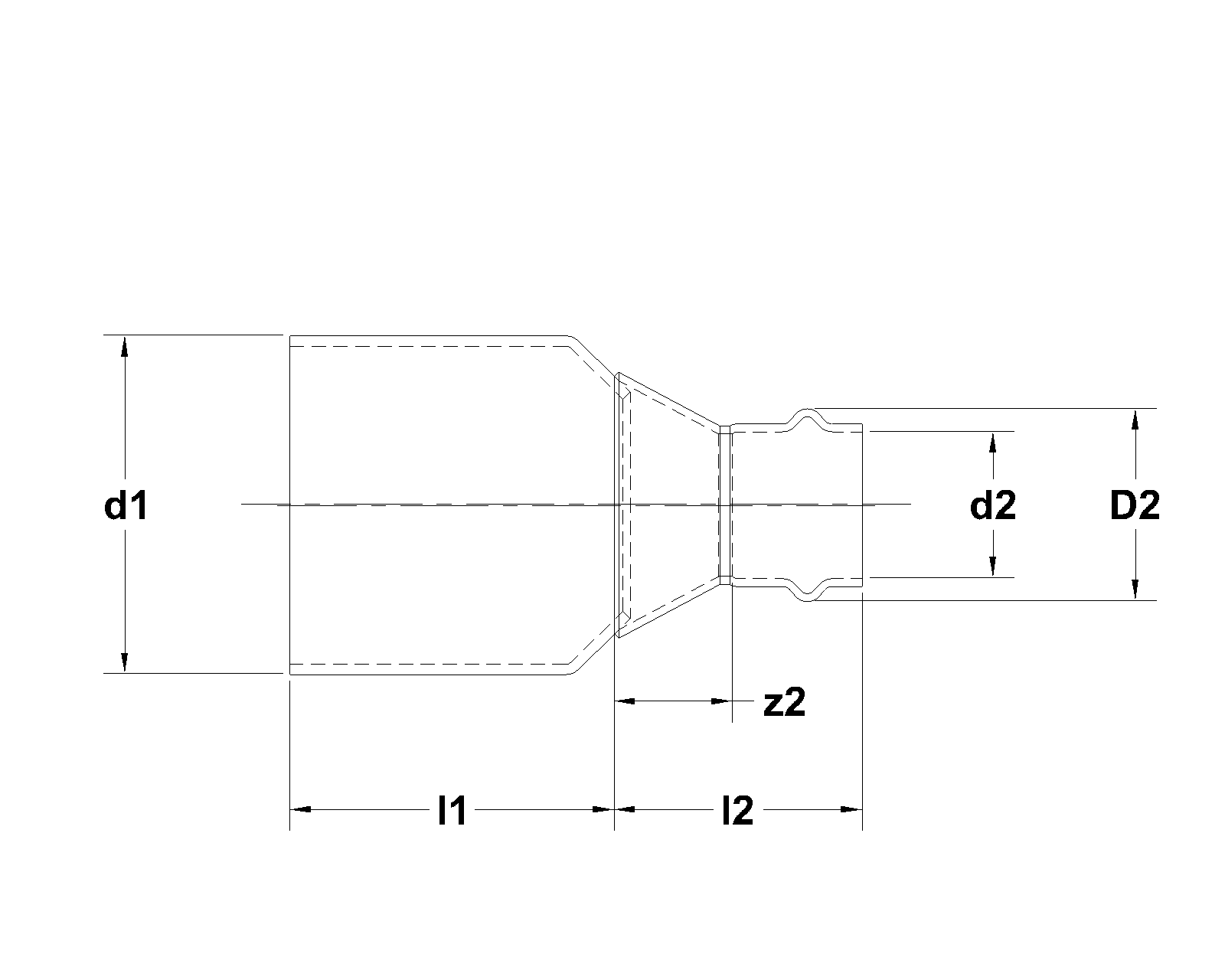

d12.62
DN1-
l12.88
d20.88
DN2-
l21.64
z20.74

10068002

sizeØ2 1/2" x 1"
dimensions2.63x4.31x2.63 "
weight0.71 lb
packaging-
d12.62
DN1-
l12.81
d21.12
DN2-
l21.64
z20.67

10068017

sizeØ2 1/2" x 1 1/4"
dimensions2.63x4.18x2.63 "
weight0.68 lb
packaging-
d12.63
DN1-
l12.67
d21.38
DN2-
l21.57
z20.53

10068004

sizeØ2 1/2" x 1 1/2"
dimensions2.63x4.28x2.63 "
weight0.79 lb
packaging-
d12.62
DN1-
l12.54
d21.62
DN2-
l21.71
z20.40

10075165

sizeØ2 1/2" x 2"
dimensions2.63x4.36x2.63 "
weight1.38 lb
packaging-
d12.63
DN1-
l12.57
d22.13
DN2-
l21.79
z20.28

10068019

sizeØ3" x 3/4"
dimensions3.13x4.92x3.13 "
weight1.03 lb
packaging-
d13.12
DN1-
l13.10
d20.88
DN2-
l21.72
z20.82

10068008

sizeØ3" x 1 1/4"
dimensions3.13x4.60x3.13 "
weight1.03 lb
packaging-
d13.12
DN1-
l12.88
d21.38
DN2-
l21.65
z20.60

10068020

sizeØ3" x 1 1/2"
dimensions3.13x4.70x3.13 "
weight1.13 lb
packaging-
d13.12
DN1-
l12.75
d21.62
DN2-
l21.78
z20.47

10068010

sizeØ3" x 2"
dimensions3.13x4.57x3.13 "
weight1.13 lb
packaging-
d13.12
DN1-
l12.68
d22.12
DN2-
l21.93
z20.42

10057500

sizeØ3" x 2 1/2"
dimensions3.16x5.09x3.16 "
weight1.32 lb
packaging-
d13.13
DN1-
l12.85
d22.63
DN2-
l22.24
z20.34

10068022

sizeØ4" x 3/4"
dimensions4.13x5.93x4.13 "
weight2.08 lb
packaging-
d14.12
DN1-
l13.88
d20.88
DN2-
l21.98
z21.08

10068016

sizeØ4" x 2"
dimensions4.13x5.60x4.13 "
weight2.18 lb
packaging-
d14.12
DN1-
l13.44
d22.12
DN2-
l22.19
z20.69

10057506

sizeØ4" x 3"
dimensions4.13x5.90x4.13 "
weight2.45 lb
packaging-
d14.13
DN1-
l13.23
d23.13
DN2-
l22.68
z20.58

10057503

sizeØ4" x 2 1/2"
dimensions4.13x6.02x4.13 "
weight2.08 lb
packaging-
d14.13
DN1-
l13.32
d22.63
DN2-
l22.55
z20.65

Specifications

articleApolloPress fitting reducer, large (FTG x P)
article number with gtin818.XL
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight2.08 lb
dimensions4.13x6.02x4.13 "
colorcopper
materialscopper (CW024A (UNS C12200))
finishingnone
shapestraight, reducer
connection typetube end, press (V)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003024 Fitting with 2 connections
country of originHungary
brandApollo
seriesApolloPress
product type818.XL
unsps40173613
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Copper","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"No","System specific":"No","Connection 1":"Soldered end","Connection 2":"Press sleeve","Contour code connection 2":"V","Main colour fitting":"Copper","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.67bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
