ApolloPress 90° elbow – female (P x FPT)

Scraped SKU: 8707-3 2026-06-05 04:33:14

Attributes

Group Code8707-3
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61
Solutionsfire protection, utility, industry

Description

The ApolloPress® 8707-3 Small Diameter Press 90° Elbow with Female NPT features a lead free dezincification resistant copper body and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
  • Lead Free Construction
  • Leak Before Press® Technology

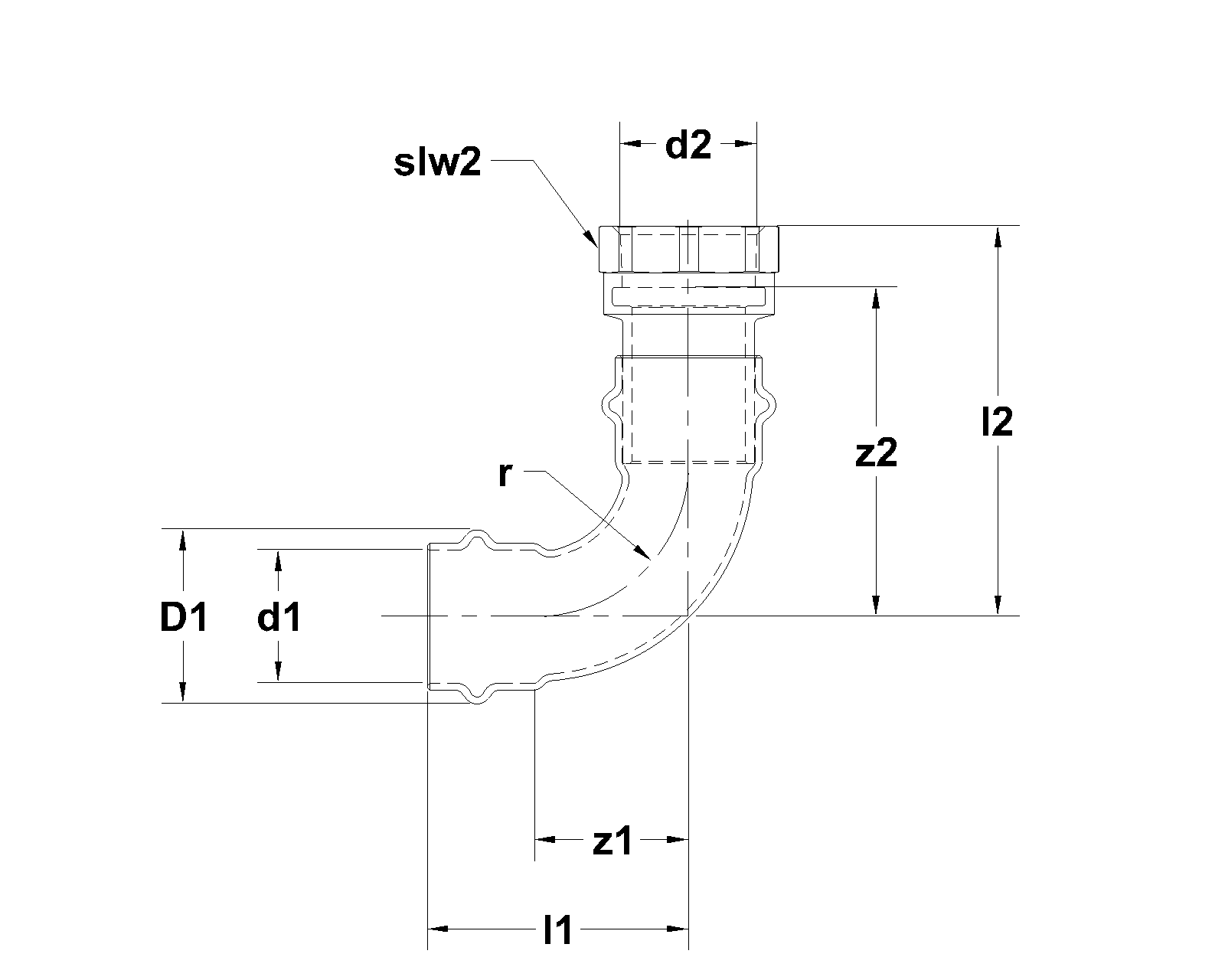

Variations (10)

10066566

size1/2" x FPT3/8"
dimensions2.74x1.97x0.94 "
weight0.18 lb
packaging-
d10.63
DN1-
l11.50
z10.75
d20.68
DN2-
l21.98
z21.54
slw21
radius0.75
angle-

10066560

size1/2" x FPT1/2"
dimensions3.00x2.10x1.02 "
weight0.21 lb
packaging-
d10.63
DN1-
l11.50
z10.75
d20.84
DN2-
l22.44
z22.04
slw21.1
radius0.75
angle-

10066567

size1/2" x FPT3/4"
dimensions2.99x2.13x1.26 "
weight0.26 lb
packaging-
d10.64
DN1-
l11.50
z10.75
d20.93
DN2-
l22.52
z22.10
slw21.26
radius0.75
angle-

10066568

size3/4" x FPT1/2"
dimensions3.47x2.58x1.24 "
weight0.3 lb
packaging-
d10.88
DN1-
l11.96
z11.04
d20.72
DN2-
l22.85
z22.45
slw21.1
radius1.05
angle-

10066561

size3/4" x FPT3/4"
dimensions3.54x2.58x1.25 "
weight0.35 lb
packaging-
d10.88
DN1-
l11.96
z11.04
d21.05
DN2-
l22.92
z22.50
slw21.26
radius1.05
angle-

10066569

size1" x FPT1/2"
dimensions3.68x2.97x1.49 "
weight0.44 lb
packaging-
d11.14
DN1-
l12.23
z11.31
d20.72
DN2-
l22.94
z22.55
slw21.1
radius1.35
angle-

10066562

size1" x FPT1"
dimensions4.07x2.99x1.53 "
weight0.58 lb
packaging-
d11.21
DN1-
l12.23
z11.31
d21.31
DN2-
l23.33
z22.81
slw21.61
radius1.35
angle-

10066563

size1 1/4" x FPT 1 1/4"
dimensions4.91x3.92x1.93 "
weight0.77 lb
packaging-
d11.39
DN1-
l12.96
z11.87
d21.51
DN2-
l24.04
z23.49
slw21.97
radius1.65
angle-

10066564

size1 1/2" x FPT1 1/2"
dimensions5.63x4.43x2.20 "
weight1.29 lb
packaging-
d11.68
DN1-
l13.32
z12.02
d21.75
DN2-
l24.04
z20.53
slw22.36
radius1.95
angle-

10066565

size2" x FPT2"
dimensions6.60x5.43x2.74 "
weight2.61 lb
packaging-
d12.16
DN1-
l14.11
z12.52
d22.22
DN2-
l25.32
z20.56
slw22.76
radius2.55
angle-

Specifications

articleApolloPress 90° elbow – female (P x FPT)
article number with gtin8707-3
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight2.61 lb
dimensions6.60x5.43x2.74 "
colorcopper, brass
materialscopper, brass (CW024A (UNS C12200), C27451 (lead-free))
finishingnone
shapeElbow, reducer, 90º
connection typepress (V), FPT - female thread conical (NPT)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003024 Fitting with 2 connections
country of originUnited States
brandApollo
seriesApolloPress
product type8707-3
unsps40172812
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Copper","Material quality connection 1":"Cu-DHP (CW024A)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Brass","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Bend","Model":"1-part","Bend angle":"90°","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Internal thread conical (NPT)","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11111°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.68bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
