Apollo Apollopress

ApolloPress 90° elbow – drop ear (P x FPT)

Scraped SKU: 8707-3-5 2026-06-05 04:33:14

Attributes

Group Code8707-3-5
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, UL, ULc
Solutionsfire protection, utility, industry

Variations (3)

10075367

size1/2" x FPT3/8"
dimensions1.96x3.77x2.59 "
weight0.46 lb
packaging-

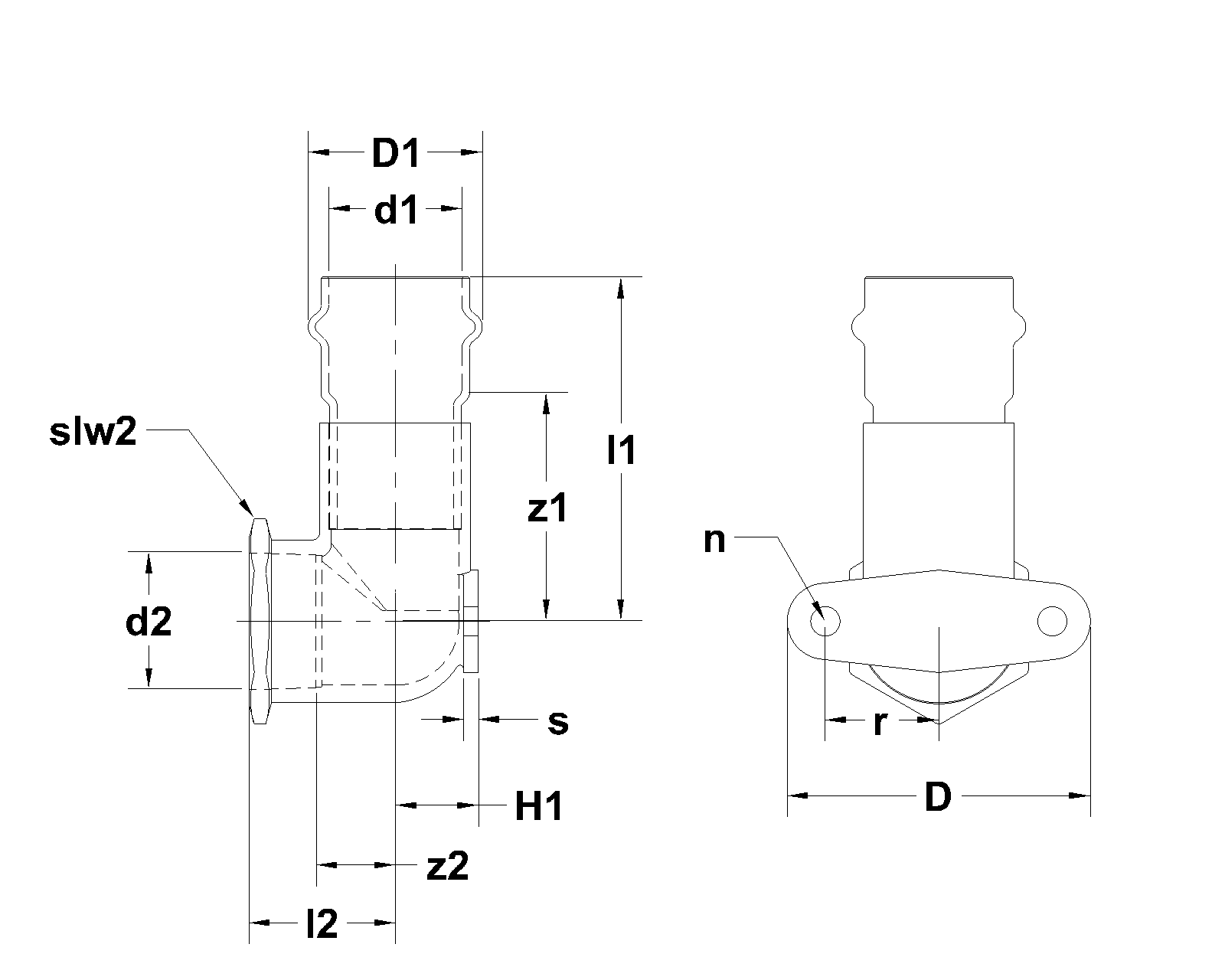

d10.63
DN1-
l12.06
z11.21
d20.38
DN2-
l20.71
z20.36
slw21
radius0.75
angle-

10075366

size1/2" x FPT1/2"
dimensions1.35x2.71x2.12 "
weight0.27 lb
packaging-
d10.62
DN1-
l12.11
z11.27
d20.50
DN2-
l20.77
z20.38
slw21.1
radius0.75
angle-

10075368

size3/4" x FPT3/4"
dimensions1.62x3.28x2.34 "
weight0.46 lb
packaging-
d10.88
DN1-
l12.66
z11.74
d20.75
DN2-
l20.91
z20.43
slw21.26
radius1.05
angle-

Specifications

articleApolloPress 90° elbow – drop ear (P x FPT)
article number with gtin8707-3-5
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight0.46 lb
dimensions1.62x3.28x2.34 "
colorcopper, brass
materialscopper, brass (CW024A (UNS C12200), C27451 (lead-free))
finishingnone
shapeElbow, reducer, 90º
connection typepress (V), FPT - female thread conical (NPT)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003099 Wall plate
country of originUnited States
brandApollo
seriesApolloPress
product type8707-3-5
unsps40172812
ETIM
{"etim-class":"EC003099 Wall plate","Surface protection":"Untreated","System specific":"No","Connection":"Press sleeve","Medium temperature (continuous)":"121.11111°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.68bar","Max. operating pressure at 20 °C (imperial)":"300psi","Contour code":"V","With connection indicator":"No","With protective cap":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
