Apollo Apollopress

ApolloPress union (P x P)

Scraped SKU: 8733 2026-06-05 04:33:14

Attributes

Group Code8733
Product Typeaccessories-fittings
Brand Seriesapollo-apollopress
Applicationspotable water, heating, cooling, steam, compressed air, sprinkler, vacuum
ApprovalsCRN, FM, IAPMO/ANSI/CAN Z1117, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61
Solutionsfire protection, utility, industry

Description

The ApolloPress® 8733 Small Diameter Press Union features a lead free dezincification resistant brass body and an EPDM o-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
  • Lead Free Construction
  • Leak Before Press® Technology

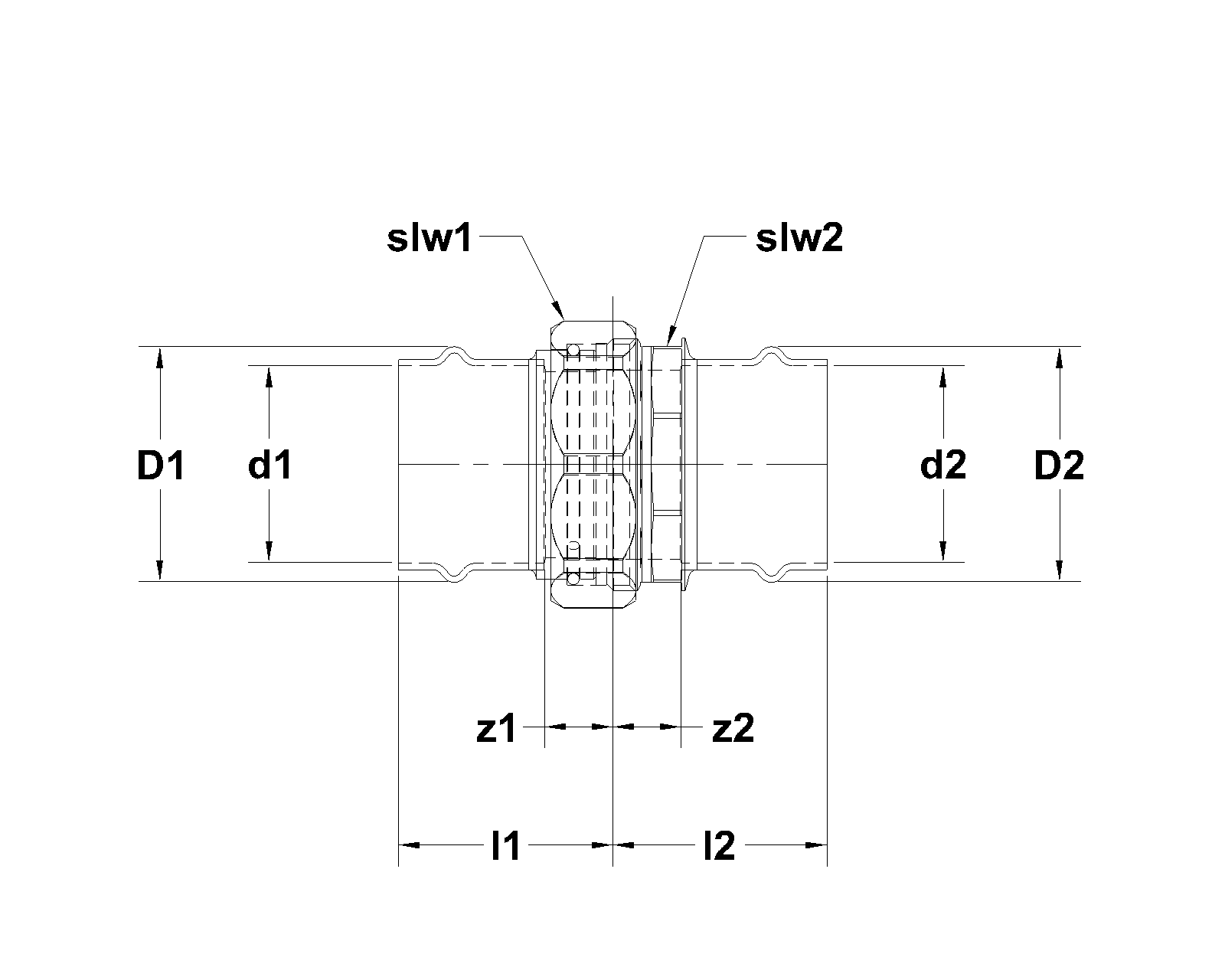

Variations (6)

10075860

size1/2"
dimensions1.26x2.99x1.26 "
weight0.31 lb
packaging-
d10.62
DN1-
l11.48
z10.72
slw11.61
d20.62
DN2-
l21.48
z20.72
slw21.1

10075862

size3/4"
dimensions1.52x3.69x1.52 "
weight0.48 lb
packaging-
d10.88
DN1-
l11.82
z10.91
slw11.81
d20.88
DN2-
l21.82
z20.91
slw21.42

10075864

size1"
dimensions1.94x3.68x1.94 "
weight0.76 lb
packaging-
d11.12
DN1-
l11.90
z10.98
slw12.17
d21.12
DN2-
l21.90
z20.98
slw21.61

10075866

size1 1/4"
dimensions2.19x3.83x2.19 "
weight0.9 lb
packaging-
d11.38
DN1-
l11.89
z10.85
slw12.76
d21.38
DN2-
l21.89
z20.85
slw21.97

10075868

size1 1/2"
dimensions2.45x3.95x2.45 "
weight1.19 lb
packaging-
d11.62
DN1-
l11.96
z10.53
slw12.95
d21.62
DN2-
l21.96
z20.53
slw22.36

10075870

size2"
dimensions3.12x4.65x3.12 "
weight1.94 lb
packaging-
d12.12
DN1-
l12.31
z10.73
slw13.66
d22.12
DN2-
l22.31
z20.73
slw22.91

Specifications

articleApolloPress union (P x P)
article number with gtin8733
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight1.94 lb
dimensions3.12x4.65x3.12 "
colorbrass
materialsbrass (C27451 (lead-free))
finishingnone
shapestraight
connection typepress (V)
sealingEPDM
max operating pressure liquid300 psi
min. medium temperature32 °F
max medium temperature250 °F
product groupfittings (accessories (fittings))
ETIM classEC003024 Fitting with 2 connections
country of originUnited States
brandApollo
seriesApolloPress
product type8733
unsps40174912
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Brass","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Brass","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"3-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Press sleeve","Contour code connection 2":"V","Main colour fitting":"Brass","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"121.11111°C","Medium temperature (continuous) (imperial)":"32°F - 250°F","Max. operating pressure at 20 °C":"20.68bar","Max. operating pressure at 20 °C (imperial)":"300psi","With thermal insulation":"No","With sealing rings/gaskets":"Yes","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Certificate] Apollo SmartPress IAPMO NSF ANSI 372-2022 Open PDF
[Certificate] Apollo SmartPress IAPMO UPC Open PDF
[Certificate] ApolloPress ICC-ES Open PDF
[Certificate] CRN_0A15729 Open PDF
[Installation- & Maintenance Document] ApolloPress Installation Instructions Open PDF
[Other Document] ApolloPress Catalog Open PDF
[Other Document] ApolloPress Brochure Open PDF
