Attributes
| Group Code | 400G-LD |
|---|---|
| Brand Series | apollo-powerpress-ld-gas |
| Applications | natural gas, compressed air |
| Approvals | CRN, CSA LC-4, IAPMO LC-4, ICC LC4 |
| Solutions | utility, industry |
Description
Apollo PowerPress® 400G-LD is a straight coupling for Gas applications designed for thick wall steel pipe. By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes 2-1/2" up to and including 4". outstanding corrosion resistance due to ZnNi coatingclear identification of materials and dimensionsVisu-Control-foil and Leak Before Pressed-function
• outstanding corrosion resistance due to ZnNi coating
• clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function
• outstanding corrosion resistance due to ZnNi coating
• clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function
Variations (3)
123461076
| size | 2-1/2" |
|---|---|
| dimensions | 0.19x0.14x0.14 " |
| weight | 1.73 lb |
| packaging | - |

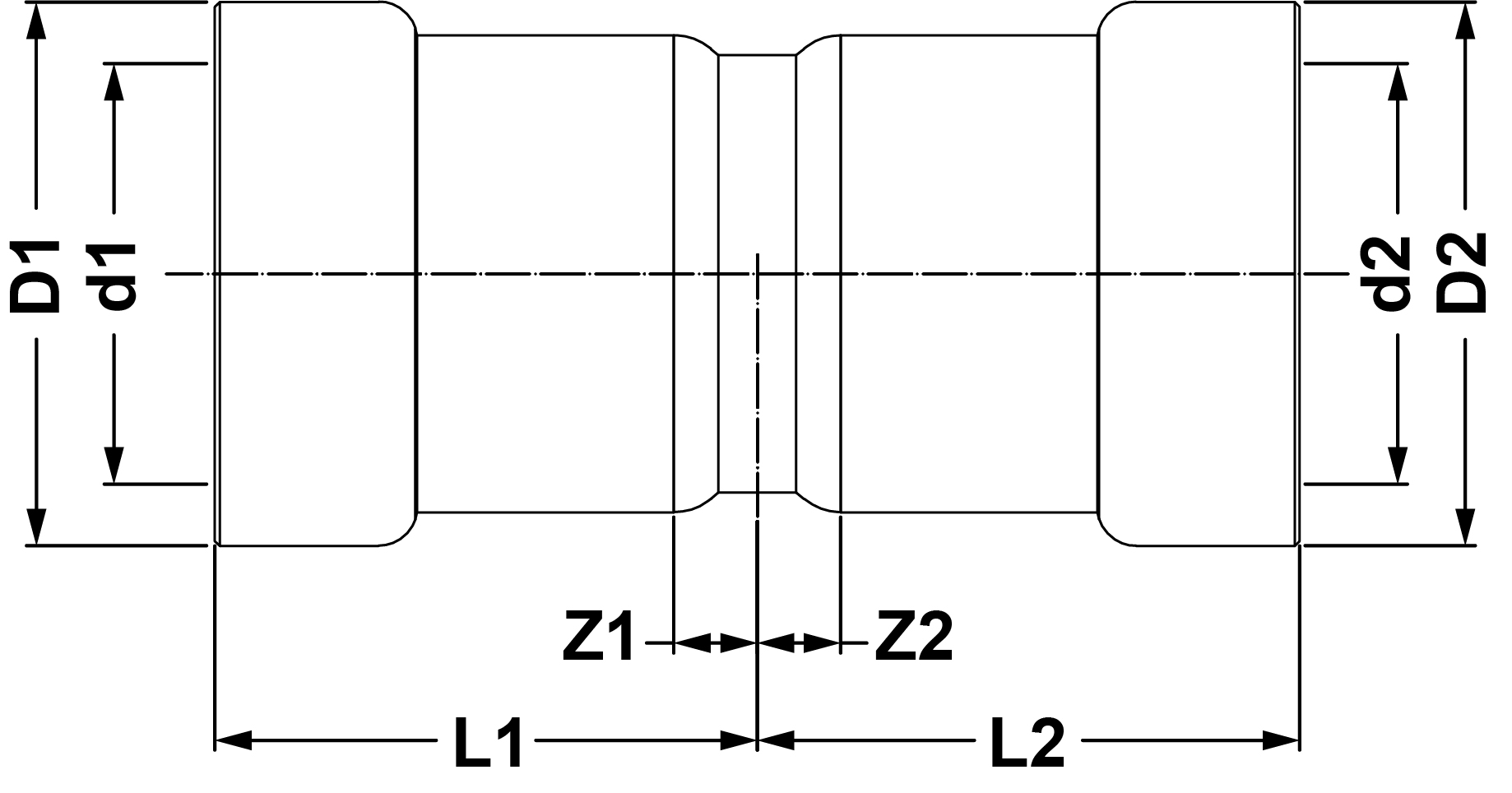

| d1 | 2.93 |
| DN1 | - |
| l1 | 2.46 |
| z1 | 0.59 |
| d2 | 2.93 |
| DN2 | - |
| l2 | 2.46 |
| z2 | 0.59 |
| es2 | - |
123461077
| size | 3" |
|---|---|
| dimensions | 0.24x0.16x0.16 " |
| weight | 2.41 lb |
| packaging | - |
| d1 | 3.56 |
| DN1 | - |
| l1 | 2.99 |
| z1 | 0.69 |
| d2 | 3.56 |
| DN2 | - |
| l2 | 2.46 |
| z2 | 0.69 |
| es2 | 3.56 |
123461078
| size | 4" |
|---|---|
| dimensions | 0.31x0.20x0.20 " |
| weight | 4.01 lb |
| packaging | - |
| d1 | 2.93 |
| DN1 | - |
| l1 | 3.94 |
| z1 | 0.81 |
| d2 | 4.58 |
| DN2 | - |
| l2 | 3.94 |
| z2 | 0.81 |
| es2 | - |
Specifications
| article | Apollo PowerPress Gas coupling with stop (2x press) |
|---|---|
| article number with gtin | 400G-LD |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 4.01 lb |
| dimensions | 0.31x0.20x0.20 " |
| color | grey |
| materials | steel (St 35 (1.0308)) |
| shape | straight |
| connection type | press |
| pressure rating (PN) | PN 5 |
| sealing | HNBR |
| min. medium temperature | -40 °F |
| max medium temperature | 194 °F |
| product group | fittings |
| country of origin | China |
| brand | Apollo |
| series | PowerPress LD Gas |
| product type | 400G-LD |
PDF Documents
[Datasheet] 400G-LD- Submittal
Open PDF
