Attributes
| Group Code | 401G-LD |
|---|---|
| Product Type | accessories-fittings |
| Brand Series | apollo-powerpress-ld-gas |
| Applications | natural gas, compressed air |
| Approvals | CRN, CSA LC-4, IAPMO LC-4, ICC LC4 |
| Solutions | utility, industry |
Description
Apollo PowerPress® 401G-LD is a straight coupling without stop for Gas applications designed for thick wall steel pipe.
By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured.
The range consists of DW-profile press fittings and valves in sizes 2-1/2" up to and including 4".
• outstanding corrosion resistance due to ZnNi coating
• clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function
By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured.
The range consists of DW-profile press fittings and valves in sizes 2-1/2" up to and including 4".
• outstanding corrosion resistance due to ZnNi coating
• clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function
Variations (3)
123461073
| size | 2-1/2" |
|---|---|
| dimensions | 0.19x0.14x0.14 " |
| weight | 1.73 lb |
| packaging | - |

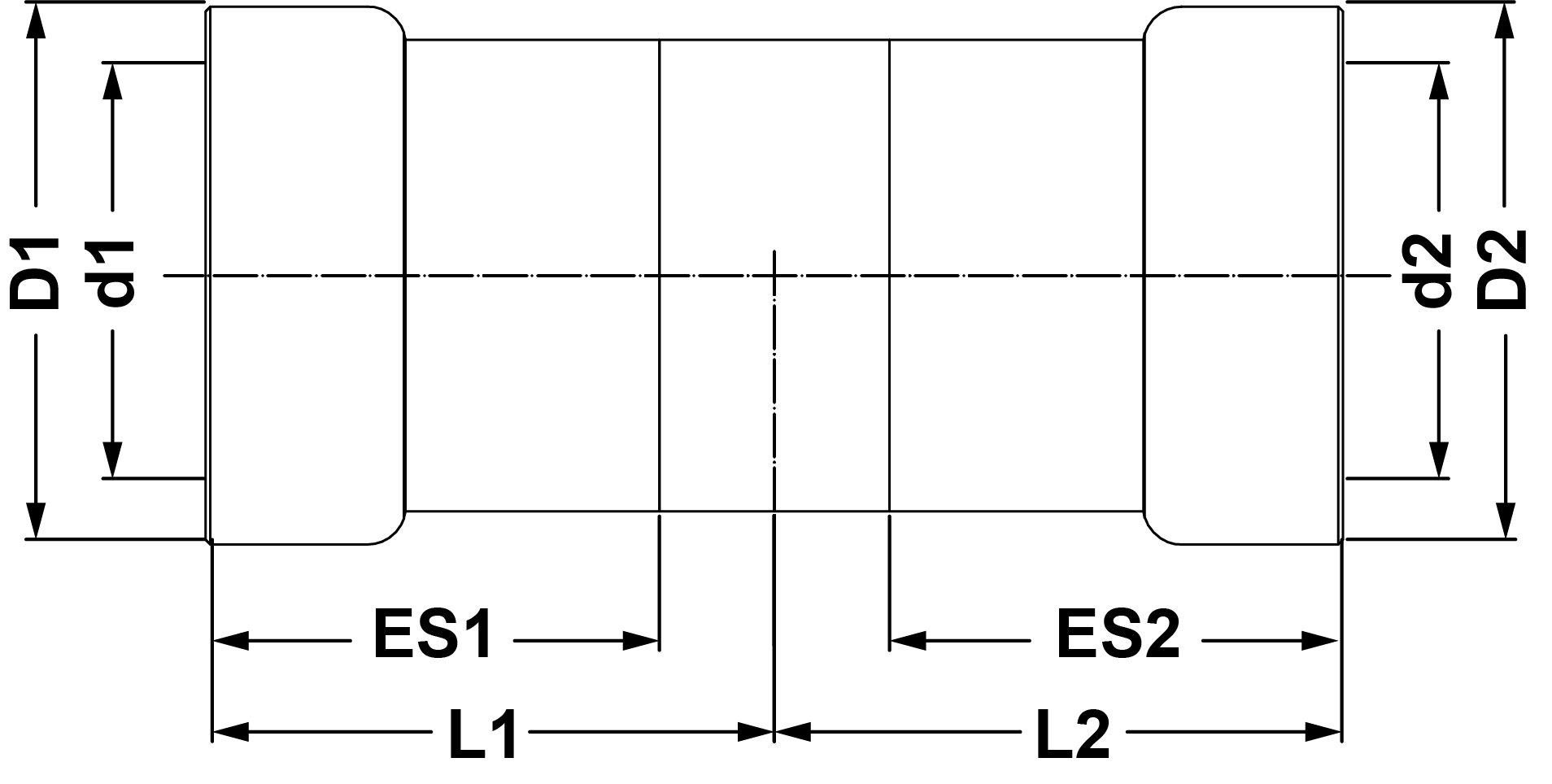

| d1 | 2.93 |
| DN1 | - |
| l1 | 2.46 |
| d2 | 2.93 |
| DN2 | - |
| l2 | 2.46 |
123461074
| size | 3" |
|---|---|
| dimensions | 0.24x0.16x0.16 " |
| weight | 2.43 lb |
| packaging | - |
| d1 | 3.56 |
| DN1 | - |
| l1 | 2.99 |
| d2 | 3.56 |
| DN2 | - |
| l2 | 2.99 |
123461075
| size | 4" |
|---|---|
| dimensions | 0.31x0.20x0.20 " |
| weight | 3.96 lb |
| packaging | - |
| d1 | 4.58 |
| DN1 | - |
| l1 | 3.94 |
| d2 | 4.58 |
| DN2 | - |
| l2 | 3.94 |
Specifications
| article | Apollo® PowerPress HNBR Coupling - No Stop, PxP |
|---|---|
| article number with gtin | 401G-LD |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 3.96 lb |
| dimensions | 0.31x0.20x0.20 " |
| color | grey |
| materials | steel (St 35 (1.0308)) |
| shape | straight |
| connection type | press |
| pressure rating (PN) | PN 5 |
| sealing | HNBR |
| min. medium temperature | -40 °F |
| product group | fittings (accessories (fittings)) |
| country of origin | China |
| brand | Apollo |
| series | PowerPress LD Gas |
| product type | Fittings |
PDF Documents
[Datasheet] 401G-LD- Submittal
Open PDF
