Attributes
| Group Code | 404G-LD |
|---|---|
| Brand Series | apollo-powerpress-ld-gas |
| Applications | natural gas, compressed air |
| Approvals | CRN, CSA LC-4, IAPMO LC-4, ICC LC4 |
| Solutions | utility, industry |
Description
Apollo PowerPress® 404G-LD is a male thread adapter for Gas applications designed for thick wall steel pipe.
By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured.
The range consists of DW-profile press fittings and valves in sizes 2-1/2" up to and including 4". outstanding corrosion resistance due to ZnNi coatingclear identification of materials and dimensionsVisu-Control-foil and Leak Before Pressed-function.
• outstanding corrosion resistance due to ZnNi coating
• clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function
By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured.
The range consists of DW-profile press fittings and valves in sizes 2-1/2" up to and including 4". outstanding corrosion resistance due to ZnNi coatingclear identification of materials and dimensionsVisu-Control-foil and Leak Before Pressed-function.
• outstanding corrosion resistance due to ZnNi coating
• clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

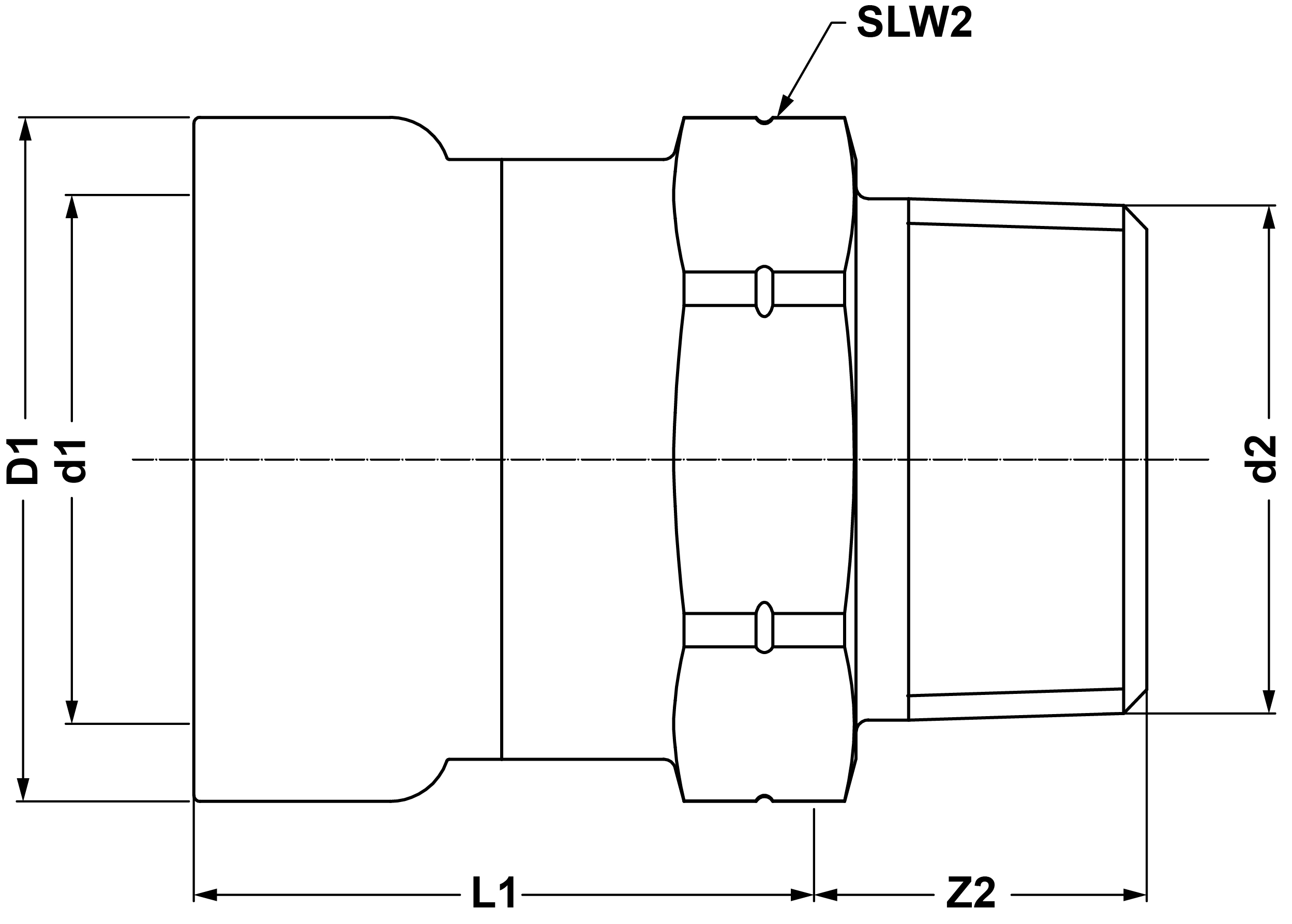

Variations (3)
123461067
| size | 2-1/2" |
|---|---|
| dimensions | 0.18x0.14x0.14 " |
| weight | 1.72 lb |
| packaging | - |
| d1 | 2.93 |
| DN1 | - |
| d2 | 2.88 |
| DN2 | - |
123461068
| size | 3" |
|---|---|
| dimensions | 0.21x0.16x0.16 " |
| weight | 2.34 lb |
| packaging | - |
| d1 | 3.56 |
| DN1 | - |
| d2 | 3.50 |
| DN2 | - |
123461069
| size | 4" |
|---|---|
| dimensions | 0.25x0.20x0.20 " |
| weight | 4.12 lb |
| packaging | - |
| d1 | 4.58 |
| DN1 | - |
| d2 | 2.88 |
| DN2 | - |
Specifications
| article | Apollo® PowerPress HNBR Adapter - Male, PxMPT |
|---|---|
| article number with gtin | 404G-LD |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 4.12 lb |
| dimensions | 0.25x0.20x0.20 " |
| color | grey |
| materials | steel (St 35 (1.0308)) |
| shape | straight |
| connection type | press, MPT - male thread conical (NPT) |
| pressure rating (PN) | PN 5 |
| sealing | HNBR |
| min. medium temperature | -40 °F |
| max medium temperature | 194 °F |
| country of origin | China |
| brand | Apollo |
| series | PowerPress LD Gas |
| product type | fittings |
PDF Documents
[Datasheet] 404G-LD- Submittal
Open PDF
