Attributes
| Group Code | 411G-LD |
|---|---|
| Product Type | accessories-fittings |
| Brand Series | apollo-powerpress-ld-gas |
| Applications | natural gas, compressed air |
| Approvals | CRN, CSA LC-4, IAPMO LC-4, ICC LC4 |
| Solutions | utility, industry |
Description
Apollo PowerPress® 411G-LD is a T-piece for natural gas applications, designed for thick wall steel pipe. By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured.
The range consists of DW-profile press fittings and valves in sizes 2-1/2" up to and including 4".
• outstanding corrosion resistance due to ZnNi coating
• clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function
The range consists of DW-profile press fittings and valves in sizes 2-1/2" up to and including 4".
• outstanding corrosion resistance due to ZnNi coating
• clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

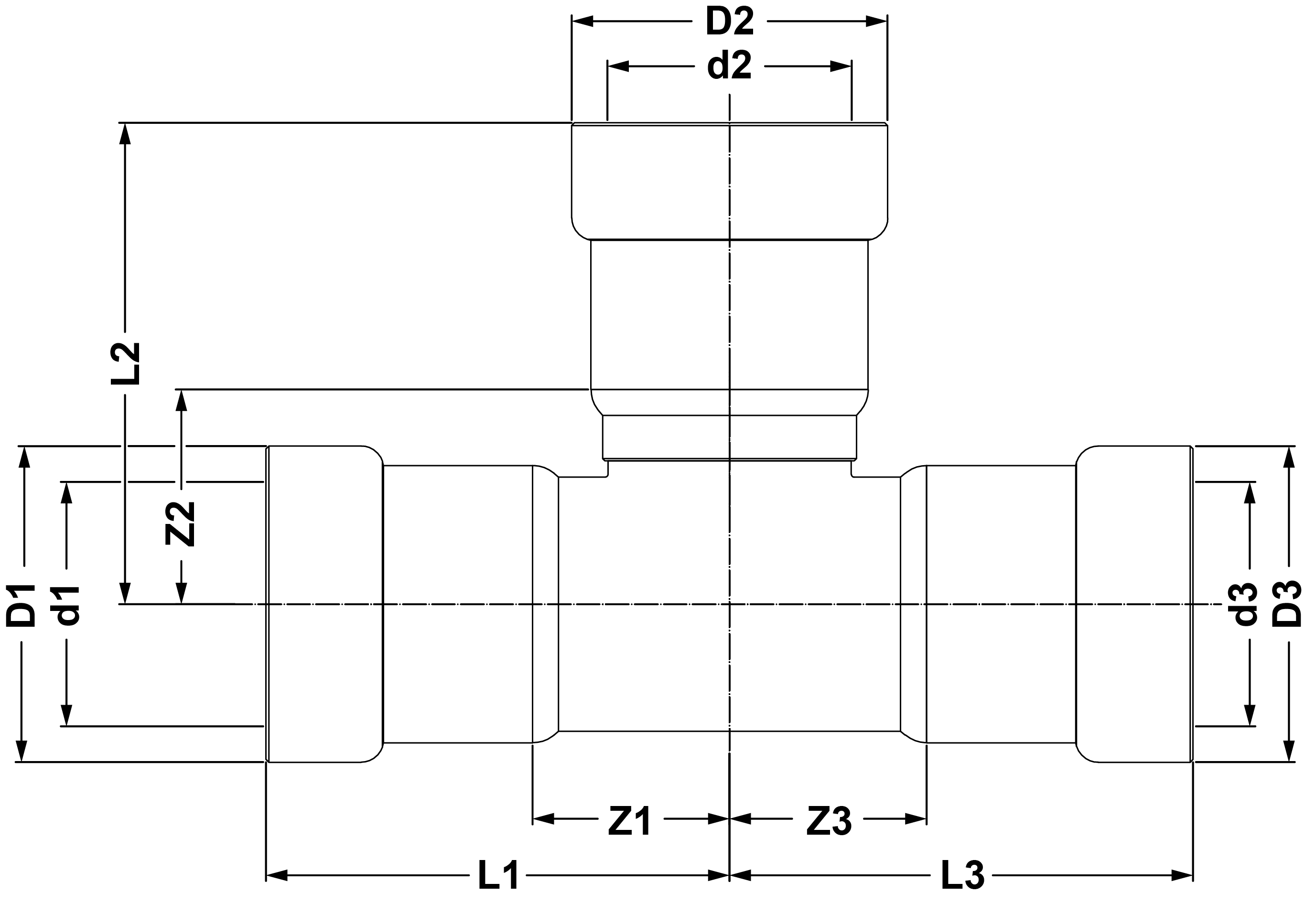

Variations (3)
123461109
| size | 2-1/2" |
|---|---|
| dimensions | 0.31x0.22x0.14 " |
| weight | 3.37 lb |
| packaging | - |
| d1 | 2.93 |
| DN1 | - |
| l1 | 3.90 |
| z1 | 2.03 |
| d2 | 2.93 |
| DN2 | - |
| l2 | 4.06 |
| z2 | 2.03 |
| d3 | 2.93 |
| DN3 | - |
| l3 | 3.90 |
| z3 | 2.03 |
123461110
| size | 3" |
|---|---|
| dimensions | 0.37x0.27x0.16 " |
| weight | 4.8 lb |
| packaging | - |
| d1 | 3.56 |
| DN1 | - |
| l1 | 4.74 |
| z1 | 2.44 |
| d2 | 3.56 |
| DN2 | - |
| l2 | 4.74 |
| z2 | 2.44 |
| d3 | - |
| DN3 | - |
| l3 | 3.90 |
| z3 | 1.87 |
123461111
| size | 4" |
|---|---|
| dimensions | 0.49x0.35x0.20 " |
| weight | 7.99 lb |
| packaging | - |
| d1 | 4.58 |
| DN1 | - |
| l1 | 6.18 |
| z1 | 3.05 |
| d2 | 4.58 |
| DN2 | - |
| l2 | 6.18 |
| z2 | 3.05 |
| d3 | - |
| DN3 | - |
| l3 | 3.90 |
| z3 | 2.03 |
Specifications
| article | Apollo® PowerPress HNBR Tee, PxPxP |
|---|---|
| article number with gtin | 411G-LD |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 7.99 lb |
| dimensions | 0.49x0.35x0.20 " |
| color | grey |
| materials | steel (St 35 (1.0308)) |
| shape | T-piece |
| connection type | press |
| pressure rating (PN) | PN 5 |
| sealing | HNBR |
| min. medium temperature | -40 °F |
| max medium temperature | 194 °F |
| product group | fittings (accessories (fittings)) |
| brand | Apollo |
| series | PowerPress LD Gas |
| product type | fittings |
PDF Documents
[Datasheet] 411G-LD - Submittal
Open PDF
