Attributes
| Group Code | 4733G |
|---|---|
| Product Type | meerdelig |
| Brand Series | apollo-powerpress-gas |
| Applications | natural gas, compressed air |
| Approvals | CRN, CSA LC-4, IAPMO LC-4, ICC LC4 |
| Solutions | utility, industry |
Description
Apollo PowerPress® 4733G is a union for natural gas applications, designed for thick wall steel pipe. By using Apollo PowerPress® Gas system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes 1/2" up to and including 2".
- outstanding corrosion resistance due to ZnNi coating
- clear identification of materials and dimensions
- Visu-Control-ring and Leak Before Pressed-function
Variations (6)
PWR7482354
| size | 1/2" |
|---|---|
| dimensions | 3.50x1.77x1.77 " |
| weight | 0.49 lb |
| packaging | Bag (5 pce) |

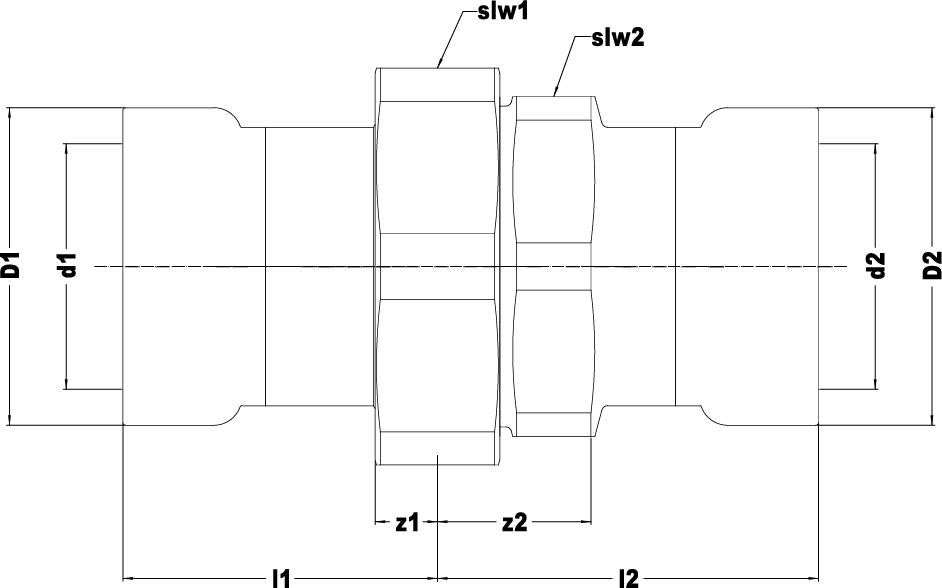

| d1 | 0.84 |
| DN1 | - |
| l1 | 1.74 |
| z1 | 0.65 |
| slw1 | 1.614 |
| d2 | 0.84 |
| DN2 | - |
| l2 | 2.04 |
| z2 | 0.94 |
| slw2 | 1.417 |
PWR7482365
| size | 3/4" |
|---|---|
| dimensions | 4.25x1.77x1.77 " |
| weight | 0.67 lb |
| packaging | Bag (5 pce) |
| d1 | 1.05 |
| DN1 | - |
| l1 | 2.13 |
| z1 | 0.93 |
| slw1 | 1.614 |
| d2 | 1.05 |
| DN2 | - |
| l2 | 2.00 |
| z2 | 0.80 |
| slw2 | 1.417 |
PWR7482376
| size | 1" |
|---|---|
| dimensions | 4.29x2.36x2.36 " |
| weight | 1.01 lb |
| packaging | Bag (5 pce) |
| d1 | 1.32 |
| DN1 | - |
| l1 | 2.15 |
| z1 | 0.76 |
| slw1 | 2.165 |
| d2 | 1.32 |
| DN2 | - |
| l2 | 2.50 |
| z2 | 1.10 |
| slw2 | 1.969 |
PWR7482387
| size | 1 1/4" |
|---|---|
| dimensions | 4.21x3.03x3.03 " |
| weight | 1.64 lb |
| packaging | Bag (1 pce) |
| d1 | 1.66 |
| DN1 | - |
| l1 | 2.10 |
| z1 | 0.21 |
| slw1 | 2.756 |
| d2 | 1.66 |
| DN2 | - |
| l2 | 2.88 |
| z2 | 0.97 |
| slw2 | 2.362 |
PWR7482398
| size | 1 1/2" |
|---|---|
| dimensions | 5.94x3.03x3.03 " |
| weight | 2.23 lb |
| packaging | Bag (1 pce) |
| d1 | 1.90 |
| DN1 | - |
| l1 | 2.97 |
| z1 | 1.04 |
| slw1 | 2.756 |
| d2 | 1.90 |
| DN2 | - |
| l2 | 2.85 |
| z2 | 0.92 |
| slw2 | 2.362 |
PWR7482409
| size | 2" |
|---|---|
| dimensions | 6.61x3.70x3.70 " |
| weight | 2.9 lb |
| packaging | Bag (1 pce) |
| d1 | 2.37 |
| DN1 | - |
| l1 | 3.31 |
| z1 | 1.21 |
| slw1 | 3.346 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 3.31 |
| z2 | 1.21 |
| slw2 | 2.953 |
Specifications
| article | Apollo PowerPress Gas union (2 x press) |
|---|---|
| article number with gtin | 4733G |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| weight | 2.9 lb |
| dimensions | 6.61x3.70x3.70 " |
| color | grey |
| materials | steel (St 35 (1.0308)) |
| finishing | zinc-nickel plated |
| shape | straight |
| connection type | press (DW) |
| pressure rating (PN) | PN 5 |
| sealing | HNBR |
| min. medium temperature | -40 °F |
| max medium temperature | 194 °F |
| product group | fittings (unions) |
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73079980 |
| country of origin | Netherlands |
| brand | Apollo |
| series | PowerPress Gas |
| product type | 4733G |
| unsps | 40174902 |
| scip | d30775b1-132f-4657-80d3-acc91bda76c2 |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Steel","Material quality connection 1":"St 35 (1.0308)","Surface protection connection 1":"Zinc/nickel","Material connection 2":"Steel","Material quality connection 2":"St 35 (1.0308)","Surface protection connection 2":"Zinc/nickel","Shape":"Straight","Model":"3-part","Reducing":"No","Eccentric":"No","System specific":"Yes","Connection 1":"Press sleeve","Contour code connection 1":"DW","Connection 2":"Press sleeve","Contour code connection 2":"DW","Main colour fitting":"Grey","Material sealing":"Hydrogenated acrylonitrile butadiene rubber (HNBR)","With buffer stud":"Yes","High tensile strength":"Yes","Medium temperature (continuous)":"-40°C - 90°C","Medium temperature (continuous) (imperial)":"-40°F - 194°F","With thermal insulation":"No","With sealing rings/gaskets":"Yes","Capped":"Yes","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","DIN-CERTCO certificate":"No","VdS quality mark":"No","With approval for TÜV":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No","Type approval according to BBR/EKS":"No"} |
