Apollo PowerPress reducer (2 x press)

Scraped SKU: 420 2026-06-05 04:33:46

Attributes

Group Code420
Brand Seriesapollo-powerpress
Applicationsheating, cooling, compressed air, sprinkler
ApprovalsFM
Solutionsfire protection, utility, industry

Description

Apollo PowerPress® 420 is a reducer, designed for thick wall steel pipe. By using Apollo PowerPress® Gas system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes 1/2" up to and including 2".

  • outstanding corrosion resistance due to ZnNi coating
  • clear identification of materials and dimensions
  • Visu-Control-ring and Leak Before Pressed-function

Variations (8)

PWR7483025

size3/4"x1/2"
dimensions2.48x1.50x1.50 "
weight0.35 lb
packagingBag (10 pce)

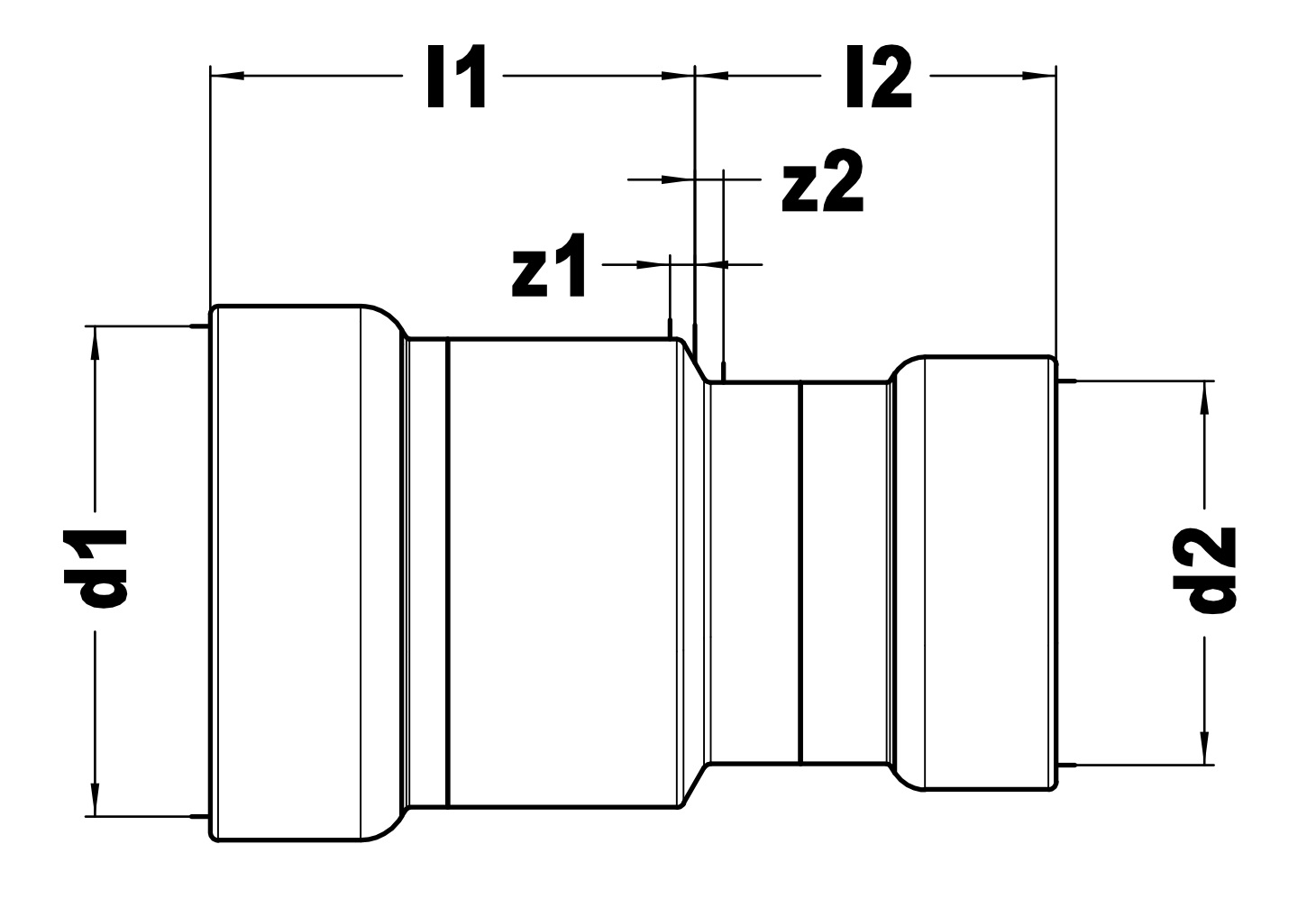

d11.06
DN1-
l11.34
z10.11
d20.84
DN2-
l21.14
z20.04

PWR7483036

size1"x1/2"
dimensions2.76x1.81x1.81 "
weight0.33 lb
packagingBag (5 pce)
d11.33
DN1-
l11.61
z10.19
d20.84
DN2-
l21.13
z20.03

PWR7483047

size1"x3/4"
dimensions2.80x1.81x1.81 "
weight0.37 lb
packagingBag (5 pce)
d11.33
DN1-
l11.55
z10.13
d21.06
DN2-
l21.24
z20.02

PWR7483058

size1 1/4"x3/4"
dimensions3.39x2.20x2.20 "
weight0.35 lb
packagingBag (1 pce)
d11.67
DN1-
l12.15
z10.26
d21.06
DN2-
l21.24
z20.02

PWR7483069

size1 1/4"x1"
dimensions3.50x2.20x2.20 "
weight0.6 lb
packagingBag (1 pce)
d11.67
DN1-
l12.07
z10.18
d21.33
DN2-
l21.43
z20.01

PWR7483071

size1 1/2"x1 1/4"
dimensions4.06x2.44x2.44 "
weight0.8 lb
packagingBag (1 pce)
d11.90
DN1-
l12.09
z10.16
d21.67
DN2-
l21.95
z20.06

PWR7483080

size2"x1 1/4"
dimensions4.37x2.91x2.91 "
weight0.98 lb
packagingBag (1 pce)
d12.37
DN1-
l12.39
z10.31
d21.67
DN2-
l21.95
z20.06

PWR7483091

size2"x1 1/2"
dimensions4.37x2.91x2.91 "
weight1.22 lb
packagingBag (1 pce)
d12.37
DN1-
l12.33
z10.24
d21.90
DN2-
l22.00
z20.08

Specifications

articleApollo PowerPress reducer (2 x press)
article number with gtin420
manufacturerAalberts integrated piping systems B.V. (VSH)
weight1.22 lb
dimensions4.37x2.91x2.91 "
colorgrey
materialssteel (St 35 (1.0308))
finishingzinc-nickel plated
shapestraight, reducer
connection typepress (DW)
pressure rating (PN)PN 16
sealingEPDM
max operating pressure liquid232 psi
min. medium temperature-40 °F
max medium temperature275 °F
peak medium temperature302 °F
product groupfittings
ETIM classEC003024 Fitting with 2 connections
intrastat code73079980
country of originNetherlands
brandApollo
seriesPowerPress
product type420
unsps40173602
scipd30775b1-132f-4657-80d3-acc91bda76c2
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Steel","Material quality connection 1":"St 35 (1.0308)","Surface protection connection 1":"Zinc/nickel","Material connection 2":"Steel","Material quality connection 2":"St 35 (1.0308)","Surface protection connection 2":"Zinc/nickel","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"No","System specific":"Yes","Connection 1":"Press sleeve","Contour code connection 1":"DW","Connection 2":"Press sleeve","Contour code connection 2":"DW","Main colour fitting":"Grey","Flange compression class (PN)":"PN 16","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","High tensile strength":"Yes","Medium temperature (continuous)":"-40°C - 135°C","Medium temperature (continuous) (imperial)":"-40°F - 275°F","Max. operating pressure at 20 °C":"16bar","Max. operating pressure at 20 °C (imperial)":"232.22psi","With thermal insulation":"No","With sealing rings/gaskets":"No","Capped":"Yes","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","DIN-CERTCO certificate":"No","VdS quality mark":"No","With approval for TÜV":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No","Type approval according to BBR/EKS":"No"}
