Apollo PowerPress union (press x female thread)

Scraped SKU: 4734 2026-06-05 04:33:46

Attributes

Group Code4734
Product Typemeerdelig
Brand Seriesapollo-powerpress
Applicationsheating, cooling, compressed air, sprinkler
Solutionsfire protection, utility, industry

Description

Apollo PowerPress® 4734 is a union designed for thick wall steel pipe. By using Apollo PowerPress® system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes 1/2" up to and including 2".

  • outstanding corrosion resistance due to ZnNi coating
  • clear identification of materials and dimensions
  • Visu-Control-ring and Leak Before Pressed-function

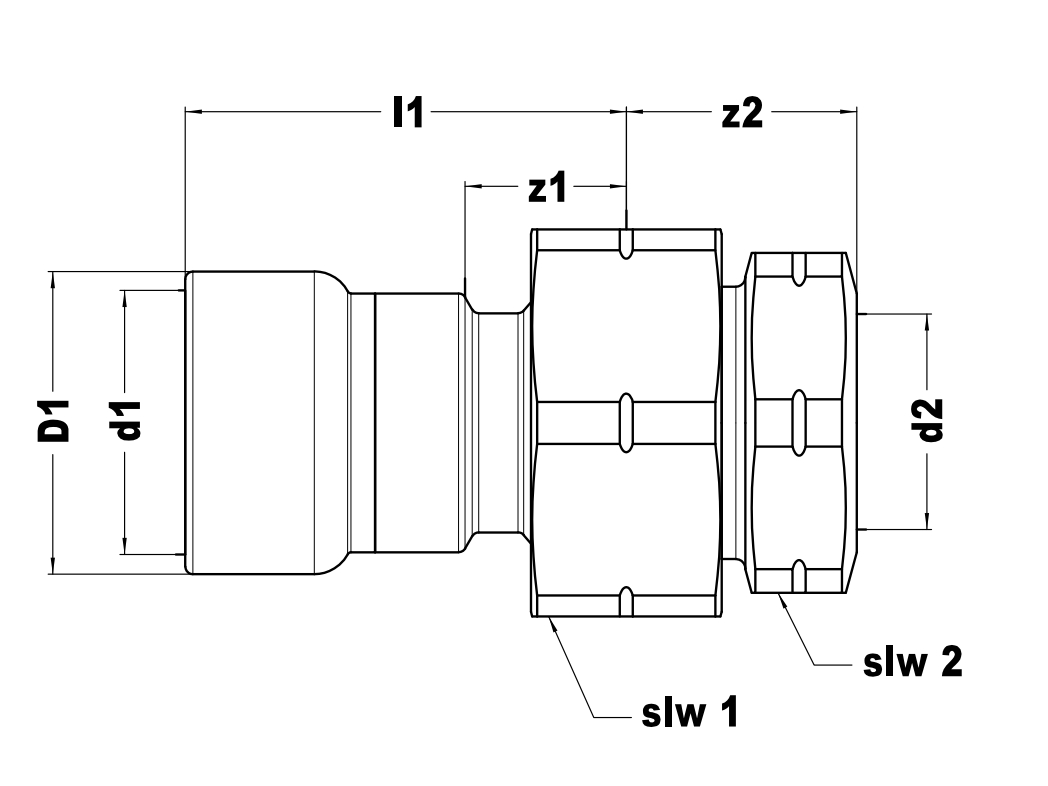

Variations (6)

PWR7483245

size1/2"xFPT1/2"
dimensions3.50x1.77x1.77 "
weight0.49 lb
packagingBag (5 pce)
d10.84
DN1-
l11.84
z10.73
slw11.614
d20.84
DN2-
l20.97
z20.97
slw21.417

PWR7483256

size3/4"xFPT3/4"
dimensions4.25x1.77x1.77 "
weight0.67 lb
packagingBag (5 pce)
d11.06
DN1-
l12.22
z11.00
slw11.614
d21.05
DN2-
l20.91
z20.91
slw21.417

PWR7483267

size1"xFPT1"
dimensions4.29x2.36x2.36 "
weight1.01 lb
packagingBag (5 pce)
d11.33
DN1-
l12.27
z10.85
slw12.165
d21.32
DN2-
l21.16
z21.16
slw21.969

PWR7483278

size1 1/4"xFPT1 1/4"
dimensions4.21x3.03x3.03 "
weight1.64 lb
packagingBag (1 pce)
d11.67
DN1-
l12.22
z10.34
slw12.756
d21.66
DN2-
l21.23
z21.23
slw22.362

PWR7483289

size1 1/2"xFPT1 1/2"
dimensions5.94x3.03x3.03 "
weight2.23 lb
packagingBag (1 pce)
d11.90
DN1-
l13.09
z11.16
slw12.756
d21.90
DN2-
l21.16
z21.16
slw22.362

PWR7483291

size2"xFPT2"
dimensions6.61x3.70x3.70 "
weight2.9 lb
packagingBag (1 pce)
d12.37
DN1-
l13.46
z11.37
slw13.346
d22.37
DN2-
l21.41
z21.41
slw22.953

Specifications

articleApollo PowerPress union (press x female thread)
article number with gtin4734
manufacturerAalberts integrated piping systems B.V. (VSH)
weight2.9 lb
dimensions6.61x3.70x3.70 "
colorgrey
materialssteel (St 35 (1.0308))
finishingzinc-nickel plated
shapestraight
connection typepress (DW), FPT - female thread conical (NPT)
pressure rating (PN)PN 16
sealingEPDM
max operating pressure liquid232 psi
min. medium temperature-40 °F
max medium temperature302 °F
peak medium temperature320 °F
product groupfittings (unions)
ETIM classEC003024 Fitting with 2 connections
intrastat code73079980
country of originNetherlands
brandApollo
seriesPowerPress
product type4734
unsps40174902
scipd30775b1-132f-4657-80d3-acc91bda76c2
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Steel","Material quality connection 1":"St 35 (1.0308)","Surface protection connection 1":"Zinc/nickel","Material connection 2":"Steel","Material quality connection 2":"St 35 (1.0308)","Surface protection connection 2":"Zinc/nickel","Shape":"Straight","Model":"3-part","Reducing":"No","Eccentric":"No","System specific":"Yes","Connection 1":"Press sleeve","Contour code connection 1":"DW","Connection 2":"Internal thread conical (NPT)","Main colour fitting":"Grey","Flange compression class (PN)":"PN 16","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","High tensile strength":"Yes","Medium temperature (continuous)":"-40°C - 150°C","Medium temperature (continuous) (imperial)":"-40°F - 302°F","Max. operating pressure at 20 °C":"16bar","Max. operating pressure at 20 °C (imperial)":"232.22psi","With thermal insulation":"No","With sealing rings/gaskets":"Yes","Capped":"Yes","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","DIN-CERTCO certificate":"No","VdS quality mark":"No","With approval for TÜV":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No","Type approval according to BBR/EKS":"No"}
