Attributes
| Group Code | 34HLBOX01 |
|---|---|
| Product Type | mixing-valve |
| Brand Series | apollo-34-series-mixing-valves |
| Applications | heating |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
| Solutions | utility |
Description
The Apollo 34HL Series Automatic Temperature Controller / HI-LO meets the new ASSE 1069 standard for multiple shower applications and the ASSE 1017 standard for point of source distribution applications. The device provides consistent temperature control to flow as low as 0.5 GPM. The MVHL is capable of low flow control without need for recirculation pumps and higher flow with parallel installation. Integral strainers and check valves are supplied at the valve inlets for added protection and long term performance.
- US Patent 6,929,188 B2
- Union Isolation Ball Valve Connections
- Corrosion Resistant Bronze Construction
- Multiple Cabinet Options
- Integral/Replaceable In-Line Check Valves
- Integral/Replaceable In-Line Strainers
- Hi-Lo Flow Calibration Valve
- Pressure Gauges (0-160 psi)
- Temperature Gauge (0-200°F)
- Cold & Hot Water Protection Failure
- Independent Low & High Flow Temp Control
- Made in USA - ARRA compliant
Variations (1)
34HLBOX01
| size | 1-1/4" |
|---|---|
| dimensions | - |
| weight | 32 lb |
| packaging | Carton (1 pce) |
Specifications
| article | Apollo Hi-Lo Automatic Temperature Controller Cabinet, 34HL, Stainless Steel, Flush Lock |
|---|---|
| article number with gtin | 34HLBOX01 (00670750920394) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1-1/4" |
| weight | 32 lb |
| finishing | none |
| product group | valves (mixing valves) |
| ETIM class | EC011516 Thermostatic flow control valve, hot tap water |
| country of origin | United States |
| brand | Apollo |
| series | 34 Series Mixing Valves |
| product type | 34HLBOX01 |
PDF Documents

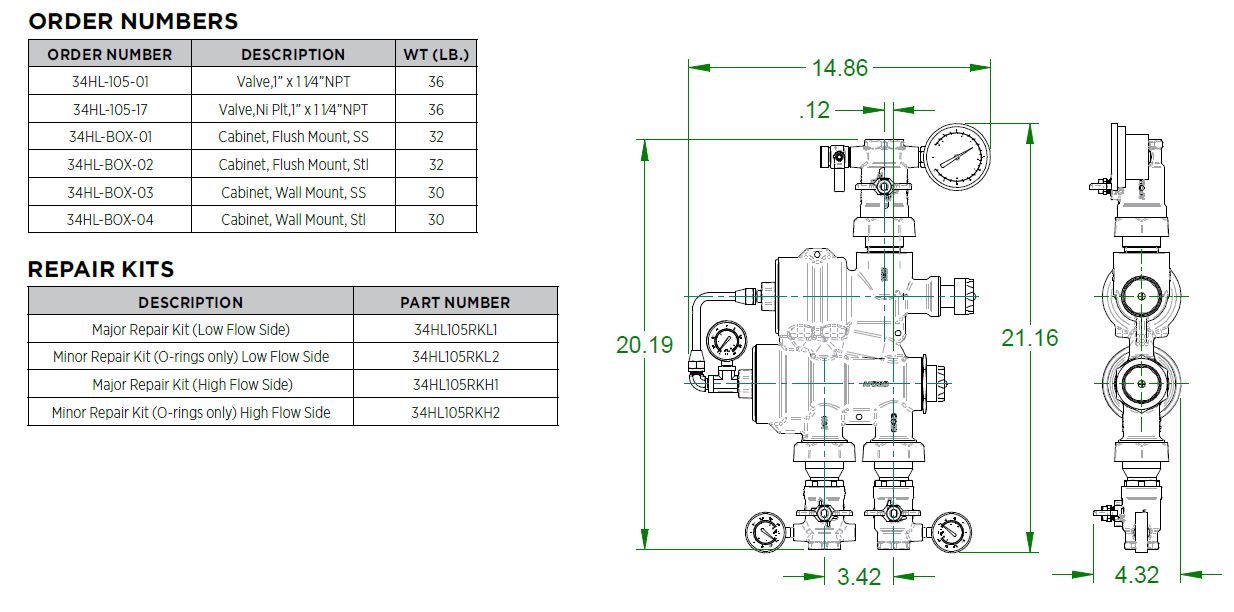

[Datasheet] 34HL-100 Submittal Sheet
Open PDF
