Attributes
| Group Code | 6GA10XB1LFA |
|---|---|
| Product Type | gate-valve |
| Brand Series | apollo-6ga-series-gate-valves |
| Applications | heating |
| Solutions | utility, industry |
Description
The Apollo International Model 610F-LFA Flanged Cast Iron Gate Valve provides full flow capabilities. The Model 610F-LF Gate Valve can be reliably installed in plumbing and heating systems (or building service piping). Valves are MSS SP-70 compliant and include NSF lead free certifications.
- Compatible with ANSI 125# & 150# Flanges
- Full Port
- Bronze Mounted Seat Rings/Trim
- Solid Wedge
- Adjustable Graphite Stem Packing
- Non-Rising Stem
- Flanged Connection
- Bolted Bonnet
- Rugged Iron Hand Wheel
- Back Seat Protection
- FDA Food Grad Epoxy Powder Coat Finish
Variations (14)
6GA108B1LFA
| size | 2" |
|---|---|
| dimensions | - |
| weight | 36.4 lb |
| packaging | Carton (1 pce) |
6GA109B1LFA
| size | 2-1/2" |
|---|---|
| dimensions | - |
| weight | 47.6 lb |
| packaging | Carton (1 pce) |
6GA100B1LFA
| size | 3" |
|---|---|
| dimensions | - |
| weight | 58.6 lb |
| packaging | Carton (1 pce) |
6GA10AB1LFA
| size | 4" |
|---|---|
| dimensions | - |
| weight | 104.1 lb |
| packaging | Carton (1 pce) |
6GA10BB1LFA
| size | 5" |
|---|---|
| dimensions | - |
| weight | 149.9 lb |
| packaging | Carton (1 pce) |
6GA10CB1LFA
| size | 6" |
|---|---|
| dimensions | - |
| weight | 191.8 lb |
| packaging | Carton (1 pce) |
6GA10EB1LFA
| size | 8" |
|---|---|
| dimensions | - |
| weight | 260.1 lb |
| packaging | Carton (1 pce) |
6GA10GB1LFA
| size | 10" |
|---|---|
| dimensions | - |
| weight | 434.3 lb |
| packaging | Carton (1 pce) |
6GA10HB1LFA
| size | 12" |
|---|---|
| dimensions | - |
| weight | 606.3 lb |
| packaging | Carton (1 pce) |
6GA10JB1LFA
| size | 14" |
|---|---|
| dimensions | - |
| weight | 925.9 lb |
| packaging | Carton (1 pce) |
6GA10KB1LFA
| size | 16" |
|---|---|
| dimensions | - |
| weight | 1097.9 lb |
| packaging | Carton (1 pce) |
6GA10MB1LFA
| size | 18" |
|---|---|
| dimensions | - |
| weight | 1543.2 lb |
| packaging | Carton (1 pce) |
6GA10NB1LFA
| size | 20" |
|---|---|
| dimensions | - |
| weight | 1638 lb |
| packaging | Carton (1 pce) |
6GA10PB1LFA
| size | 24" |
|---|---|
| dimensions | - |
| weight | 2755.8 lb |
| packaging | Carton (1 pce) |
Specifications
| article | Apollo International Lead Free Cast Iron Non-Rising Stem Gate Valve Class 125 (2 x Flange) |
|---|---|
| article number with gtin | 6GA10XB1LFA |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 2755.8 lb |
| materials | cast iron (ASTM A126 Grade B) |
| finishing | none |
| connection type | flange |
| product group | valves (gate valves) |
| ETIM class | EC010163 Gate valve |
| country of origin | China |
| brand | Apollo |
| series | 6GA Series Gate Valves |
| product type | 6GA10XB1LFA |
| unsps | 40141613 |
| ETIM | {"etim-class":"EC010163 Gate valve","Housing material":"Cast iron","Connection 1":"Flange","Connection 2":"Flange","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Surface protection":"Untreated","VdS quality mark":"No","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"} |
PDF Documents

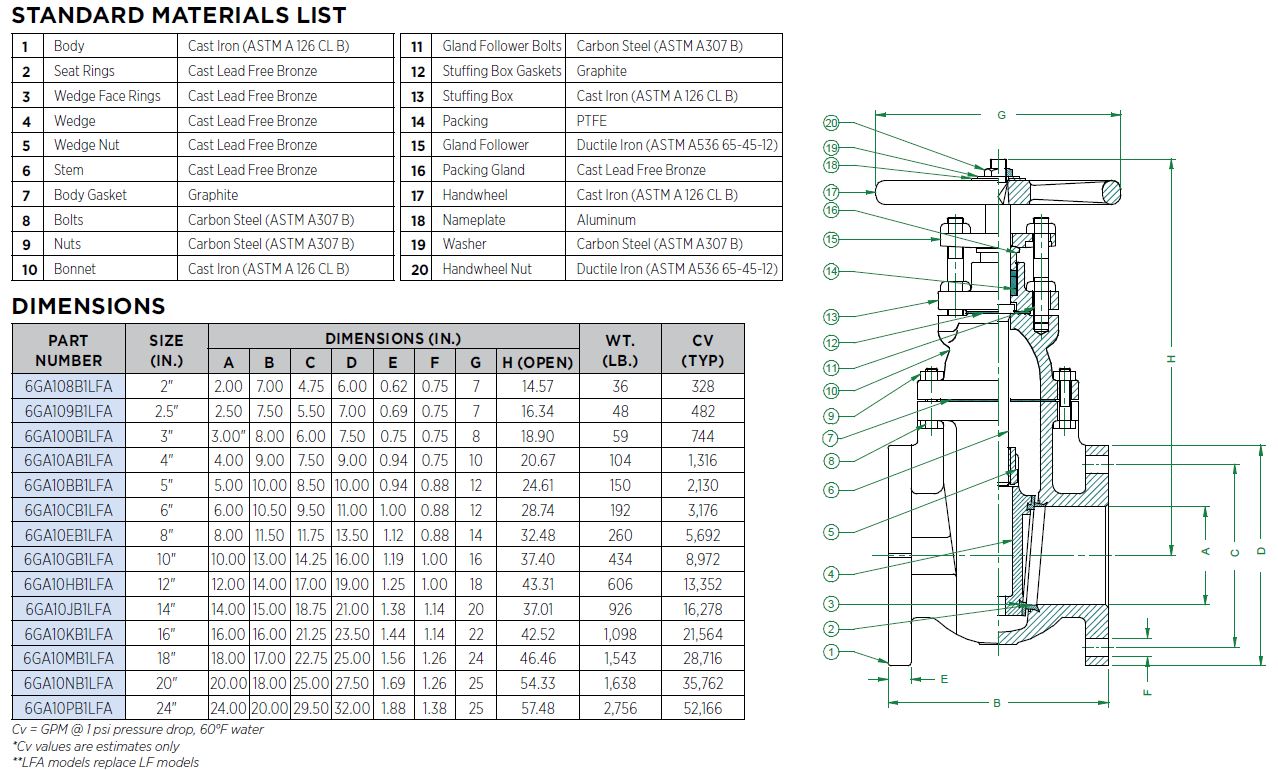

[Datasheet] 610F-LFA- Submittal Sheet
Open PDF
