Attributes
| Group Code | 60A1000724 |
|---|---|
| Product Type | needle-valve |
| Brand Series | apollo-60a-series-globe-valves |
Description
The Apollo® 60A Series Steel & Stainless Steel Barstock Globe Valves are ideally suited for use in instrumentation, sampling lines and flow control applications.
- Backseat stem design reduces pressure exerted on the packing, prolonging packing life
- Design also prevents stem from being accidentally turned out of the valve
- Externally adjustable PTFE packing is standard, graphoil available as an option
- Integral metal-to-metal seat design
- Malleable iron handle for long lasting, reliable service
- All valves 100% pressure tested
- Fully threaded bonnet to accommodate optional panel mounting nut
- All pressure retaining parts constructed of ASTM materials.
- Meets the requirements of MSS SP-99 & SP-105
- Meets the requirements of NACE MR-01-75
Variations (1)
60A1030724
| size | 1-1/2" |
|---|---|
| dimensions | - |
| weight | 1.64 lb |
| packaging | - |
Specifications
| article | Apollo Carbon Steel Barstock Globe Valve with Steel Tee Handle, Graphite Packing (2 x FNPT) |
|---|---|
| article number with gtin | 60A1000724 (00191988045845) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1-1/2" |
| weight | 1.64 lb |
| materials | steel |
| finishing | none |
| connection type | FPT - female thread conical (NPT) |
| product group | valves (needle valves) |
| ETIM class | EC010120 Globe valve |
| brand | Apollo |
| series | 60A Series Globe Valves |
| product type | 60A1000724 |
| ETIM | {"etim-class":"EC010120 Globe valve","Housing material":"Steel","Connection 1":"Internal thread conical (NPT)","Connection 2":"Internal thread conical (NPT)","Surface protection":"Untreated","Suitable for liquids":"No","Suitable for gases":"No","Suitable for steam":"No","VdS quality mark":"No","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"} |
PDF Documents

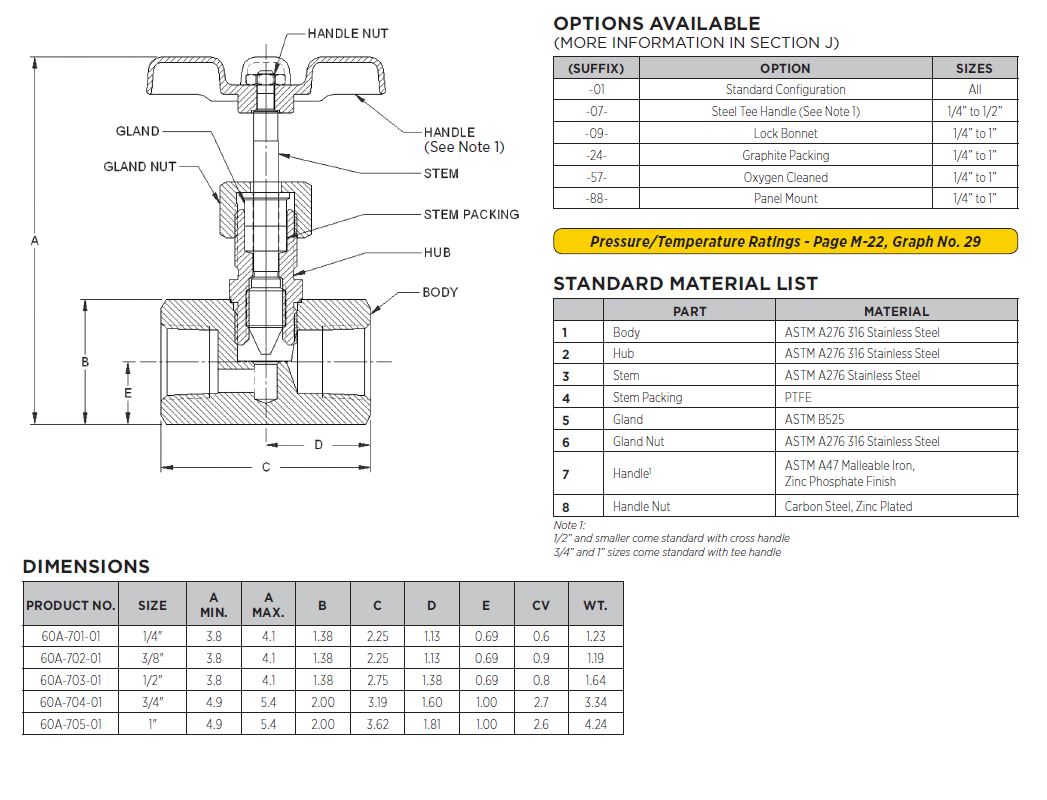

[Datasheet] 60A-100 Submittal Sheet
Open PDF
