Attributes
| Group Code | 6GB11XB1LFA |
|---|---|
| Product Type | globe-valve |
| Brand Series | apollo-6gb-series-globe-valves |
| Applications | heating |
| Solutions | utility, industry |
Description
The Apollo International Model 711F-LFA Flanged Cast Iron Globe Valve provides efficient throttling capabilities. The Model 711F-LFA Globe Valve can be reliably installed in plumbing and heating systems (or building service piping). Valves are MSS SP-85 compliant and include NSF lead free certifications.
- Compatible with ANSI 125# & 150# Flanges
- Full Port
- Bronze Mounted Seat Rings/Trim
- Positive Shut-off
- Throttling Capabilities
- Adjustable Graphite Stem Packing
- Outside Screw & Yoke
- Flanged Connection
- Bolted Bonnet
- Rugged Iron Hand Wheel
- Back Seat Protection
- FDA Food Grade Epoxy Powder Coat Finish
Variations (8)
6GB118B1LFA
| size | 2" |
|---|---|
| dimensions | - |
| weight | 36.4 lb |
| packaging | Carton (1 pce) |
6GB119B1LFA
| size | 2-1/2" |
|---|---|
| dimensions | - |
| weight | 49.4 lb |
| packaging | Carton (1 pce) |
6GB110B1LFA
| size | 3" |
|---|---|
| dimensions | - |
| weight | 63.9 lb |
| packaging | Carton (1 pce) |
6GB11AB1LFA
| size | 4" |
|---|---|
| dimensions | - |
| weight | 93.7 lb |
| packaging | Carton (1 pce) |
6GB11BB1LFA
| size | 5" |
|---|---|
| dimensions | - |
| weight | 136.7 lb |
| packaging | Carton (1 pce) |
6GB11CB1LFA
| size | 6" |
|---|---|
| dimensions | - |
| weight | 194.9 lb |
| packaging | Carton (1 pce) |
6GB11EB1LFA
| size | 8" |
|---|---|
| dimensions | - |
| weight | 315.3 lb |
| packaging | Carton (1 pce) |
6GB11GB1LFA
| size | 10" |
|---|---|
| dimensions | - |
| weight | 485 lb |
| packaging | Carton (1 pce) |
Specifications
| article | Apollo International Cast Iron OS&Y Globe Valve Class 125 (2 x Flange) |
|---|---|
| article number with gtin | 6GB11XB1LFA |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 485 lb |
| materials | cast iron |
| finishing | none |
| connection type | flange |
| product group | valves (globe valves) |
| ETIM class | EC010120 Globe valve |
| country of origin | China |
| brand | Apollo |
| series | 6GB Series Globe Valves |
| product type | 6GB11XB1LFA |
| unsps | 40141611 |
| ETIM | {"etim-class":"EC010120 Globe valve","Housing material":"Cast iron","Connection 1":"Flange","Connection 2":"Flange","Surface protection":"Untreated","Suitable for liquids":"Yes","Suitable for gases":"No","Suitable for steam":"No","VdS quality mark":"No","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"} |
PDF Documents

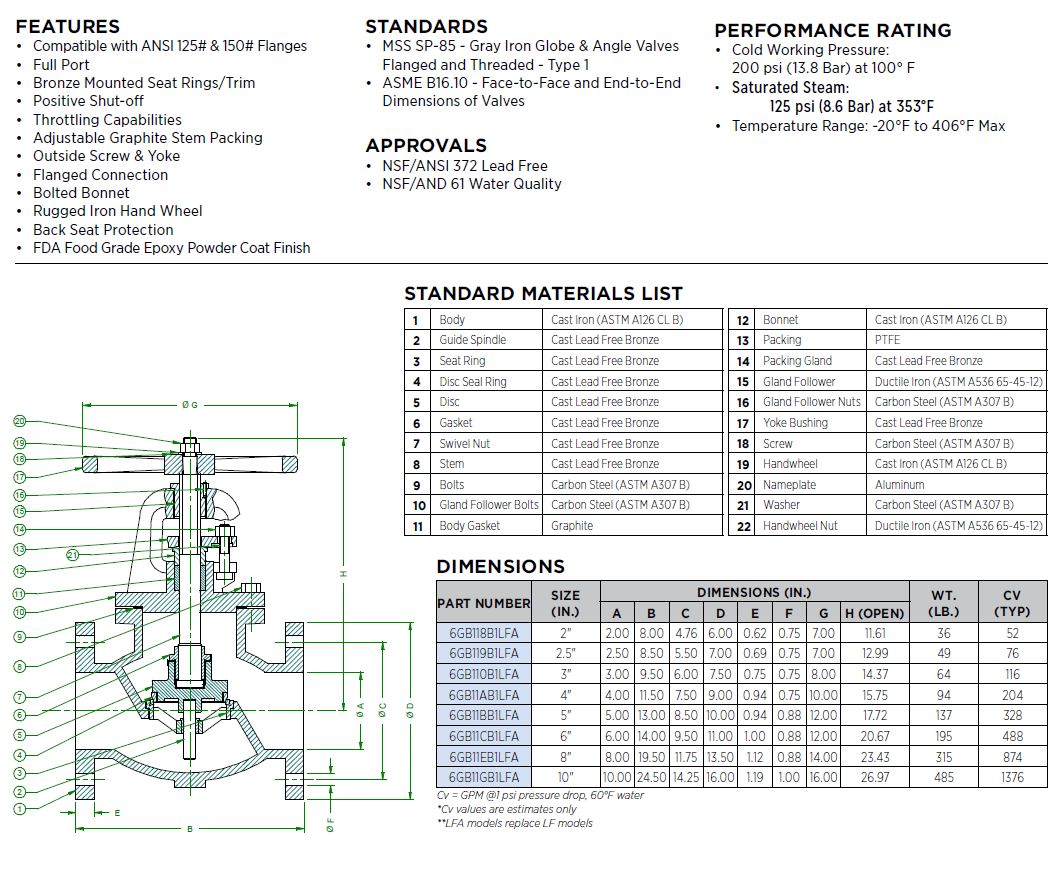

[Datasheet] 711F-LFA Submittal Sheet
Open PDF
