Attributes
| Group Code | 1600 |
|---|---|
| Product Type | dynamic-balancing-valve |
| Brand Series | apollo-1600-picv-series-balancing-valves |
| Applications | heating, cooling |
| Approvals | NSF/ANSI 61 |
| Solutions | utility, industry |
Description
The type 1600, Apollo ProFlow 1600 PICV Series Balancing Valve, is designed to eliminate existing heating and cooling system issues, saving significant time and money. Pegler ProFlow PICV’s are supplied in bypass configuration. Valves can be installed and flushed (forward and backward) at full bore prior to commissioning with the PICV mechanism safely out of the way. Once the system is clean and ready to commission, a simple rotation of the PICV head introduces the valve into the flow, and rotates the bypass out of the way. Type Apollo ProFlow PICV valves are available with several connection technologies.
- ensures bypass/flushing have been actioned to prevent future issues
- utilise as isolating valve; no need for ball valve inline
- less time removing cartridges for flushing
- includes test points
- hot swap of inserts
- visible setting indication with actuator on

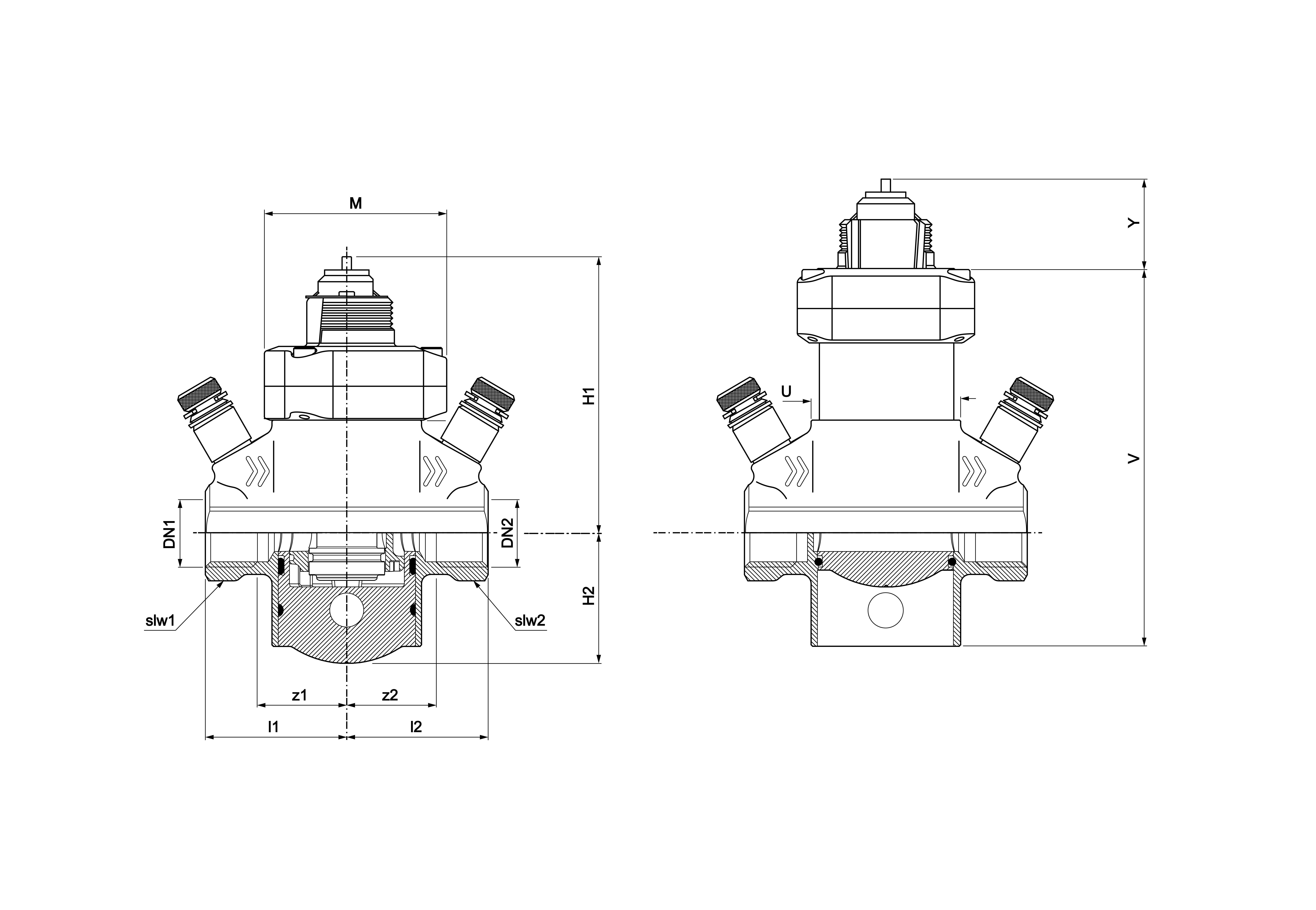

Variations (3)
1604SDDB
| size | 3/4" |
|---|---|
| dimensions | - |
| weight | 4.25 lb |
| packaging | Box (1 ) |
| d1 | 1.06 |
| DN1 | - |
| l1 | 2.05 |
| z1 | 1.30 |
| slw1 | 1.26 |
| d2 | 1.06 |
| DN2 | - |
| l2 | 2.05 |
| z2 | 1.30 |
| slw2 | 1.26 |
| H | 4.13 |
| Y | 1.26 |
| V | 1.97 |
| U | 2.36 |
1604HDDB
| size | 3/4" |
|---|---|
| dimensions | - |
| weight | 4.25 lb |
| packaging | Box (1 ) |
| d1 | 1.06 |
| DN1 | - |
| l1 | 2.05 |
| z1 | 1.30 |
| slw1 | 1.26 |
| d2 | 1.06 |
| DN2 | - |
| l2 | 2.05 |
| z2 | 1.30 |
| slw2 | 1.26 |
| H | 4.13 |
| Y | 1.26 |
| V | 1.97 |
| U | 2.36 |
1605SDDB
| size | 1" |
|---|---|
| dimensions | - |
| weight | 5.25 lb |
| packaging | Box (1 ) |
| d1 | 1.33 |
| DN1 | - |
| l1 | 2.28 |
| z1 | 1.65 |
| slw1 | 1.57 |
| d2 | 1.33 |
| DN2 | - |
| l2 | 2.28 |
| z2 | 1.65 |
| slw2 | 1.57 |
| H | 4.13 |
| Y | 1.26 |
| V | 1.97 |
| U | 2.36 |
Specifications
| article | Apollo PICV dynamic balancing valve |
|---|---|
| article number with gtin | 1600 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 5.25 lb |
| color | black |
| materials | brass (CW511L (lead-free)) |
| finishing | powder |
| shape | straight |
| connection type | FPT - female thread conical (NPT), solder |
| max operating pressure liquid | 232 psi |
| max medium temperature | 194 °F |
| product group | valves (dynamic balancing valves) |
| brand | Apollo |
| series | 1600 PICV Series Balancing Valves |
| product type | 1600 |
