Attributes
| Group Code | SSB5024A |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-ss-top-entry-ball-valves |
| Applications | heating, cooling, steam, compressed air |
| Solutions | utility, industry |
Description
Apollo's Top Entry Ball Valves deliver additional premiums; a broader choice of material for both internal and external components, more optional features to choose from, and selectable seal material combinations all resulting in an expanded serviceable application range.
• Self-Adjusting Seats Compensate for Wear & Temperature Fluctuations
• Spring-Loaded, Low-Pressure Seals
• Pressure Activated Seating
• Built-In Antistatic Feature
Variations (1)
SSB5524A
| size | 1" |
|---|---|
| dimensions | - |
| weight | 9 lb |
| packaging | Carton (1 pce) |
| DN1 | - |
| DN2 | - |
Specifications
| article | Apollo Stainless Steel Class 150 Standard Port Top Entry Ball Valve with 316L SS Trim, Bronze/Moly Seats, Graphite Packing, Spiral Wound Graphite Gasket (2 x Flange) |
|---|---|
| article number with gtin | SSB5024A (00670750917134) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1" |
| weight | 9 lb |
| color | silver |
| materials | stainless steel |
| connection type | flange |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | SS Top Entry Ball Valves |
| product type | SSB5024A |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Stainless steel","Material ball":"Stainless steel","Material spindle":"Stainless steel","Nominal diameter connection 1":"DN 25","Connection 1":"Flange","Nominal diameter connection 2":"DN 25","Connection 2":"Flange","With filter":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
PDF Documents

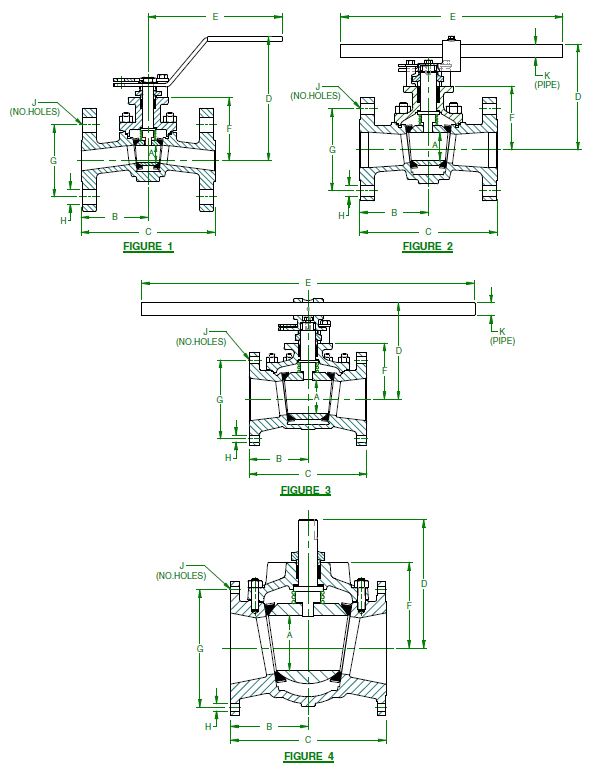

[Datasheet] SSF Submittal Sheet
Open PDF
