Attributes
| Group Code | 73A10X02 |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-73a-series-ball-valves |
| Applications | heating, cooling, steam, compressed air, vacuum |
| Approvals | American Iron & Steel (AIS), Build America Buy America (BABA) Act, Buy American Act (BAA), CRN, Made in USA |
| Solutions | utility, industry |
Description

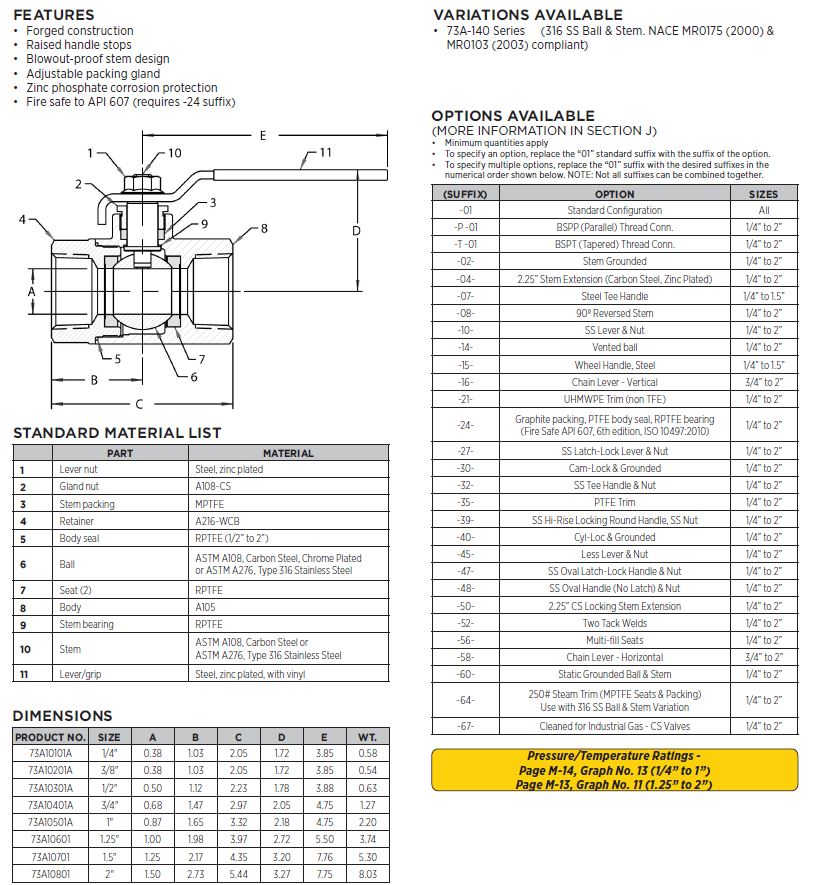

The Apollo 73A-100 Series is a threaded carbon steel ball valve with a standard port.
- Forged construction
- Raised handle stops
- Blowout-proof stem design
- Adjustable packing gland
- Zinc phosphate corrosion protection
Variations (3)
73A10602
| size | 1-1/4" |
|---|---|
| dimensions | 5.00x1.18x1.78 " |
| weight | 3.74 lb |
| packaging | Carton (1 pce) |
| d1 | 1.66 |
| DN1 | - |
| d2 | 1.66 |
| DN2 | - |
73A10702
| size | 1-1/2" |
|---|---|
| dimensions | 5.00x1.18x1.78 " |
| weight | 5.3 lb |
| packaging | Carton (1 pce) |
| d1 | 1.90 |
| DN1 | - |
| d2 | 1.90 |
| DN2 | - |
73A10802
| size | 2" |
|---|---|
| dimensions | 5.00x1.18x1.78 " |
| weight | 8.03 lb |
| packaging | Carton (1 pce) |
| d1 | 2.38 |
| DN1 | - |
| d2 | 2.38 |
| DN2 | - |
Specifications
| article | Apollo 2 Piece Standard Port Carbon Steel Ball Valve with Stem Grounded (2 x FNPT) |
|---|---|
| article number with gtin | 73A10X02 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 8.03 lb |
| dimensions | 5.00x1.18x1.78 " |
| color | black |
| materials | steel (ASTM A105-CS) |
| finishing | none |
| shape | straight |
| connection type | FPT - female thread conical (NPT) |
| max operating pressure liquid | 1500 psi |
| min. medium temperature | -20 °F |
| max medium temperature | 500 °F |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 73A Series Ball Valves |
| product type | 73A10X02 |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Steel","Surface protection housing":"None","Material ball":"Stainless steel","Material spindle":"Stainless steel","Connection 1":"Internal thread conical (NPT)","With coupling connection 1":"No","Connection 2":"Internal thread conical (NPT)","With coupling connection 2":"No","With filter":"No","With thermometer":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medium temperature (continuous)":"-28.89°C - 260°C","Medium temperature (continuous) (imperial)":"-20.002°F - 500°F","Medically clean":"No","Grease-free":"No","Housing construction":"2-part","Full bore":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
