Attributes
| Group Code | 83B14X2477S3 |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-83b-series-ball-valves |
| Approvals | American Iron & Steel (AIS) |
Description
The Apollo® V-port control valve is an extension of our already proven and robust 83B series. It will use all the same trusted components with the addition of a characterized ball. The 83B series is a carbon steel class 600 full port three-piece design.
The characterized ball, offered with a 30°, 60°, 90° and 1/16” slot, allows for an accurate control of flow where needed. Applications can span across industries like chemical processing, oil and gas, water treatment and HVAC systems, where precise and reliable flow control is essential. These are cast and machined in our South Carolina manufacturing plants, this valve provides trusted performances and a wide range of options.
• pressure balanced solid ball
• compression controlled spiral wound gaskets
• anti-blowout one-piece bottom entry stem
• statically grounded ball, stem, & body
• live loaded stem packing
• adjustable graphite stem packing
• fully machined ISO 5211 mounting
• cast bosses on the center-section and end caps for bleed & drain ports
• fire safe to API 607 (requires -24 or -EF suffix)
• CE marking, 1-1/4” and larger (add “-CE” suffix)
• 250 psig saturated steam
The characterized ball, offered with a 30°, 60°, 90° and 1/16” slot, allows for an accurate control of flow where needed. Applications can span across industries like chemical processing, oil and gas, water treatment and HVAC systems, where precise and reliable flow control is essential. These are cast and machined in our South Carolina manufacturing plants, this valve provides trusted performances and a wide range of options.
• pressure balanced solid ball
• compression controlled spiral wound gaskets
• anti-blowout one-piece bottom entry stem
• statically grounded ball, stem, & body
• live loaded stem packing
• adjustable graphite stem packing
• fully machined ISO 5211 mounting
• cast bosses on the center-section and end caps for bleed & drain ports
• fire safe to API 607 (requires -24 or -EF suffix)
• CE marking, 1-1/4” and larger (add “-CE” suffix)
• 250 psig saturated steam
Variations (1)
83B1432477S3
| size | 1/2" |
|---|---|
| dimensions | - |
| weight | - |
| packaging | - |

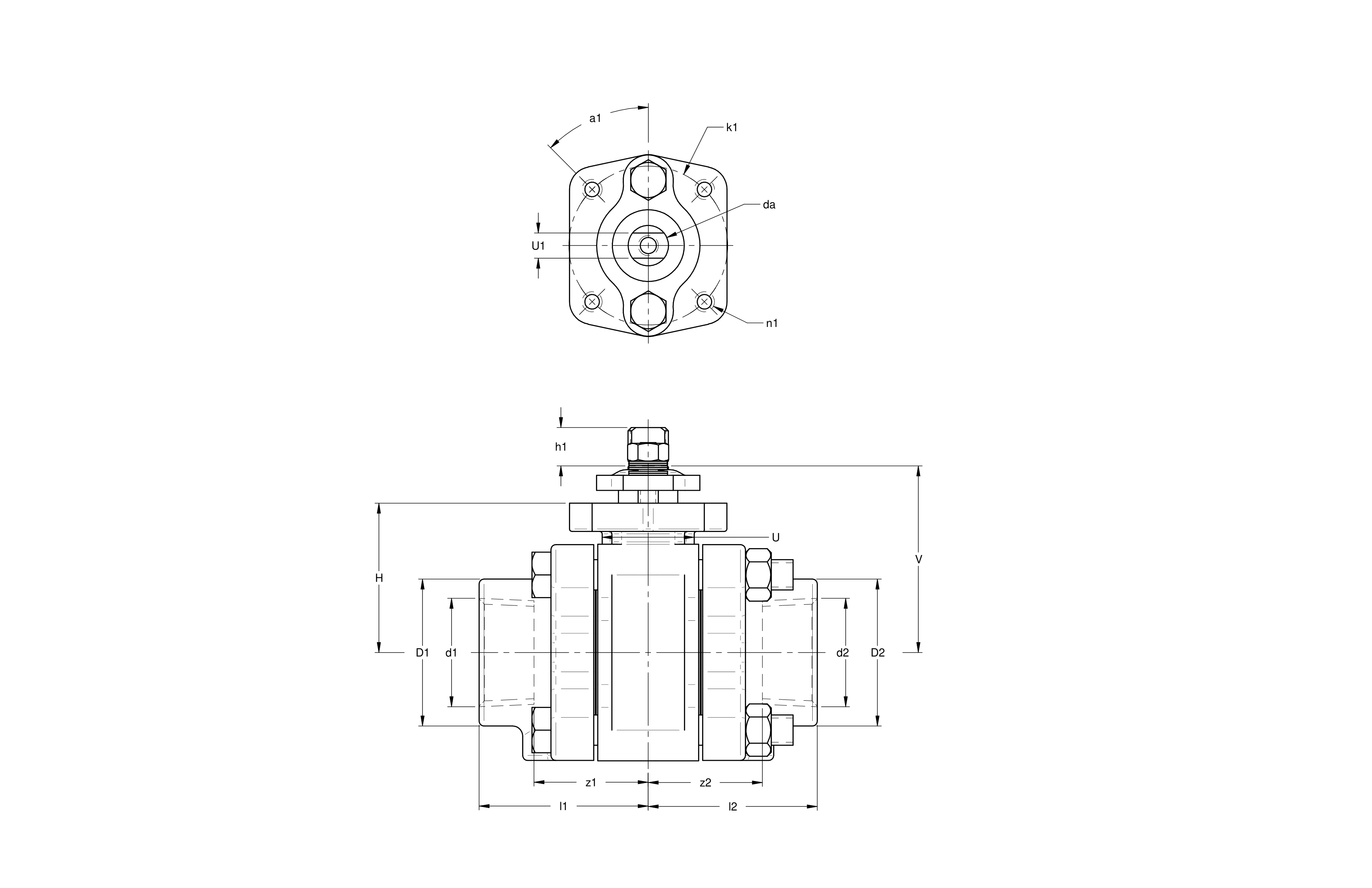

| d1 | 0.84 |
| l1 | 1.40 |
| z1 | 0.87 |
| d2 | 0.84 |
| l2 | 1.40 |
| z2 | 0.87 |
| h1 | 0.24 |
| V | 1.87 |
| U | 0.94 |
| D1 | 1.25 |
Specifications
| article | Apollo 83B Series 3-piece carbon steel full port class 600 control valve, graphite packing, actuated, 1/16" slot (2 x FNPT) |
|---|---|
| article number with gtin | 83B14X2477S3 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1/2" |
| color | black |
| materials | steel (ASTM A216 WCB) |
| shape | straight |
| connection type | FPT - female thread conical (NPT) |
| product group | valves (ball valves) |
| brand | Apollo |
| series | 83B Series Ball Valves |
