Attributes
| Group Code | 83B24X0415TR |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-83b-series-ball-valves |
| Approvals | CRN |
| Solutions | utility, industry |
Description

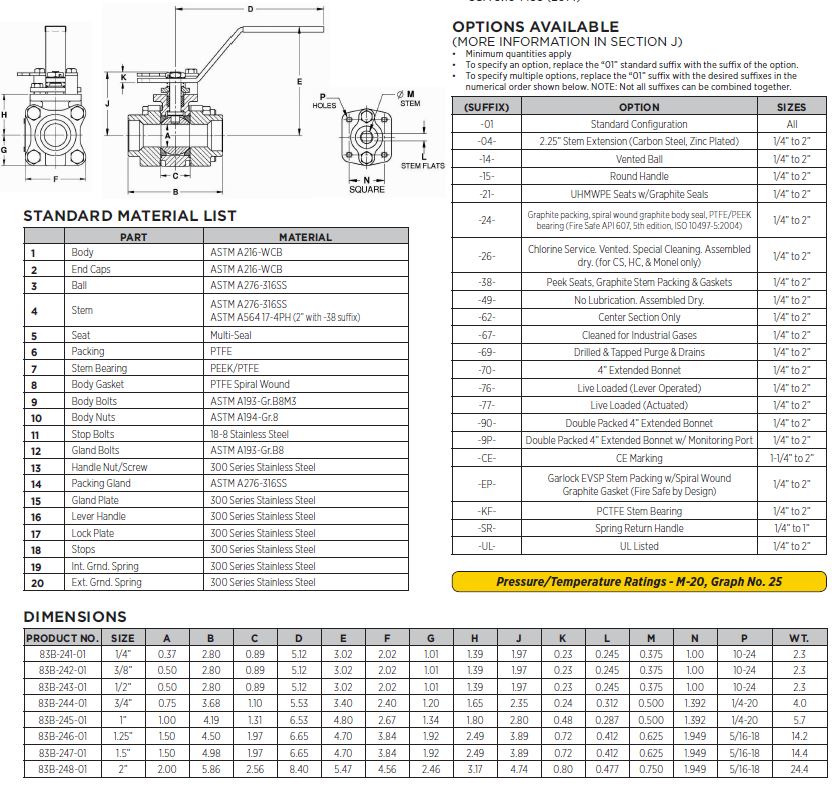

The 83B-240 Full Port Class 600 3 Piece Carbon Steel Ball Valve is constructed in a robust three-piece configuration, with enclosed fasteners for added durability. The swing-out center section and full port facilitate maximum fluid flow. The valve is furnished with a stainless-steel trim and hardware, enhancing its resistance to wear and corrosion.
• 3-piece construction w/ enclosed fasteners
• full port
• stainless steel trim & hardware
• swing-out center section
• pressure balanced solid ball
• compression controlled spiral wound gaskets
• anti-blowout one piece bottom entry stem
• statically grounded ball, stem, & body
• two-position locking
• adjustable multi-piece PTFE “V” style packing
• fully machined ISO5211 mounting
• cast bosses on the center-section and end caps for bleed & drain ports
• fire safe to API607 (requires -24 suffix)
• vacuum service to 29 in of Hg.
• CE Marking, 1-1/4”and larger (add “-CE” suffix)
• 250 psi saturated steam
• CGA 3.16-M88(2014)
Variations (4)
83B2430415TR
| size | - |
|---|---|
| dimensions | - |
| weight | 2.3 lb |
| packaging | - |
83B2440415TR
| size | - |
|---|---|
| dimensions | - |
| weight | 4.4 lb |
| packaging | - |
83B2450415TR
| size | - |
|---|---|
| dimensions | - |
| weight | 5.7 lb |
| packaging | - |
83B2470415TR
| size | - |
|---|---|
| dimensions | - |
| weight | 14.38 lb |
| packaging | - |
Specifications
| article | Apollo Full Port Class 600 3 Piece Carbon Steel Ball Valve with 2-1/4" Stem Extension, Stainless Steel Locking Round Handle, Hydrostatic Tested with Certification & MTR (2 x Socket Weld) |
|---|---|
| article number with gtin | 83B24X0415TR |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 14.38 lb |
| materials | steel |
| connection type | weld |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| brand | Apollo |
| series | 83B Series Ball Valves |
| product type | 83B2400415TR |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Steel","Connection 1":"Welded end","Connection 2":"Welded end","With filter":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","Housing construction":"3-part","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
