Attributes
| Group Code | 77C20XULA |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-77c-series-ball-valves |
| Applications | heating, cooling, steam, vacuum |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), CRN, Made in USA, UL |
| Solutions | utility, industry |
Description
The Apollo 77C-UL-A “Contractor Grade” Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a “Solid Ball” design that delivers true full-port flow performance. Cast and machined in Apollo’s South Carolina manufacturing plants using proven ASTM materials. UL listed for fire protection trim and drain service.
- RPTFE Seats & Seals
- Blowout-Proof Stem Design
- Adjustable Stem Packing
- Full-Port "Solid Ball" Design
- (-01) Lever Handle Design
- 100% Factory Tested
- Made in USA

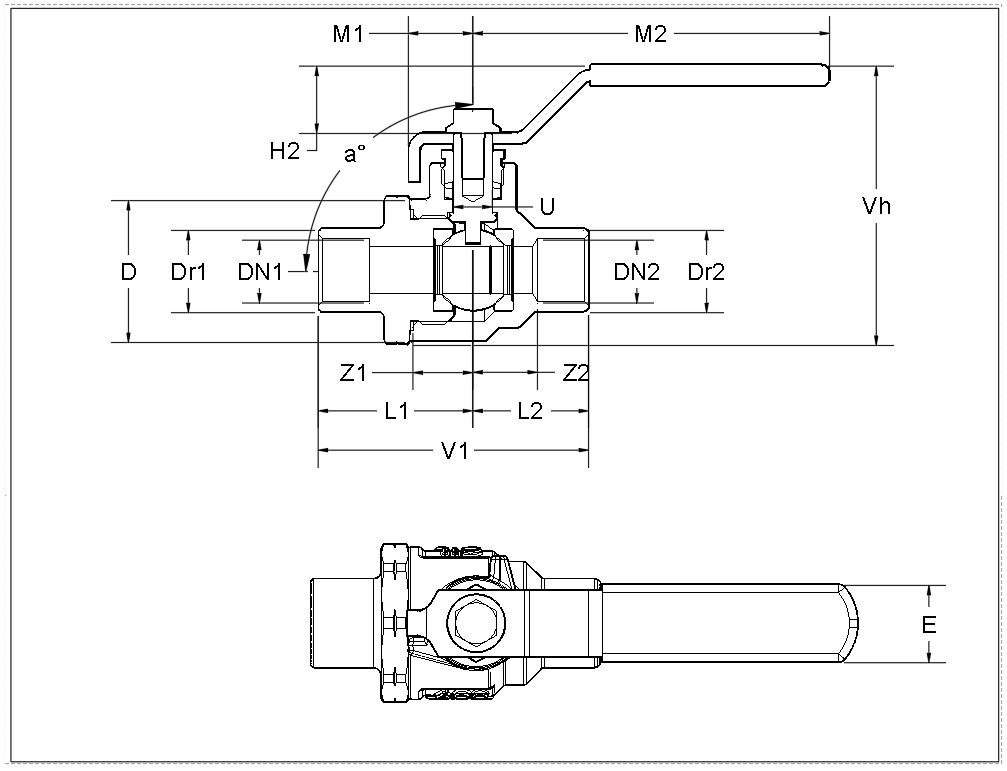

Variations (5)
77C204ULA
| size | 3/4" |
|---|---|
| dimensions | 5.55x1.59x2.71 " |
| weight | 0.91 lb |
| packaging | Carton (1 pce) |
| d1 | 0.88 |
| DN1 | - |
| l1 | 1.72 |
| z1 | 0.97 |
| d2 | 0.88 |
| DN2 | - |
| l2 | 1.47 |
| z2 | 0.72 |
| M1 | 0.55 |
| M2 | 3.86 |
| E | 0.70 |
| Y | 0.66 |
| V | 1.25 |
| U | 0.69 |
| D1 | 1.06 |
77C205ULA
| size | 1" |
|---|---|
| dimensions | 5.55x1.59x2.71 " |
| weight | 1.51 lb |
| packaging | Carton (1 pce) |
| d1 | 1.13 |
| DN1 | - |
| l1 | 2.05 |
| z1 | 1.14 |
| d2 | 1.13 |
| DN2 | - |
| l2 | 1.75 |
| z2 | 0.84 |
| M1 | 0.67 |
| M2 | 4.76 |
| E | 0.83 |
| Y | 0.68 |
| V | 1.56 |
| U | 0.87 |
| D1 | 1.33 |
77C206ULA
| size | 1-1/4" |
|---|---|
| dimensions | 5.55x1.59x2.71 " |
| weight | 3.86 lb |
| packaging | Carton (1 pce) |
| d1 | 1.38 |
| DN1 | - |
| l1 | 2.22 |
| z1 | 1.25 |
| d2 | 1.38 |
| DN2 | - |
| l2 | 1.99 |
| z2 | 1.02 |
| M1 | 0.67 |
| M2 | 4.76 |
| E | 0.83 |
| Y | 0.68 |
| V | 1.78 |
| U | 0.93 |
| D1 | 1.60 |
77C207ULA
| size | 1-1/2" |
|---|---|
| dimensions | 5.55x1.59x2.71 " |
| weight | 5.9 lb |
| packaging | Carton (1 pce) |
| d1 | 1.63 |
| DN1 | - |
| l1 | 2.53 |
| z1 | 1.44 |
| d2 | 1.63 |
| DN2 | - |
| l2 | 2.37 |
| z2 | 1.28 |
| M1 | 0.98 |
| M2 | 5.40 |
| E | 1.06 |
| Y | 0.70 |
| V | 2.19 |
| U | 1.18 |
| D1 | 1.88 |
77C208ULA
| size | 2" |
|---|---|
| dimensions | 5.55x1.59x2.71 " |
| weight | 7.5 lb |
| packaging | Carton (1 pce) |
| d1 | 2.13 |
| DN1 | - |
| l1 | 3.15 |
| z1 | 1.81 |
| d2 | 2.13 |
| DN2 | - |
| l2 | 2.91 |
| z2 | 1.57 |
| M1 | 1.00 |
| M2 | 7.75 |
| E | 1.12 |
| Y | 0.90 |
| V | 2.77 |
| U | 1.31 |
| D1 | 2.37 |
Specifications
| article | Apollo Full Port Bronze Ball Valve for UL Fire Protection, Trim & Drain Service (2 x Solder) |
|---|---|
| article number with gtin | 77C20XULA |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 7.5 lb |
| dimensions | 5.55x1.59x2.71 " |
| color | yellow, bronze |
| materials | bronze (ASTM B584-C84400) |
| finishing | none |
| shape | straight |
| connection type | solder |
| sealing | PTFE |
| Bore | 50.8 mm (Yes) |
| max operating pressure liquid | 600 psi |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 77C Series Ball Valves |
| product type | 77C20XULA |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Bronze","Surface protection housing":"None","Material ball":"Brass","Material spindle":"Brass","Material primary spindle seal":"Polytetrafluoroethylene (PTFE)","Connection 1":"Soldered sleeve","With coupling connection 1":"No","Connection 2":"Soldered sleeve","With coupling connection 2":"No","Sealing":"Polytetrafluoroethylene (PTFE)","With non-return valve":"No","With filter":"No","With thermometer":"No","With insulation shell":"No","FM quality mark":"No","UL quality mark":"Yes","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","Housing construction":"2-part","Full bore":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
