Attributes
| Group Code | 9A10X04 |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-9a-series-ball-valves |
| Applications | heating, cooling, steam, compressed air |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
| Solutions | utility, industry |
Description
Apollo Valves Threaded, Unibody, Reduced Port, Bronze Ball Valve
- Static Grounding Devices
- Blowout-Proof Stem Design
- Reinforced Seats and Seals
- Adjustable Packing Gland
- One-Piece Bronze Body
- Compact
Variations (5)
9A10304
| size | 1/2" |
|---|---|
| dimensions | 7.72x3.15x4.50 " |
| weight | 0.97 lb |
| packaging | Carton (1 pce) |
9A10404
| size | 3/4" |
|---|---|
| dimensions | 7.72x3.15x4.50 " |
| weight | 1.34 lb |
| packaging | Carton (1 pce) |
9A10504
| size | 1" |
|---|---|
| dimensions | 7.72x3.15x4.50 " |
| weight | 2.08 lb |
| packaging | Carton (1 pce) |
9A10704
| size | 1-1/2" |
|---|---|
| dimensions | 7.72x3.15x4.50 " |
| weight | 4.4 lb |
| packaging | Carton (1 pce) |
9A10804
| size | 2" |
|---|---|
| dimensions | 7.72x3.15x4.50 " |
| weight | 6.4 lb |
| packaging | Carton (1 pce) |
Specifications
| article | Apollo Reduced Port Uni-Body Bronze Ball Valve with 2-1/4" Stem Extension (2 x FNPT) |
|---|---|
| article number with gtin | 9A10X04 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 6.4 lb |
| dimensions | 7.72x3.15x4.50 " |
| materials | bronze (ASTM B584-C84400) |
| shape | straight |
| connection type | FPT - female thread conical (NPT) |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 9A Series Ball Valves |
| product type | 9A10X04 |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Bronze","Connection 1":"Internal thread conical (NPT)","Connection 2":"Internal thread conical (NPT)","With filter":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","Housing construction":"1-part","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
PDF Documents

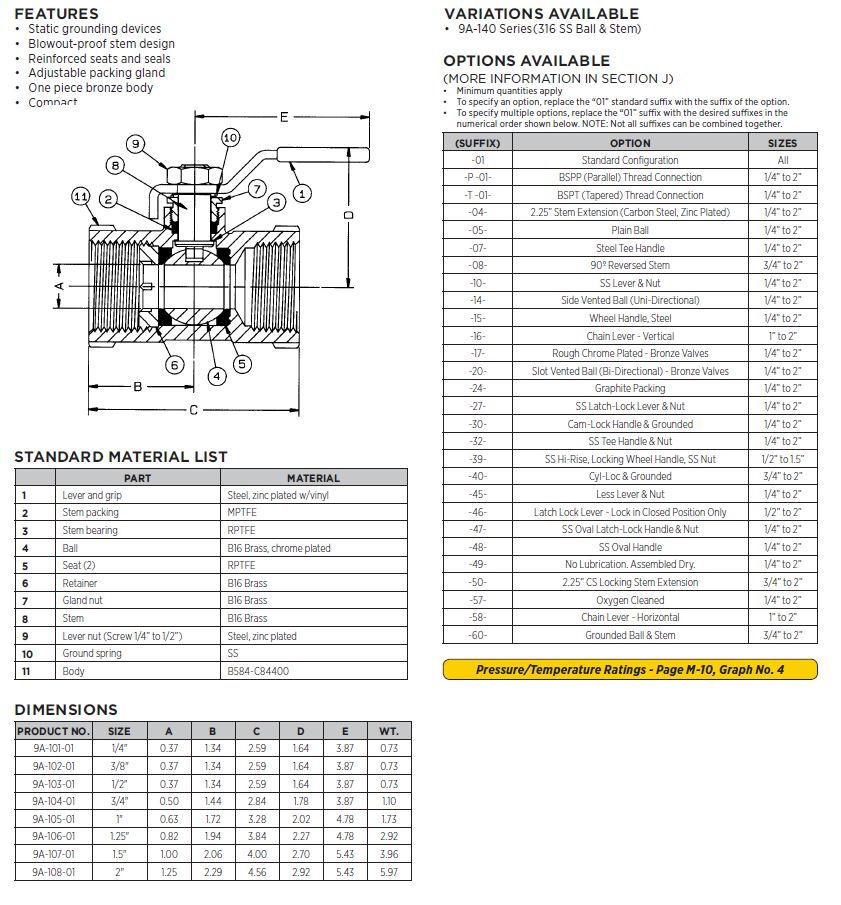

[Datasheet] 9A-100 Submittal Sheet
Open PDF
