Attributes
| Group Code | 83L34X01 |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-83l-series-ball-valves |
| Approvals | CRN, CSA B356 |
| Solutions | utility, industry |
Description
The 83L-340 Carbon Steel 3 Piece Full Port Low Temperature Class 600 Ball Valve sets new standards in durability and efficiency. Its 3-piece construction with enclosed fasteners, full port design, and swing-out center section, ensure top-notch fluid flow even in temperatures as low as -50°F (-46°C). Enhanced safety and functionality are achieved with the pressure balanced solid ball, compression controlled spiral wound gaskets, and the anti-blowout one piece bottom entry stem.
• 3-piece construction w/ enclosed fasteners
• full port
• stainless steel trim & hardware
• swing-out center section
• pressure balanced solid ball
• compression controlled spiral wound gaskets
• anti-blowout one piece bottom entry stem
• statically grounded ball, stem, & body
• rated to -50°F(-46°C)
• 250 psi saturated steam
• CE Marking, 1-1/2” and larger (add “-CE” suffix)
• two-position locking
• adjustable multi-piece PTFE “V” style packing
• fully machined ISO5211 mounting
• cast bosses on the center-section and end caps for bleed & drain ports
• fire safe to API607 (requires -24 suffix)
• vacuum service to 29 in of Hg.
Variations (1)
83L34801
| size | 2" |
|---|---|

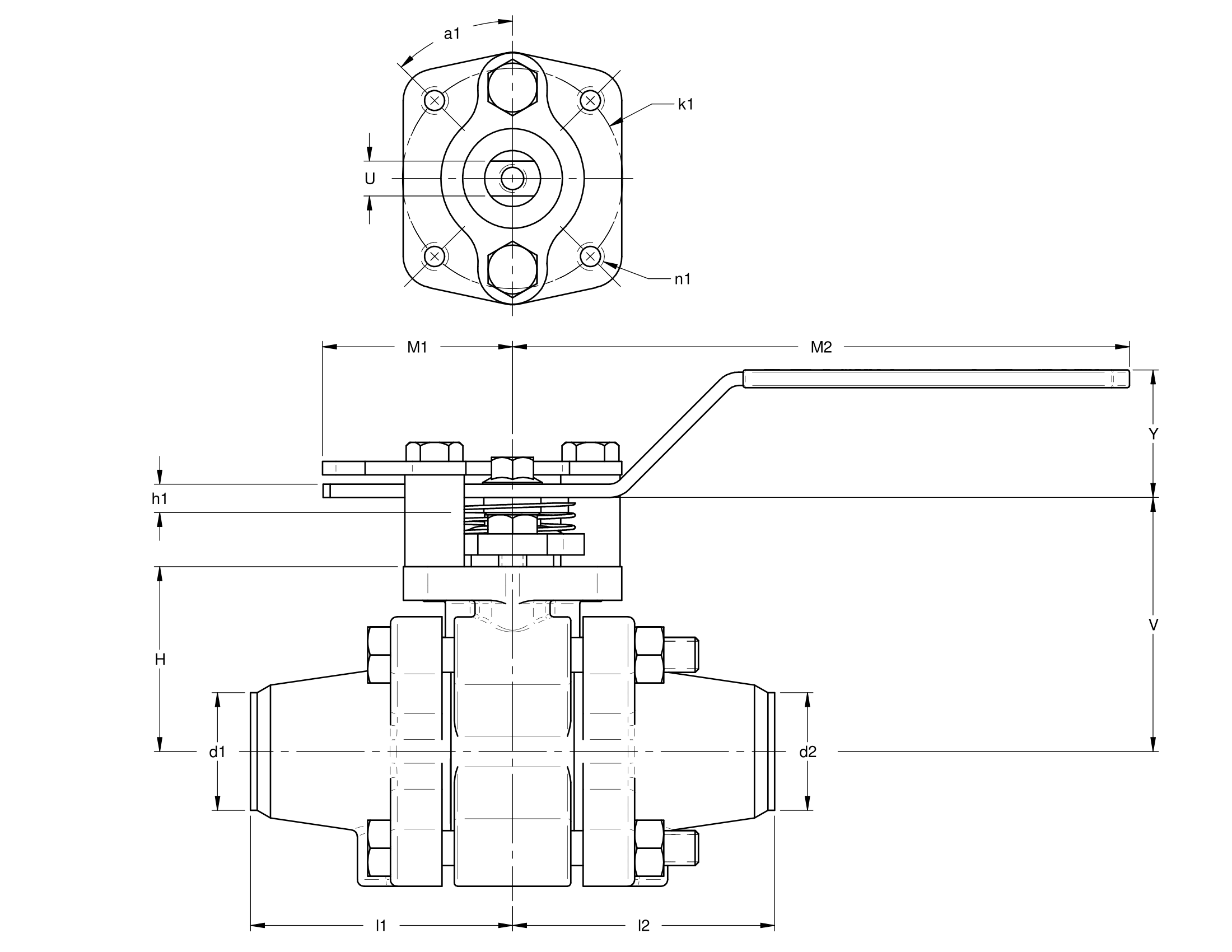

| dimensions | 8.63x2.67x6.14 " |
| weight | 27.6 lb |
| packaging | Carton (1 pce) |
Specifications
| article | Apollo Carbon Steel 3 Piece Full Port Low Temperature Class 600 Ball Valve with Standard Configuation (2 x Sch 5 Butt Weld) |
|---|---|
| article number with gtin | 83L34X01 (00670750431050) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 2" |
| weight | 27.6 lb |
| dimensions | 8.63x2.67x6.14 " |
| materials | steel (ASTM A352 LCC) |
| shape | straight |
| connection type | butt Weld |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 83L Series Ball Valves |
| product type | 83L34X01 |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Steel","With filter":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","Housing construction":"3-part","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
