Attributes
| Group Code | 83R14X62 |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-83r-series-ball-valves |
| Applications | heating, cooling, steam, compressed air, vacuum |
| Solutions | utility, industry |
Description
The 83R-140 Carbon Steel 3 Piece Full Port Ball Valve with Actuator Ready ISO Mounting Pad is designed with meticulous precision for optimum performance. The ISO 5211mounting pad and blowout-proof stem design contribute to its reliability and safety. With investment cast components, adjustable packing gland, and reinforced seats and seals, it offers remarkable durability and ease of maintenance. Furthermore, its full port configuration assures efficient fluid flow.
• multi-piece packing set
• ISO 5211 mounting pad
• blowout-proof stem design
• in-line repairable
• adjustable packing gland
• investment cast components
• reinforced seats and seals
• full port configuration
Variations (1)

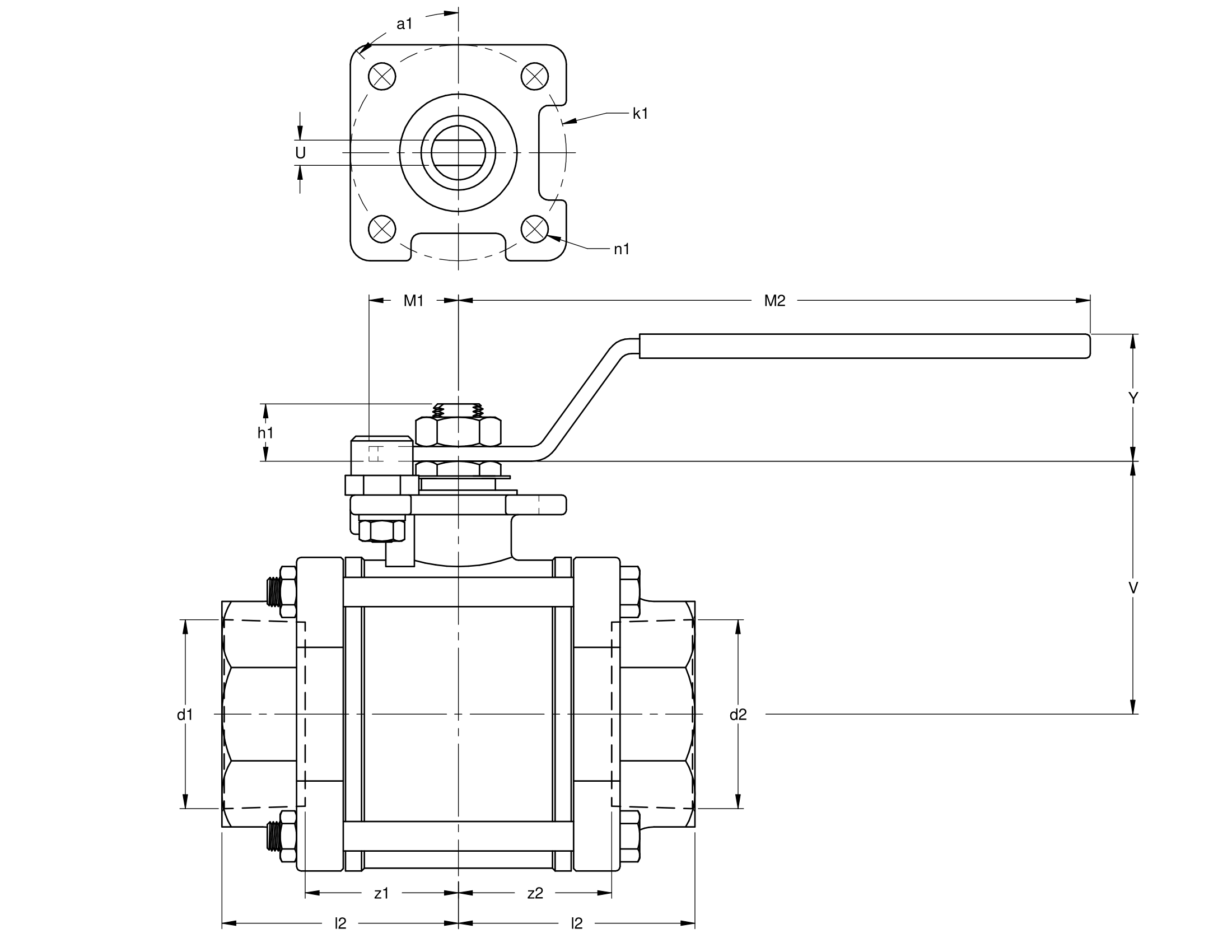

83R14862
| size | 2" |
|---|---|
| dimensions | 10.65x2.67x5.69 " |
| weight | 7.5 lb |
| packaging | Carton (1 pce) |
| d1 | 2.38 |
| DN1 | - |
| DN2 | - |
Specifications
| article | Apollo Carbon Steel 3 Piece Full Port Ball Valve with Actuator Ready ISO Mounting Pad, Center Section Only (2 x FNPT) |
|---|---|
| article number with gtin | 83R14X62 (00670750220746) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 2" |
| weight | 7.5 lb |
| dimensions | 10.65x2.67x5.69 " |
| color | black |
| materials | steel (ASTM A216 WCB) |
| finishing | none |
| shape | straight |
| connection type | FPT - female thread conical (NPT) |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 83R Series Ball Valves |
| product type | 83R14X62 |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Steel","Surface protection housing":"None","Material ball":"Stainless steel","Material spindle":"Stainless steel","Nominal diameter connection 1":"DN 50","Outer pipe diameter connection 1":"60.33mm","Outer pipe diameter connection 1 (imperial)":"2.38\"","Connection 1":"Internal thread conical (NPT)","Nominal diameter connection 2":"DN 50","Connection 2":"Internal thread conical (NPT)","With filter":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","Housing construction":"3-part","Full bore":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
PDF Documents
[Datasheet] 83R-100 Submittal Sheet
Open PDF
