Attributes
| Group Code | 86VESE |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-86v-series-smartpress-ball-valves |
| Applications | potable water, heating, cooling, compressed air |
| Approvals | IAPMO/ANSI Z1157, NSF/ANSI 372, NSF/ANSI 61 |
| Solutions | utility, industry |
Description
Introducing the 86VE 3-Piece Ball Valve, a high-performance valve with a robust stainless steel AISI 316 construction. This versatile and durable valve is designed with SmartPress stainless press connections and a compact lay-length for easy installation. This variation features a 2-1/4" stem extension.
Key features of the 86VE 3-Piece Ball Valve include:
• 3-Piece, Easy to Maintain Design: In-line repairable
• EPDM Sealing Element: Patented for superior performance
• Visu-control® Foil (VCF): Enhanced visual inspection
• Stainless Steel AISI 316: Lasting durability
• 100% Full Port: Optimized flow performance
• Max Pressure 500 psi (34.5 bar): High-pressure compatibility
• Operating Temperature Range: -40°F to 275°F
• Leak Before Press-function: Reliable and secure connections
• PTFE Adjustable Packing: Tight seal and extended lifespan
• ISO 5211 Actuator Mounting Pad: Simplified actuator installation
Variations (5)

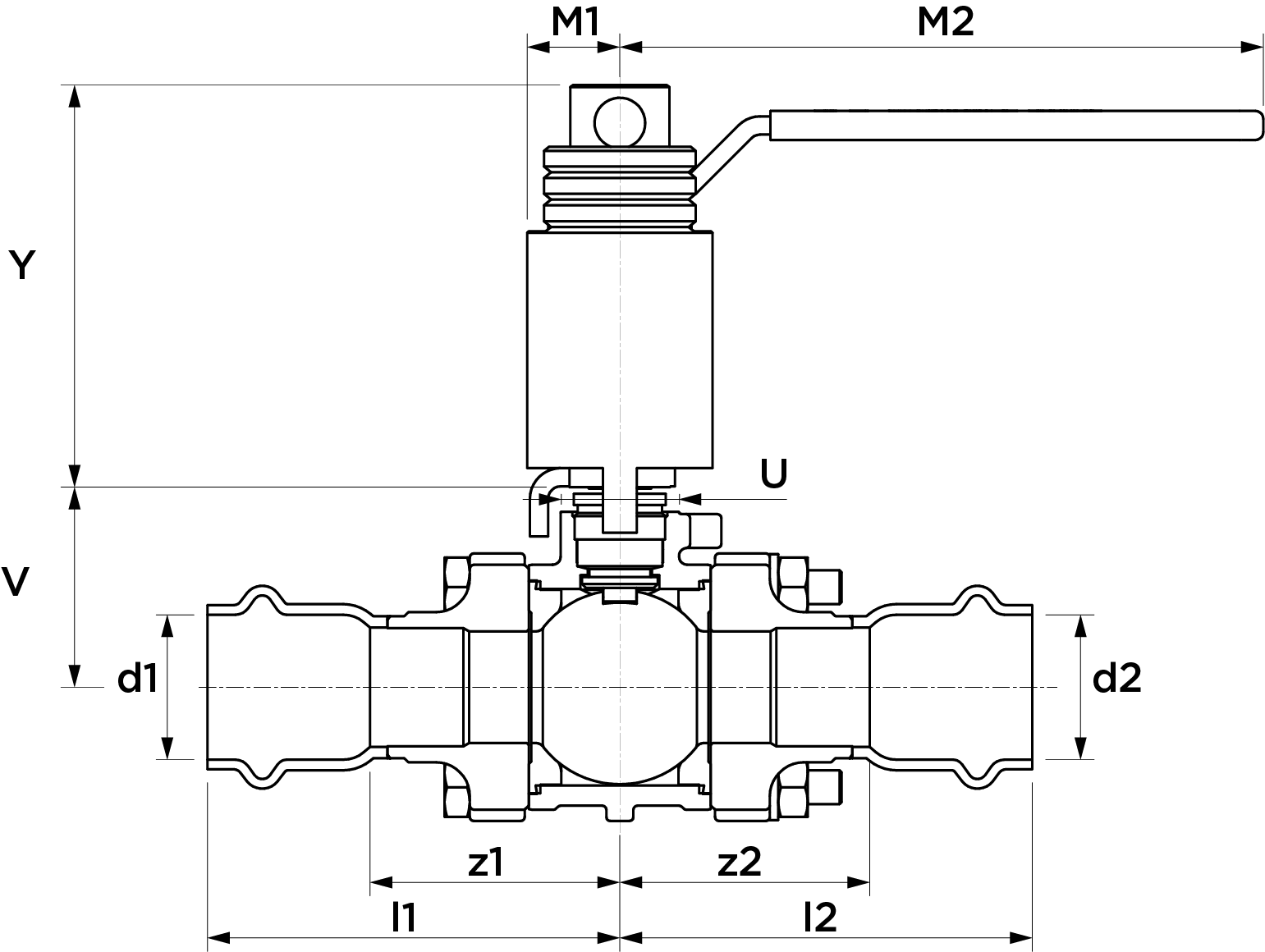

123457456
| size | 1/2" |
|---|---|
| dimensions | 7.48x1.81x5.20 " |
| weight | 2.3 lb |
| packaging | Carton (3 pce) |
| d1 | 0.86 |
| DN1 | - |
| l1 | 2.74 |
| z1 | 1.67 |
| d2 | 0.86 |
| DN2 | - |
| l2 | 2.74 |
| z2 | 1.67 |
| M1 | 0.67 |
| M2 | 4.75 |
| E | 0.75 |
| Y | 2.77 |
| V | 1.30 |
| U | 0.87 |
| D1 | 1.30 |
| a | - |
123457457
| size | 3/4" |
|---|---|
| dimensions | 7.80x1.97x5.43 " |
| weight | 2.91 lb |
| packaging | Carton (3 pce) |
| d1 | 1.05 |
| DN1 | - |
| l1 | 3.05 |
| z1 | 1.95 |
| d2 | 1.05 |
| DN2 | - |
| l2 | 3.05 |
| z2 | 1.95 |
| M1 | 0.67 |
| M2 | 4.75 |
| E | 0.75 |
| Y | 2.77 |
| V | 1.49 |
| U | 0.88 |
| D1 | 1.51 |
| a | - |
123457458
| size | 1" |
|---|---|
| dimensions | 8.82x2.20x6.06 " |
| weight | 4.43 lb |
| packaging | Carton (3 pce) |
| d1 | 1.32 |
| DN1 | - |
| l1 | 3.42 |
| z1 | 2.18 |
| d2 | 1.32 |
| DN2 | - |
| l2 | 3.42 |
| z2 | 2.18 |
| M1 | 0.98 |
| M2 | 5.40 |
| E | 1.00 |
| Y | 2.75 |
| V | 1.95 |
| U | 1.31 |
| D1 | 1.88 |
| a | - |
123457459
| size | 1-1/2" |
|---|---|
| dimensions | 12.01x3.07x7.13 " |
| weight | 8.91 lb |
| packaging | Carton (1 pce) |
| d1 | 1.90 |
| DN1 | - |
| l1 | 4.28 |
| z1 | 2.88 |
| d2 | 1.90 |
| DN2 | - |
| l2 | 4.28 |
| z2 | 2.88 |
| M1 | 1.25 |
| M2 | 7.75 |
| E | 1.06 |
| Y | 3.01 |
| V | 2.45 |
| U | 1.37 |
| D1 | 2.55 |
| a | - |
123457460
| size | 2" |
|---|---|
| dimensions | 12.68x4.02x7.95 " |
| weight | 14.38 lb |
| packaging | Carton (1 pce) |
| d1 | 2.38 |
| DN1 | - |
| l1 | 4.94 |
| z1 | 3.31 |
| d2 | 2.38 |
| DN2 | - |
| l2 | 4.94 |
| z2 | 3.31 |
| M1 | 1.25 |
| M2 | 7.75 |
| E | 1.06 |
| Y | 3.01 |
| V | 2.79 |
| U | 1.37 |
| D1 | 3.15 |
| a | - |
Specifications
| article | Apollo SmartPress AISI316 3 Piece Ball Valve extended stem EPDM (2 x press) |
|---|---|
| article number with gtin | 86VESE |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 14.38 lb |
| dimensions | 12.68x4.02x7.95 " |
| color | silver |
| materials | stainless steel (Stainless steel 316L (1.4404)) |
| finishing | none |
| shape | straight |
| connection type | press (V) |
| sealing | EPDM |
| max operating pressure liquid | 500 psi |
| min. medium temperature | -31 °F |
| max medium temperature | 275 °F |
| peak medium temperature | 302 °F |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 86V Series SmartPress Ball Valves |
| product type | 86VESE |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Stainless steel","Material quality":"Stainless steel 316 (1.4401)","Surface protection housing":"None","Material ball":"Stainless steel","Material spindle":"Stainless steel","Material primary spindle seal":"Polytetrafluoroethylene (PTFE)","Connection 1":"Press sleeve","With coupling connection 1":"No","Contour code connection 1":"V","Connection 2":"Press sleeve","With coupling connection 2":"No","Contour code connection 2":"V","Sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With drain valve":"No","With drain possibility (connection)":"No","With non-return valve":"No","With filter":"No","With thermometer":"No","Model":"Straight","With insulation shell":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medium temperature (continuous)":"-35°C - 135°C","Medium temperature (continuous) (imperial)":"-31°F - 275°F","Medically clean":"No","Grease-free":"No","Operation":"Lever handle","Housing construction":"3-part","Full bore":"Yes","Angle of the valve":"","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
